(34) Initial length of the presser cylinder
(35) Initial length of the 2-step stroke cylinder
Standard Adjustment
Standard Adjustment
119.5±0.3mm

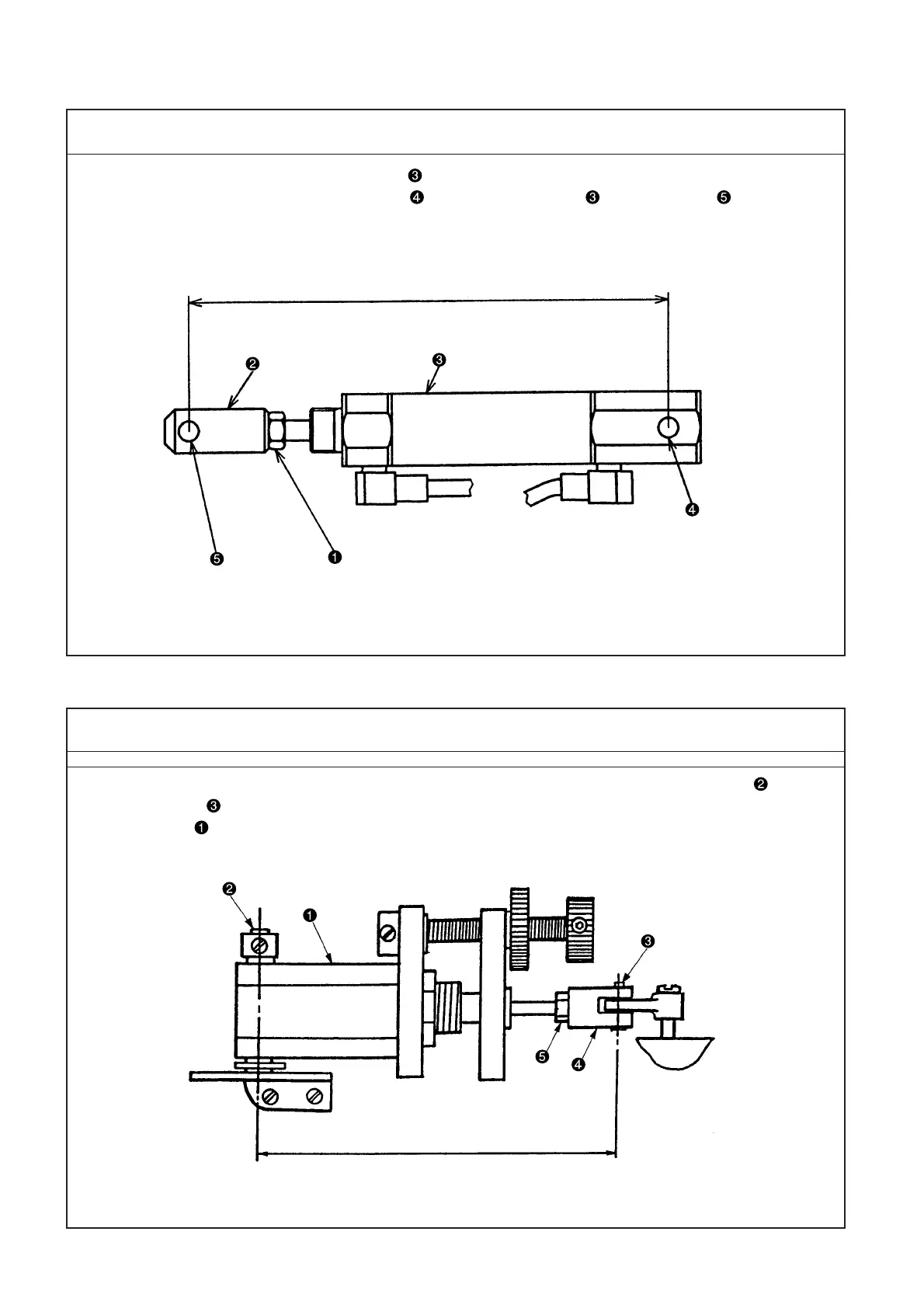

When the shaft section of the presser cylinder assumes a state of maximum suction, the center-to-center
distance is 119.5 ± 0.3mm between the ø5 hole of the presser cylinder and the ø5 hole of the cylinder
knuckle.
Adjust the center-to-center distance to 111.5 ± 0.3mm between the 2-step stroke fulcrum shaft and the
connecting shaft of the intermediate stop cylinder knuckle when the intermediate stop cylinder (2-step
stroke cylinder) assumes a state of maximum stroke.
111.5 ± 0.3 (at the maximum stroke)
Cylinder rod
Feed bracket
