JUKI AMS-221EN Series User Manual

– 179 –

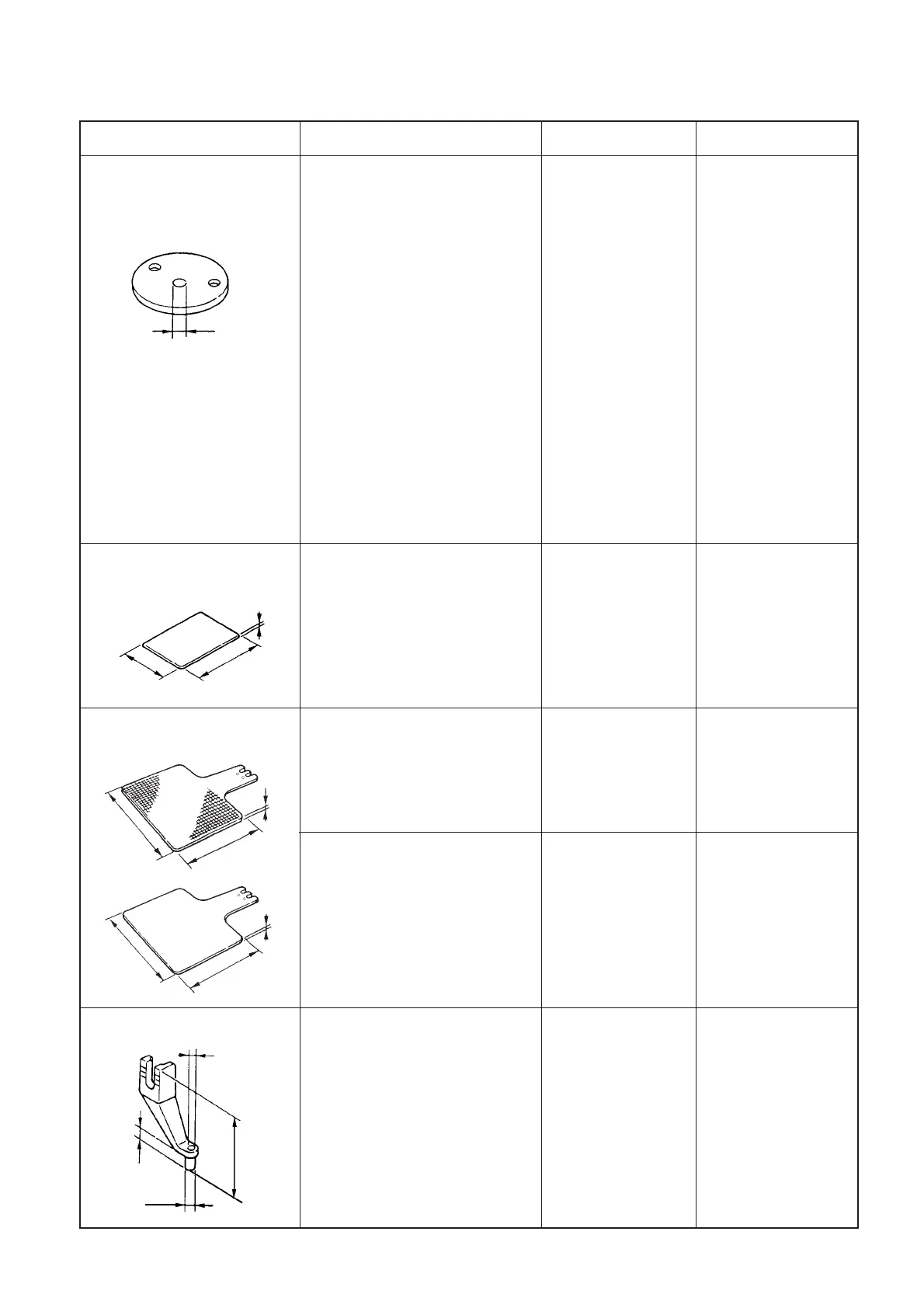

Name of parts Type Part No Size (mm)
1. needle hole guide Needle hole guide (A) for light- B242621000A øA=1.6
weight material (Specification S)
Needle hole guide (B) for medium- B242621000B øA=2.0
weight material (Specification H)
Needle hole guide (C) for knitwear B242621000C øA=1.6
(Option)
Needle hole guide (D) for heavy- B242621000D øA=2.4
weight material (Option)
Needle hole guide (F) for heavy- B242621000F øA=3.0
weight material (Option)
Needle hole guide (G) for heavy- B242621000G øA=3.0
weight material (Option) (With counter bore)
Needle hole guide (H) for heavy- B242621000H øA=3.0 (Eccentric)
weight material (Option)
Needle hole guide (H) (Counterme-
asures against stitch skipping)
Move the needle hole to have an
eccentricity of 0.5mm behind the
center in order to make the clearance
narrower in front of the needle and
wider behind it so that a loop can be
established easily.
2. Work clamp blank for Rubber sheet for work clamp B2591220000 A x B x t
preventing slipping 250 x 200 x1.5
Sponge sheet for work clamp B2564223C00 A x B x t
450 x 300 x 1.5
Work clamp material (A) B2587220000 A x B x t
380 x 240 x 1
Work clamp material (B) B2588220000 A x B x t
380 x 240 x 1.5
3. Feed plate blank for Feed plate blank with knurl 40052341 A x
B x t
processing AMS-221EN-2516 239 x 353 x 1.2
Feed plate blank without knurl 40052342 A x
B x t
(Thickness: 1.2mm) 239 x 353 x 1.2
AMS-221EN-2516
Feed plate blank without knurl 40052343 A x
B x t
(Thickness: 0.5mm) 239 x 353 x 0.5
AMS-221EN-2516
Feed plate blank without knurl 40053784 A x
B x t
(Thickness: 1.2mm) 279 x 428 x 1.2
AMS-221EN-3020
4. Intermediate presser Intermediate presser (A) 40023632(Standard) øA x øB x H x L
2.2 x 3.6 x 5.7 x 38.5
Intermediate presser (B) B1601210D0BA øA x øB x H x L
2.7 x 4.1 x 5.7 x 38.5
Intermediate presser (C) B1601210D0CA øA x øB x H x L
3.5 x 5.5 x 5.7 x 38.5
Intermediate presser (E) B1601210D0E øA x øB x H x L
1.6 x 2.6 x 5.7 x 37
Intermediate presser (F) B1601210D0FA øA x øB x H x L
2.2 x 3.6 x 8.7 x 41.5
9. Option list
øA
t
A
B
B
A
t
B
A
t
H
øB
L
øA
