JUKI AMS-221EN Series User Manual

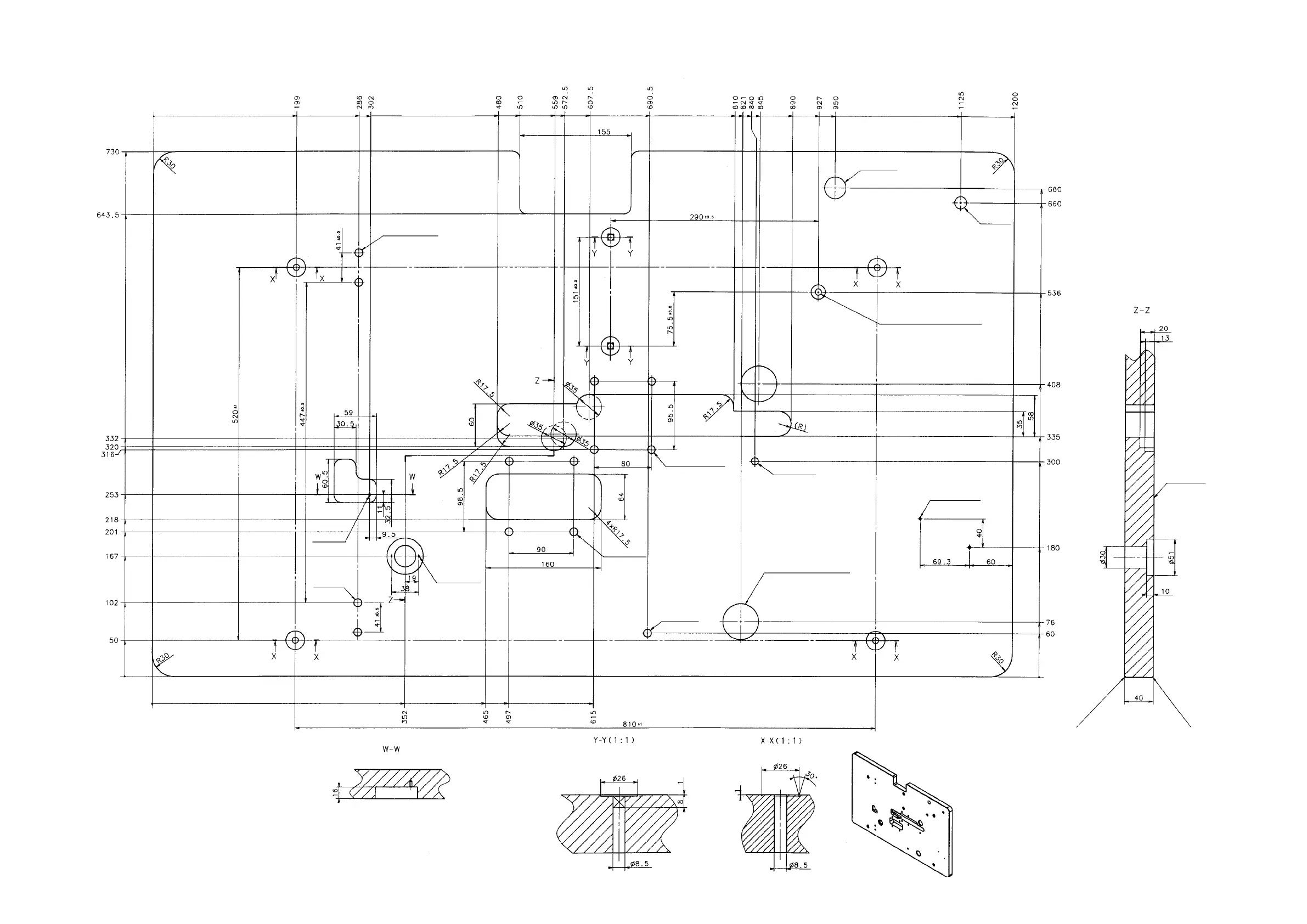

15. Drawing of the table
PART No. : 40090320
9 drill, 20depth conterbore
depth 17
R2 (all periphery)
– 248–
(2 pcs.)
Top of table
11 drill
2 x 11 drill
30 drill
4 x 11 drill
R2 (all periphery)
2 x 2 drill,
depth 14
3 drill,
depth 8
2 x 11 drill
17 drill
10 drill
2 x 50 depth
0
–0.5
+0.5
0
2 x 3.5 drill,
depth 10
(4 pcs.)
