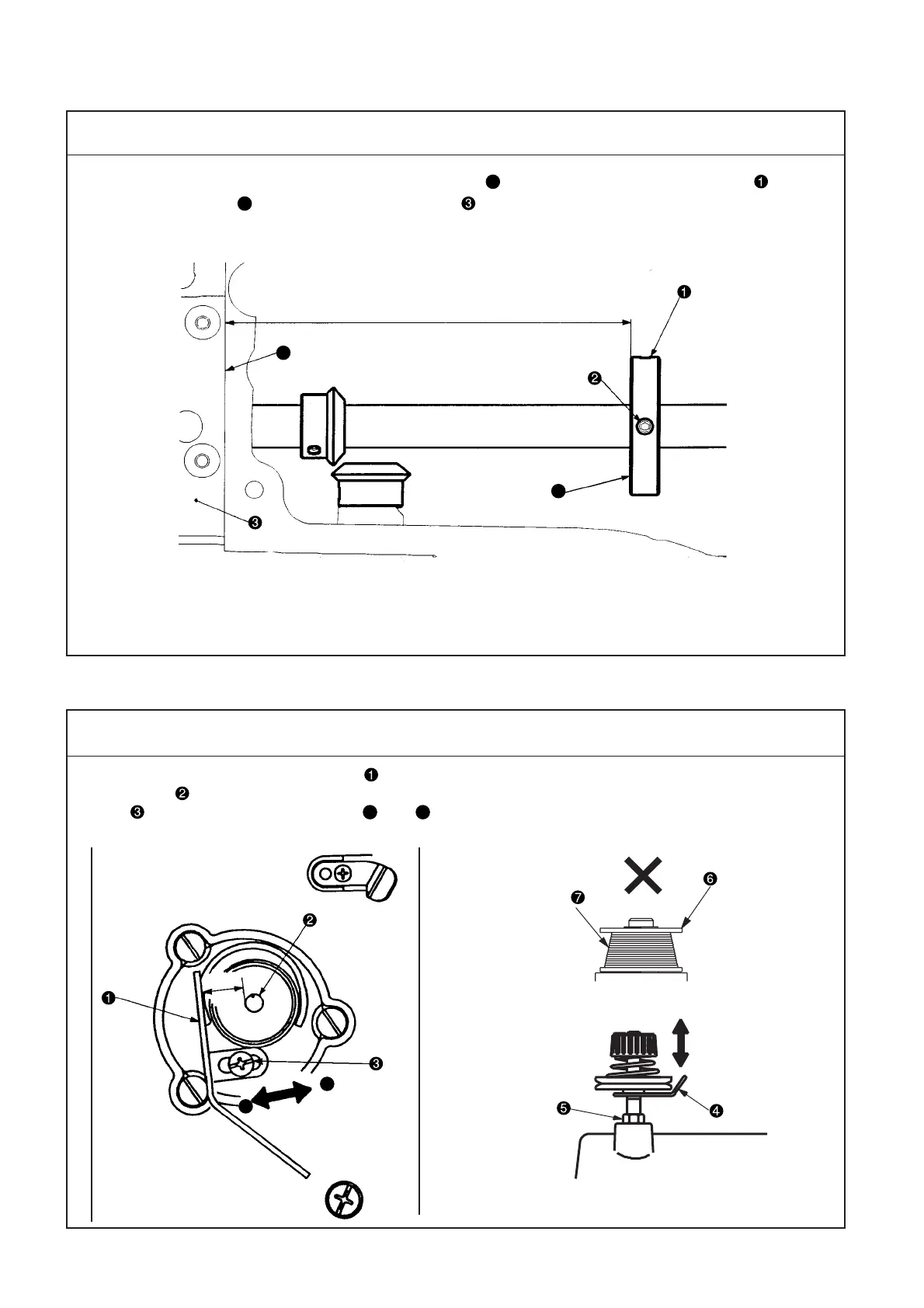

(41) Adjustment of the bobbin winder driving wheel position
The distance is 139.5 mm between the measuring plane
B
of the bobbin winder driving wheel and the
cover mounting plane
A
of the sewing machine frame .
(42) Adjusting the bobbin winder amount
The position of the bobbin winder lover is based on the standard that it is 14 mm apart from the bobbin
winder shaft . Try to perform bobbin winding actually and make fine adjustments of the bobbin lever set
screw in the directions of the arrows
A
and
B
so that the amount of thread winding becomes adequate
(recommended value: 80 to 90% of the bobbin.)
Standard Adjustment
Standard Adjustment
B
A
14mm
B
A
139.5mm
