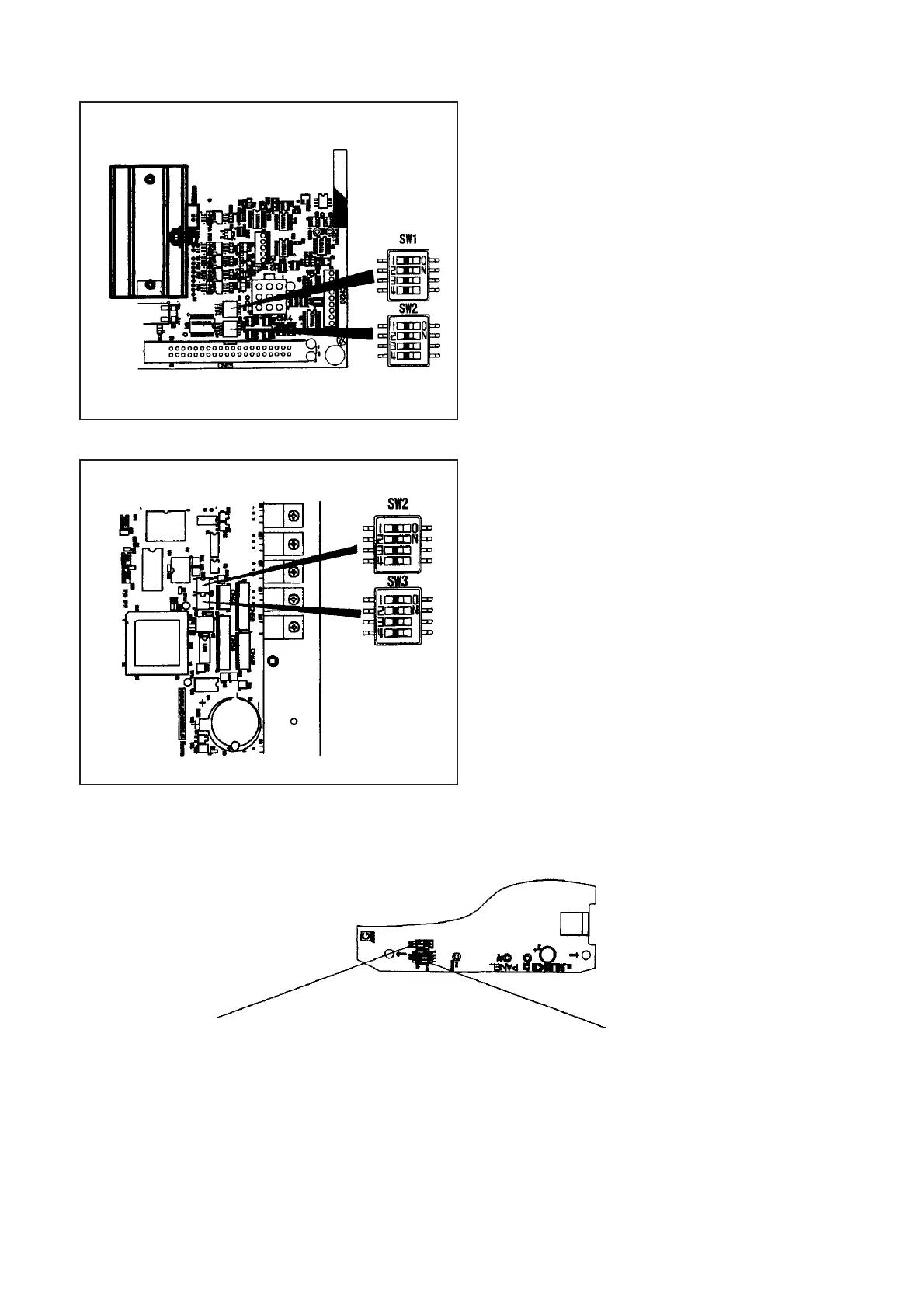

(2) Dipswitch setup
1. All dipswitches on the SDC board are turned OFF.
SDC board
MAIN board
2. All dipswitches on the MAIN board are turned OFF.
SW2: DIP SW2
<Normal setting state>
1-1:OFF Disabling switch for the
media detector switch
1-2:OFF (* Always used in OFF position)
SW1: DIPSW 1 (for production check)
<Normal setting state>
1-1: ON
1-2: ON
1-3: OFF
1-4: OFF
(Caution) 2. Do not change the settings normally.
IP-420 Panel Board
(Caution)1. If the panel cannot be used due to an
error of media cover open caused as a
result of media cover destruction or the
like, the media detector switch can be
disabled by turning this switch ON
