– 58 –

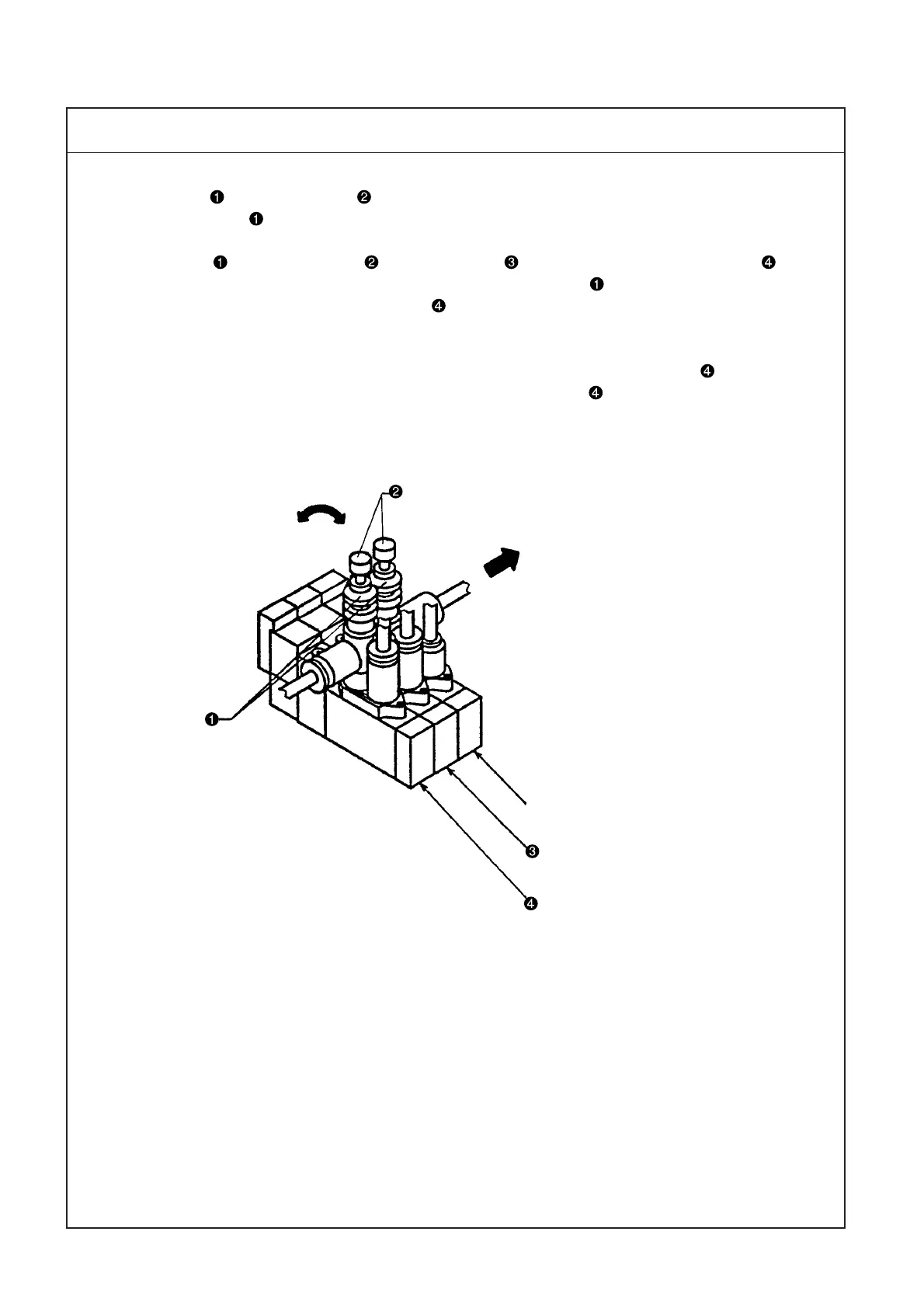

(37) Adjustment of the pressure reducer
Standard adjusting value of the pressure reducer for the presser cylinder (left)
1. Loosen the nut and turn the knob to adjust the air pressure so that it is reduced to 0.13 to 0.15Mpa.
Then, tighten the nut .
Standard adjusting value of the pressure reducer for the presser cylinder (right)
1. Loosen the nut and turn the knob to adjust so that for the presser cylinder (left) and for the
presser cylinder (right) can rise at the same time. Then, tighten the nut .
2. At that time, confirm that the pressure reducer of for the presser cylinder (right) has reduced the pressure
to 0.10 to 0.17Mpa. If the pressure seems to deviate from this range, check the torque at the working section
of the feed bracket and readjust this deviation.
(Caution) For Type S (specification for united presser), only the pressure reducer of for the presser
cylinder (right) is available. Adjust the pressure reducer of for the presser cylinder (right)
until its pressure is reduced to 0.13 to 0.15Mpa.
Standard Adjustment
0.13 to 0.15Mpa
For 2-step stroke cylinder
BA
To Next Page
