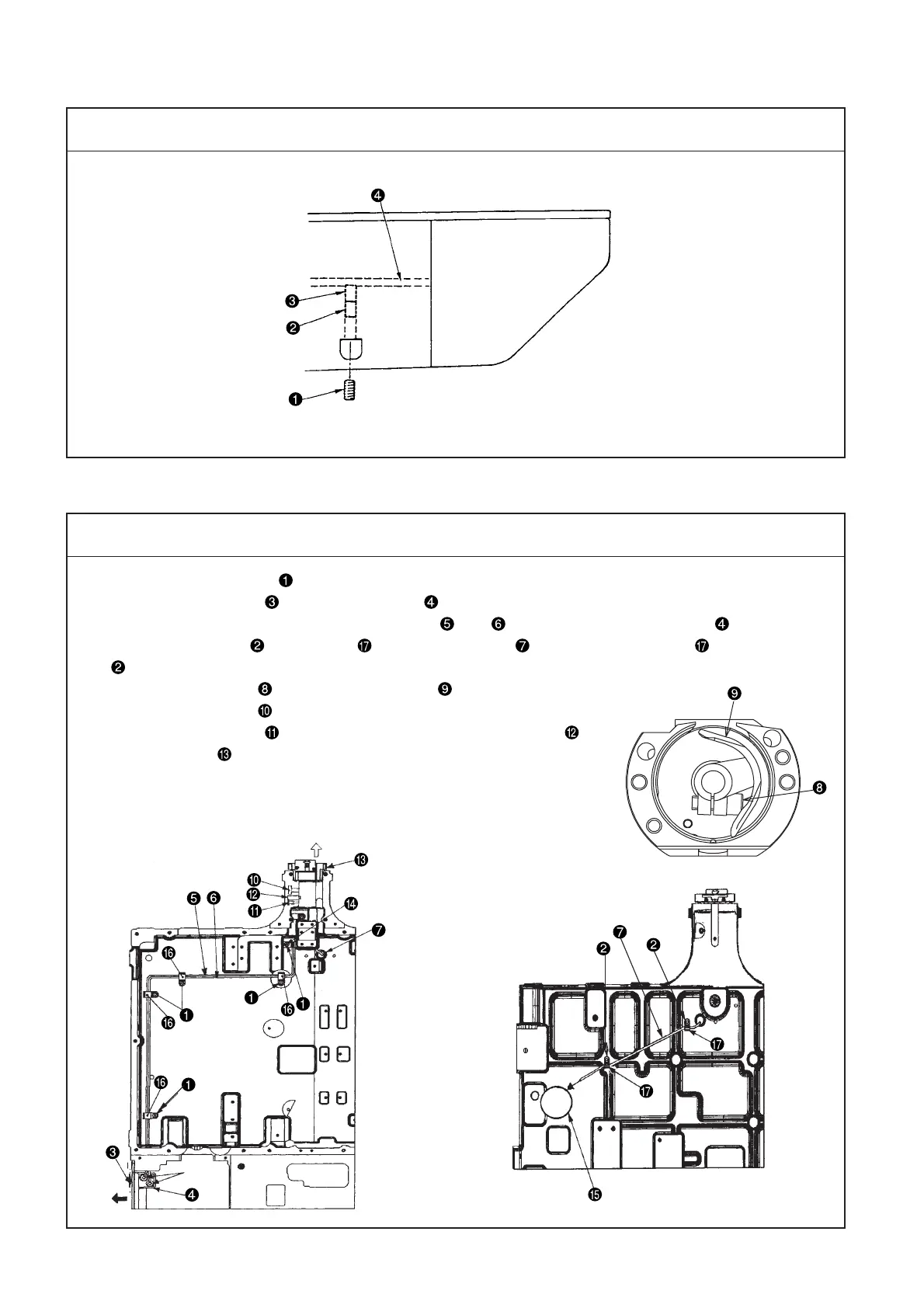

(15) Adjustment of hook oil amount
(16) Shuttle connection / disconnection and oil wick piping
1. Loosen the 5 setscrews .
2. Remove the setscrew and pull the oil tank in the direction of the arrow A.
3. Pull Part B upwards of the two lubrication pipes and . Take them out of the oil tank .
4. Loosen 2 setscrews of the clamp in the waste oil pipe , and remove the clamp and the setscrew
.
5. Loosen the setscrew and take out the driver .
6. Loosen the setscrew .
7. Remove the setscrew and pull out the shuttle race adjust shaft .
8. Pull the shuttle in the direction of the arrow C and take it out.
Standard Adjustment
Procedures of disassembling
Top surface
of the bed
Rear side of
the bed
A
B
C
