Specifications & Consumer information How to check the symbol on the charging label (For Europe)
How to check the symbol on the charging label (For Europe) (if
equipped)
Precautions for charging AC and Trickle charger (Portable charging
cable) (AC charging)
1. After opening the charging door, check the charging symbol at the bottom of the
warning label.
2. Check the charging connector symbol of the AC and Trickle charger cable.
3. After checking the alphabet letter of the charging symbol, proceed the charging
step.
* Refer to "Electric charging label symbol table (For Europe)" on page 9-8.
4. Risk of failure, fire, injury, etc. expected when using the charging connector with
unmatched symbol.
Precautions for DC charging (DC charging)
1. After opening the charging door, check the charging symbol at the bottom of the
warning label.
2. Check the charging connector symbol at the high speed charging station.
3. After checking the alphabet letter of the charging symbol, proceed the charging
step.
* Refer to "Electric charging label symbol table (For Europe)" on page 9-8.
4. Risk of failure, fire, injury, etc. expected when using the charging connector with
unmatched symbol.

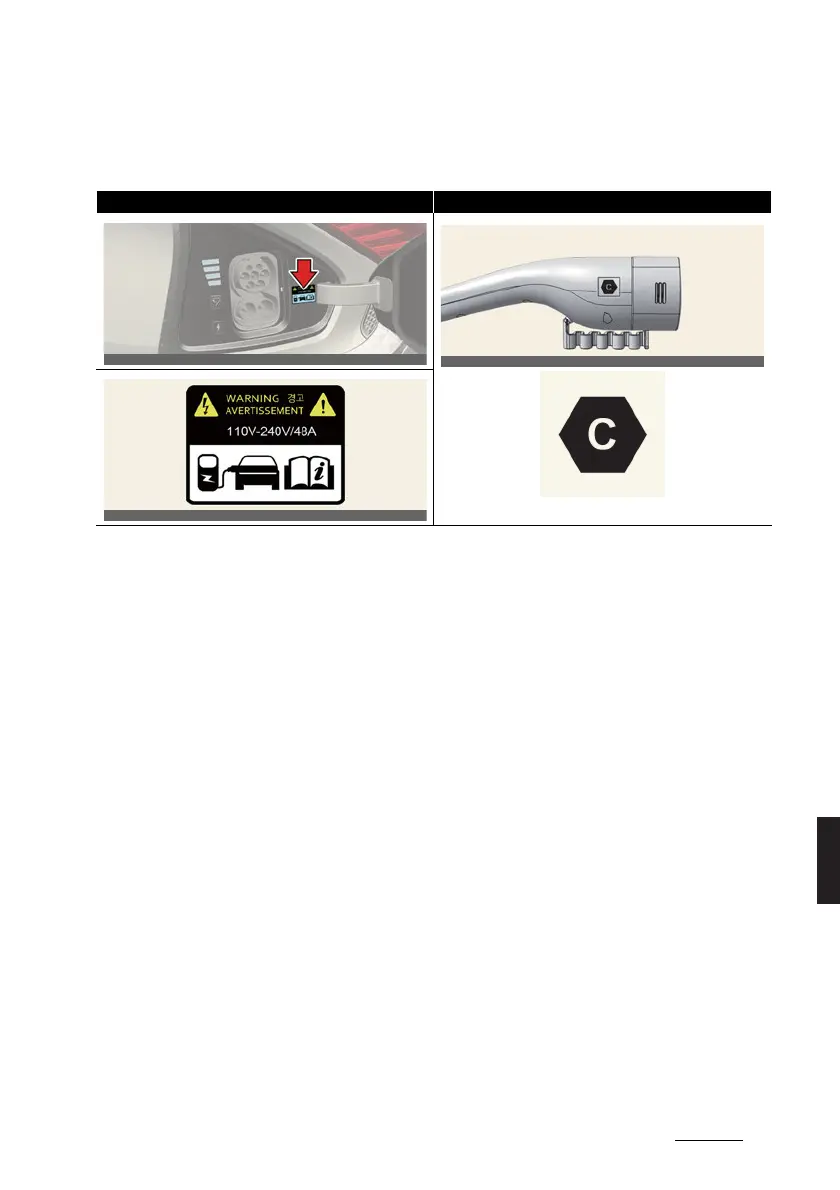

Vehicle charging INLET Charging connector OUTLET
<Symbol location and application example>
