Your vehicle at a glance Engine compartment

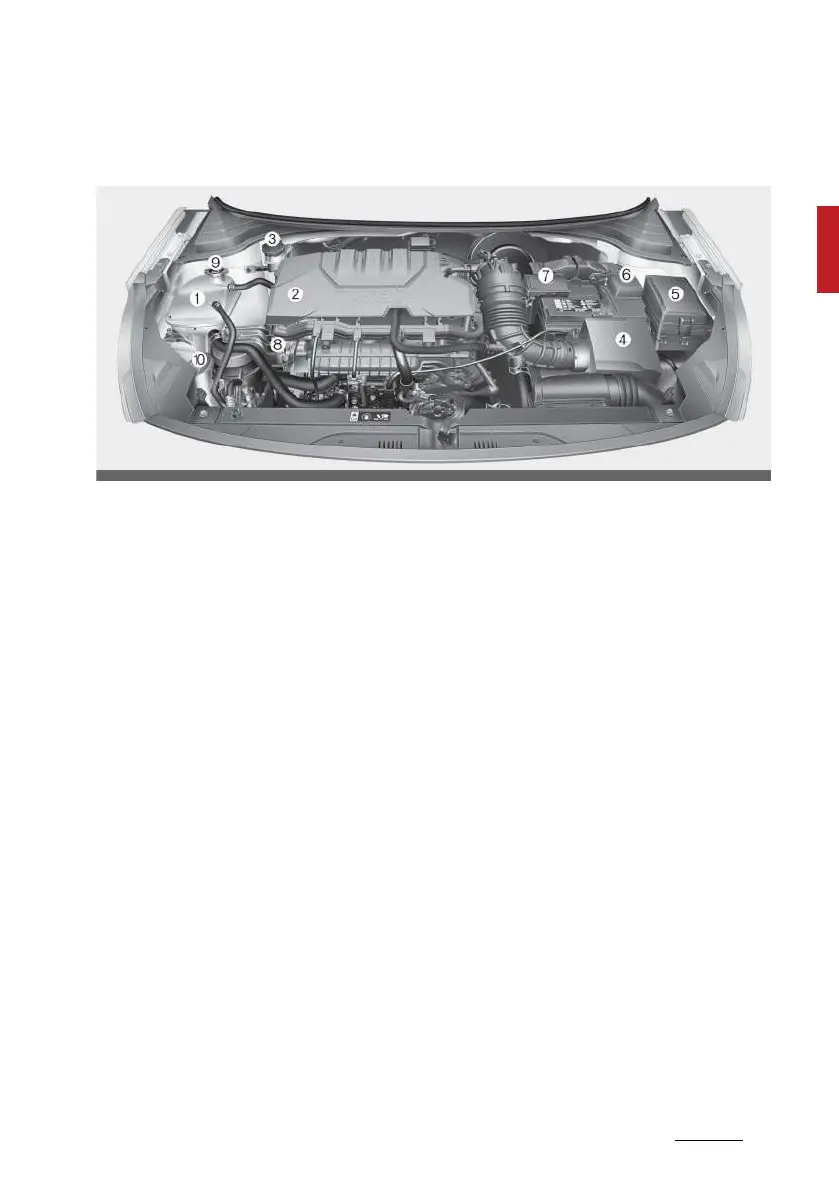

Engine compartment
Smartstream G1.0 T-GDi/Smartstream G1.0 T-GDi 48V HEV
* The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir 8-39
2. Engine oil filler cap 8-37
3. Brake / clutch fluid reservoir 8-43
4. Air cleaner 8-47
5. Fuse box 8-71
6. Negative battery terminal 8-53
7. Positive battery terminal 8-53
8. Engine oil dipstick 8-37
9. Radiator cap 8-39
10.Windscreen washer fluid reservoir 8-46
