99
8
8
Maintenance Light bulbs

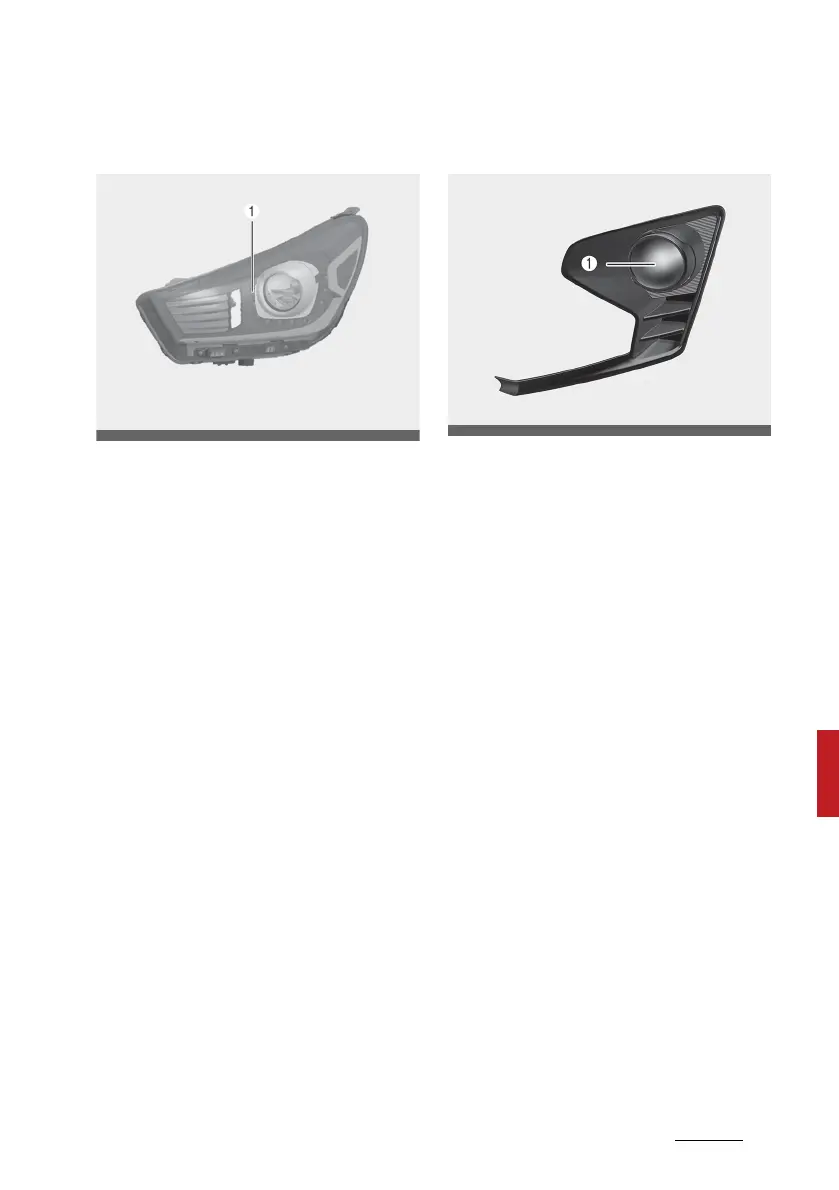

Position lamp + DRL (LED type) bulb
replacement
If the position lamp + DRL (LED) (1)
does not operate, have your vehicle
checked by a professional workshop.
Kia recommends to visit an
authorised Kia dealer/service part
-
ner.
The LED lamps cannot be replaced
as a single unit because it is an inte
-
grated unit. The LED lamps has to
be replaced with the unit.
A skilled technician should check or
repair the position lamp + DRL (LED),
for it may damage related parts of
the vehicle.
Daytime Running Lamp (Bulb type)
bulb replacement
1. Disconnect the negative (-) bat
-
tery terminal.
2. Disconnect the side after loosen
-
ing the front bumper sides screws
and clips.
3. Disconnect the daytime running
lamp connector.
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb from the socket
by pressing it in and rotating it
counter-clockwise until the tabs
on the bulb align with the slots in
the socket. Pull the bulb out of
the socket.
6. Insert a new bulb by inserting it
into the socket and rotating it
until it locks into place.
7. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
OYB076056
OYB070160L
