Maintenance Light bulbs
checked by a professional workshop.
Kia recommends to visit an
authorised Kia dealer/service part
-
ner.
The LED lamps cannot be replaced
as a single unit because it is an inte
-
grated unit. The LED lamps has to
be replaced with the unit.
A skilled technician should check or
repair the stop and tail lamp (LED),
for it may damage related parts of
the vehicle.

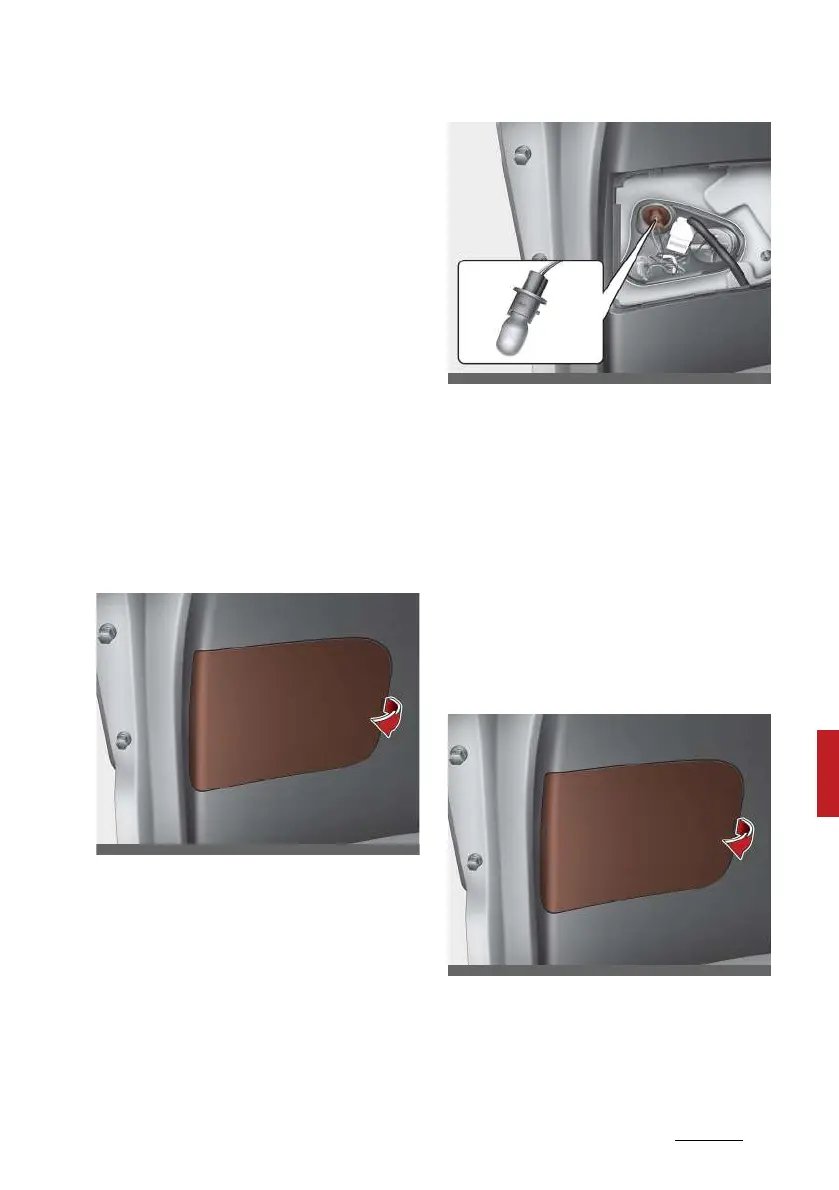

Back-up lamp (Bulb type) bulb
replacement
1. Open the tailgate.
2. Remove the service cover.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-
socket by pulling it out.
5. Insert a new bulb by inserting it
into the bulb-socket.
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assem
-
bly and turn the socket clockwise.
7. Install the service cover by putting
it into the service hole.
Tail lamp (inside) (Bulb type) bulb
replacement
1. Open the tailgate.
2. Remove the service cover.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
