Maintenance Light bulbs

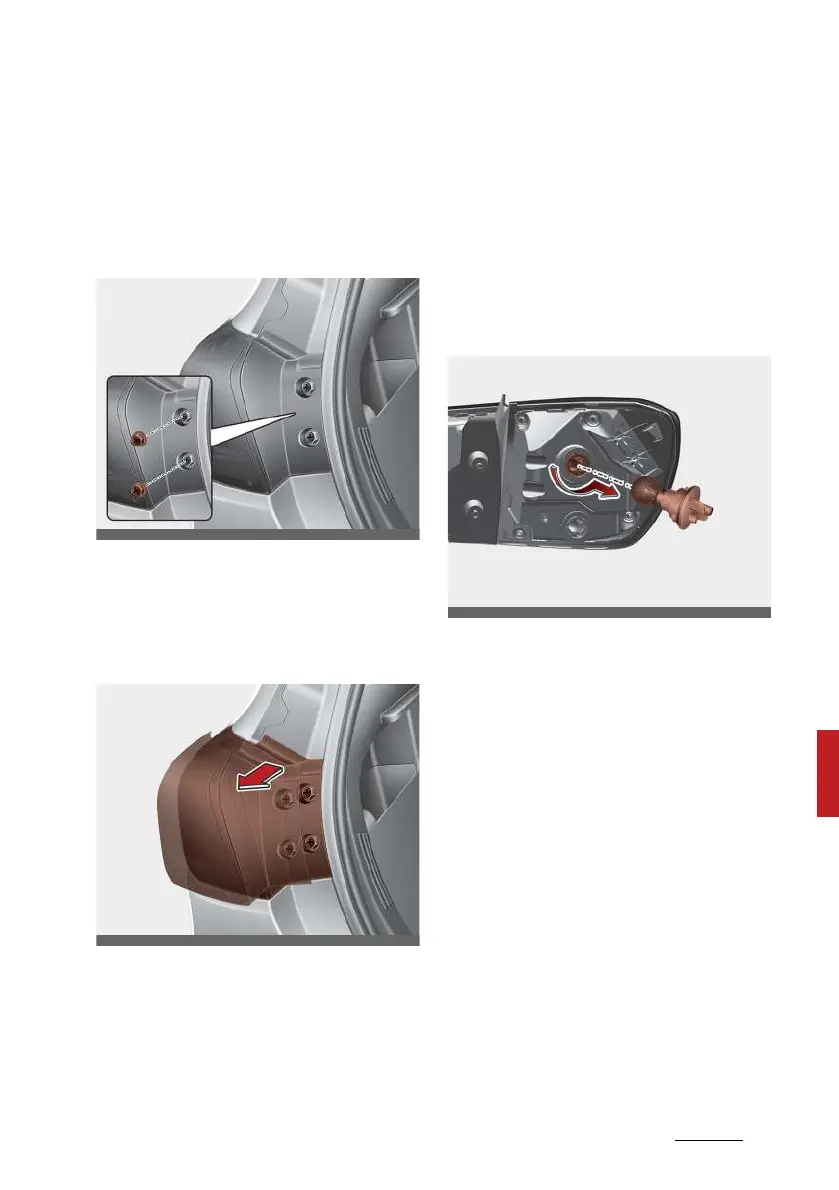

Stop and tail lamp (Bulb type) bulb
replacement
1. Open the trunk lid.
2. Loosen the light assembly retain
-
ing screws with a cross-tip
screwdriver.
3. Remove the rear combination
lamp assembly from the body of
the vehicle.
4. Disconnect the rear combination
lamp connector.
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it
into the socket and rotating it
until it locks into place.
8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assem
-
bly and turn the socket clockwise.
9. Install the rear combination lamp
assembly to the body of the vehi
-
cle.
Rear turn signal lamp (Bulb type)
bulb replacement
1. Open the trunk lid.
2. Loosen the light assembly retain
-
ing screws with a cross-tip
screwdriver.
