MAINTENANCE
WB140-2N, WB150-2N 3-31

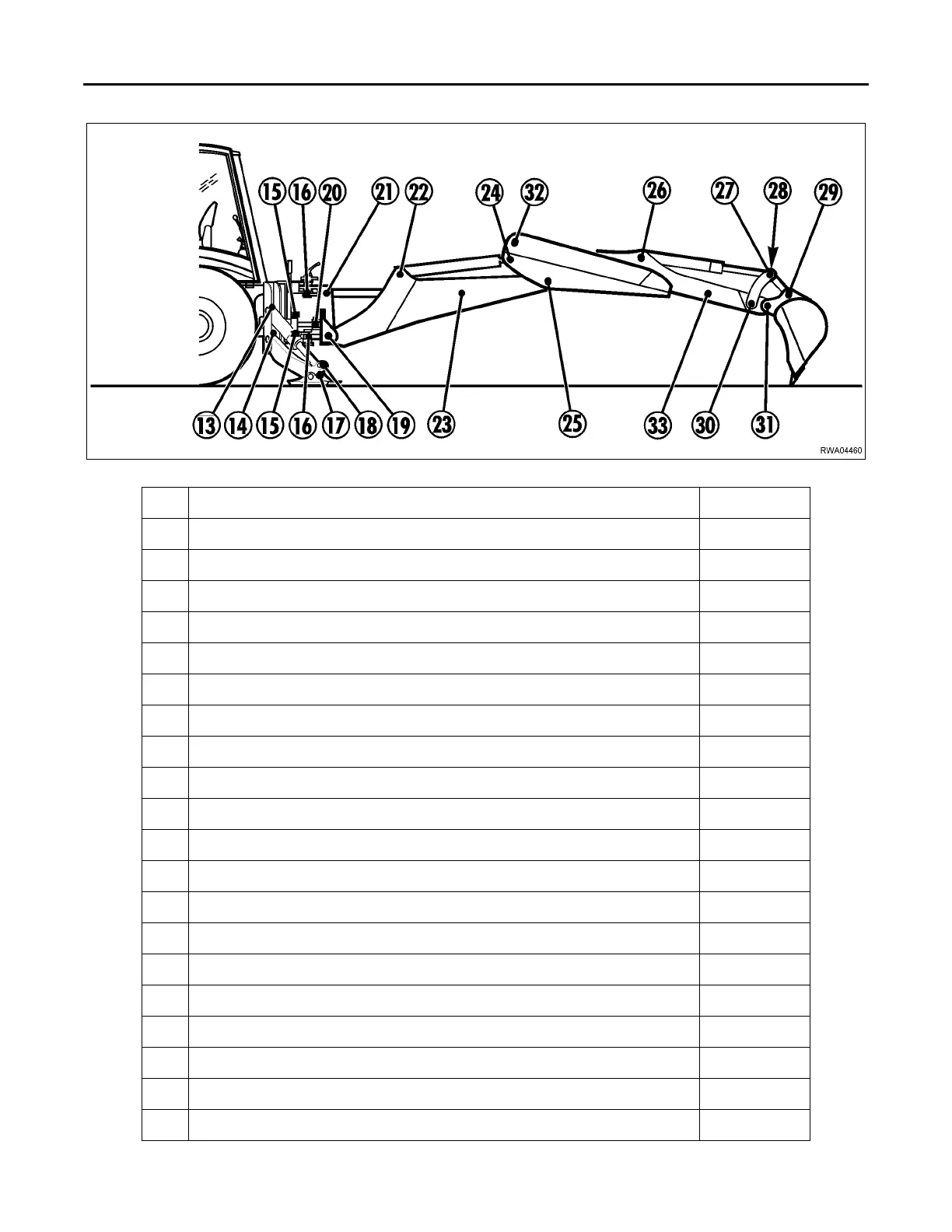

BACKHOE LUBRICATION LOCATIONS
13 Stabilizer cylinder pin (2 POINTS)
14 Stabilizer arm fulcrum pin (2 POINTS)
15 Boom swing cylinder base pin (4 POINTS)
16 Boom swing fulcrum pin (2 POINTS)
17 Stabilizer foot fulcrum pin (2 POINTS)
18 Stabilizer ram pin (2 POINTS)
19 Boom fulcrum pin (2 POINTS)
20 Boom swing cylinder head pin (2 POINTS)
21 Lift cylinder head pin (1 POINTS)
22 Arm cylinder base pin (1 POINTS)
23 Lift cylinder base pin (1 POINTS)
24 Arm cylinder head pin (1 POINTS)
25 Arm fulcrum pin (1 POINTS)
26 Bucket cylinder base pin (1 POINTS)
27 Bucket cylinder head pin (1 POINTS)
28 Tie rod - lever coupling pin (2 POINTS)
29 Tie rod - bucket coupling pin (2 POINTS)
30 Lever fulcrum pin (1 POINTS)
31 Bucket fulcrum pin (1 POINTS)
32 Telescopic arm cylinder base pin (optional) (1 POINTS)
33 Telescopic arm cylinder head pin (optional) (1 POINTS)
