Komatsu WB140-2N User Manual

OPERATION
2-28 WB140-2N, WB150-2N

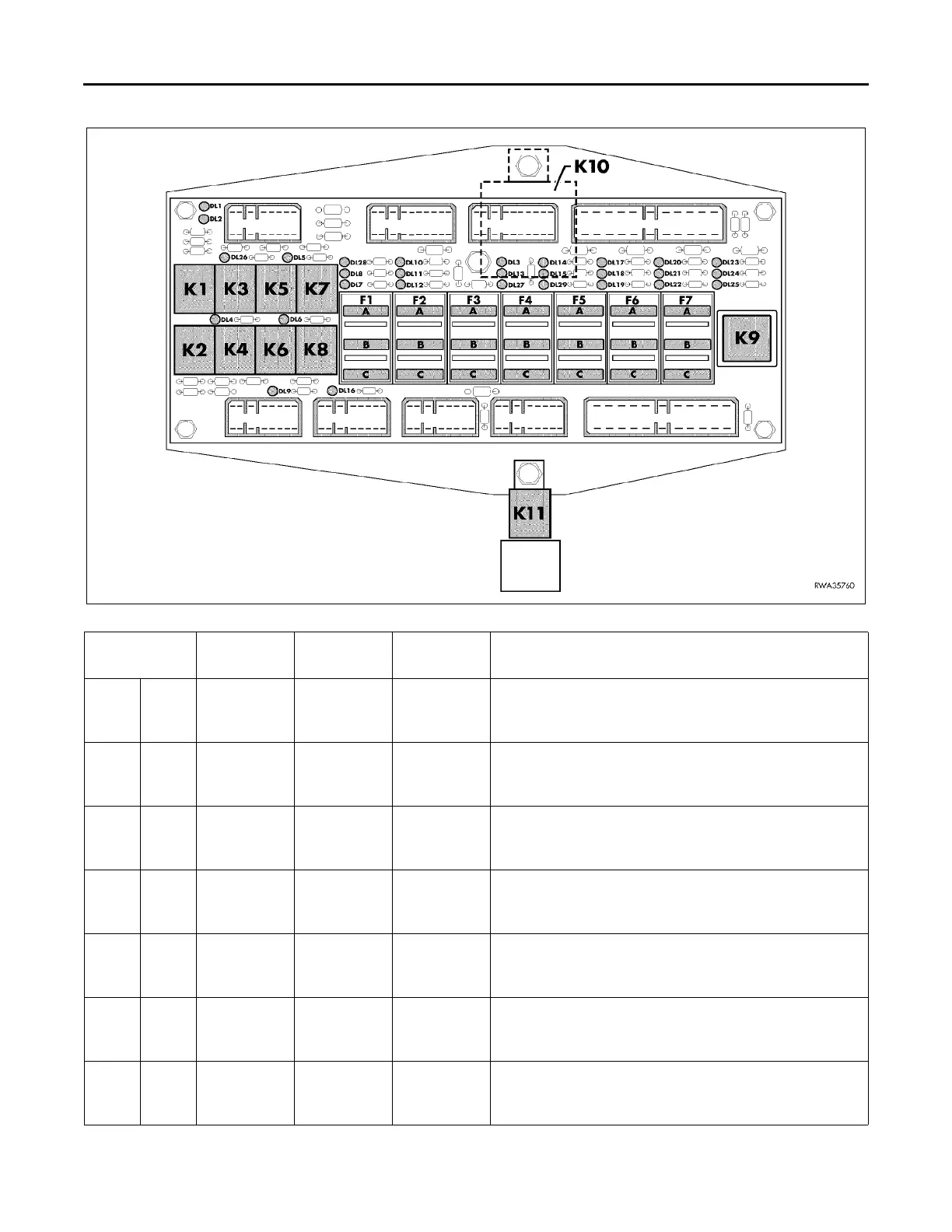

FUSE AND RELAY PANEL LAY OUT
Fuse
Position
Color
Capacity
(Amps)
(Red)
LED
Circuit Involved With Blown Fuse
F1
A
B
C
Light blue
Violet
Violet
15
3
3
DL25
DL8
DL7
Low beam
Right rear and left front parking light
Left rear and right front parking light
F2
A
B
C
Red
Brown
Red
10
7.5
10
DL10
DL11
DL12
Cigarette lighter
Cab overhead lamp and radio
Emergency power switch
F3
A
B
C
Brown
Brown
Brown
7.5
7.5
7.5
DL3
DL13
DL27
Start enable
Interments - Switch lights
Optional equipment solenoid
F4
A
B
C
Brown
Red
Light blue
7.5
10
15
DL14
DL15
DL29
Differential lock solenoid
Direction selector
High beam
F5
A
B
C
Light blue
Light blue
Light blue
15
15
15
DL17
DL18
DL19
Heating
Rear work lamps
Front work lamps
F6
A
B
C
Light blue
Brown
Red
15
7.5
10
DL20
DL21
DL22
Windshield wiper - Flashing light
Dimmer switch - Horn relay
Direction indicators
F7
A
B
C
Brown
Red
Brown
7.5
10
7.5
DL23
DL24
DL25
Monitor (if provided)
Horn
Alternator - Engine stop solenoid
