OPTIONAL ATTACHMENTS
5-20 WB140-2N, WB150-2N
HYDRAULIC JACK HAMMER
Due to the fact that the machine may be equipped with off tractor hydraulics, a jack hammer or similar approved tool may be
used. This option eliminates the need for an independent power source when using some power tools.
DESCRIPTION AND CONTROL

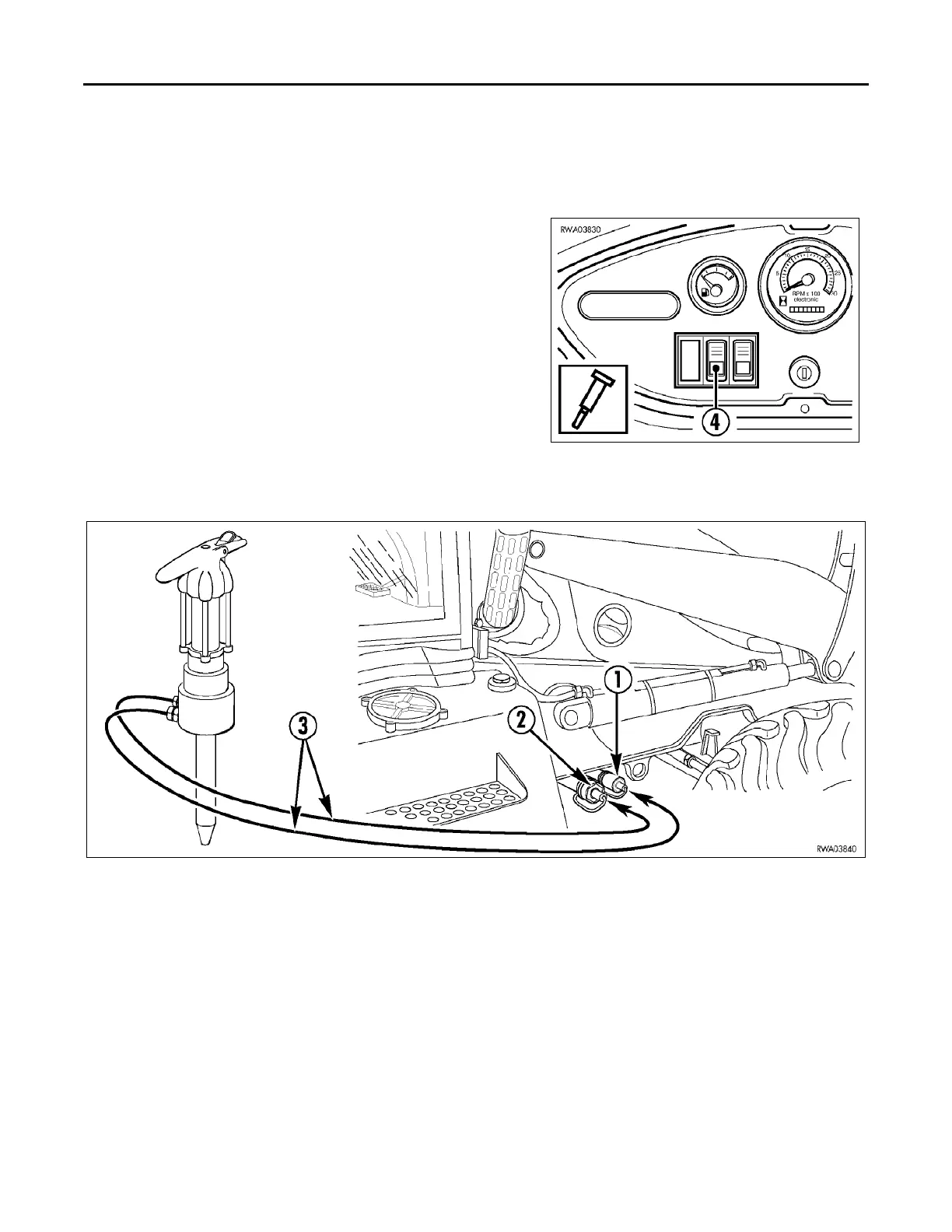

The machine can be provided with the delivery (1) and return (2) cou-
plings for the use of a manual hydraulic jack hammer, the connection to
the machine is made up of two flexible lines (3).
The circuit is separated from the normal circuits by a solenoid valve and
activated by a switch (4) positioned on the dash board.
By pressing the switch once energizes the solenoid and allows the sys-
tem to operate. If the switch is pressed a second time, the system is dis-
engaged.
When the system is in operation the switch will be illuminated.
For operation of the jack hammer, see the manual provided with the tool.
