OPERATION
2-2 WB140-2N, WB150-2N
GENERAL VIEW OF MACHINE
The views are taken from the operators seat facing forward and backward. For the front view, this would be for operator facing
the front of the machine using the front end loader or traveling with the machine. For the rear view, this would be for the oper-
ator facing the rear of the machine using the backhoe unit. Keep in mind front and rear view references for this machine are
different.

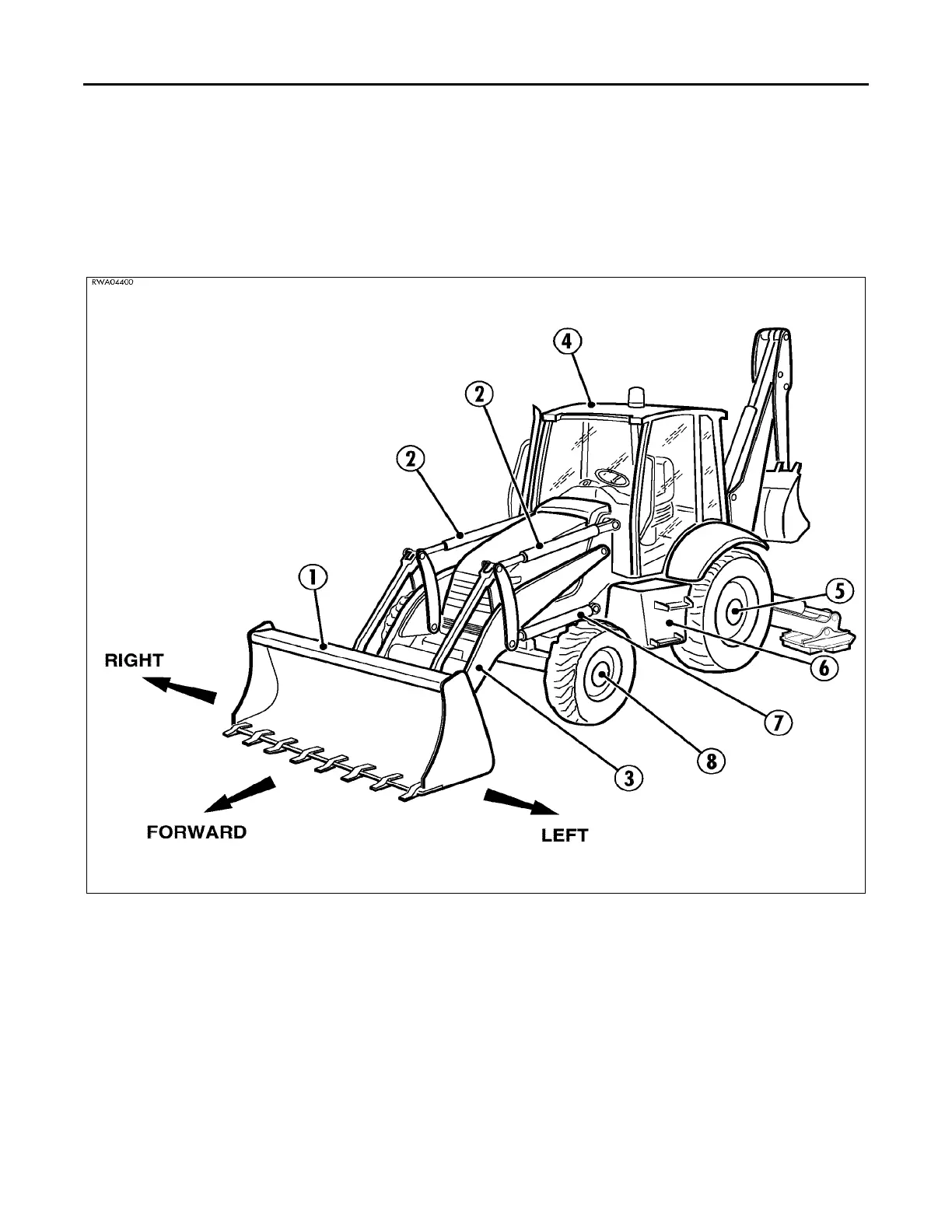

FRONT VIEW OF MACHINE
1. Front Bucket 5. Rear Axle
2. Bucket Cylinder 6. Fuel Tank
3. Bucket Arms 7. Lift Cylinder
4. Cab 8. Front Axle
