OPERATION
WB140-2N, WB150-2N 2-7
DESCRIPTION OF MACHINE OPERATION CONTROLS
Before operating the machine it is important to understand all the control functions equipped with your machine. Operating the
machine without knowledge of all the controls may damage the machine, property or possibly cause injury to the operator.

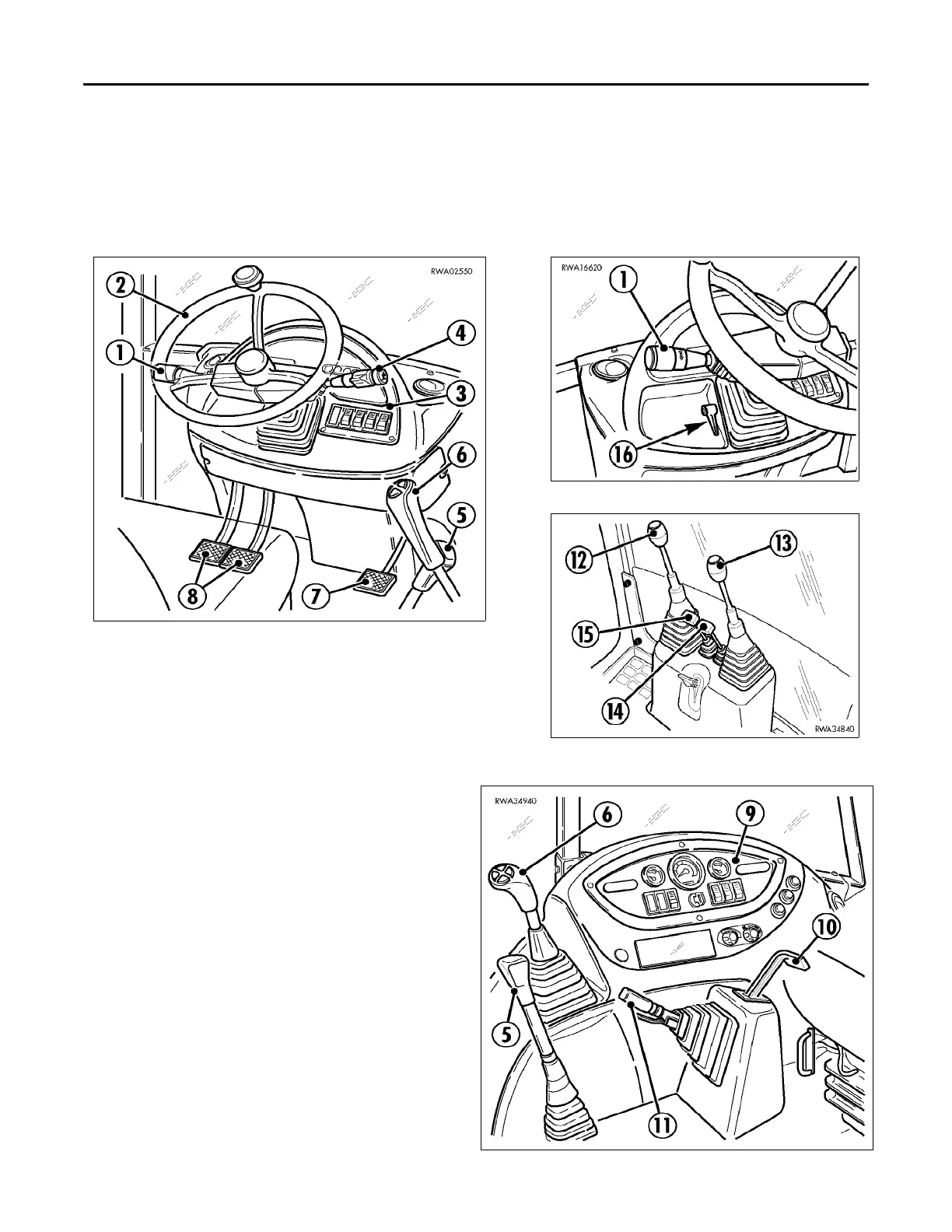

INSIDE THE CAB
1.
Direction control lever
2.
Steering wheel
3.
Front dash bezel
4.
Turn signal and dimmer switch
5.
Gear shift lever
6.
Front end loader control lever
7.
Accelerator pedal
8.
Brake pedals
9.
Side dash bezel
10.
Throttle control lever
11.
Parking brake
12.
Left backhoe wobble stick
13.
Right backhoe wobble stick
14.
Right outrigger control
15.
Left outrigger control
16.
Steering wheel adjustment (optional)
