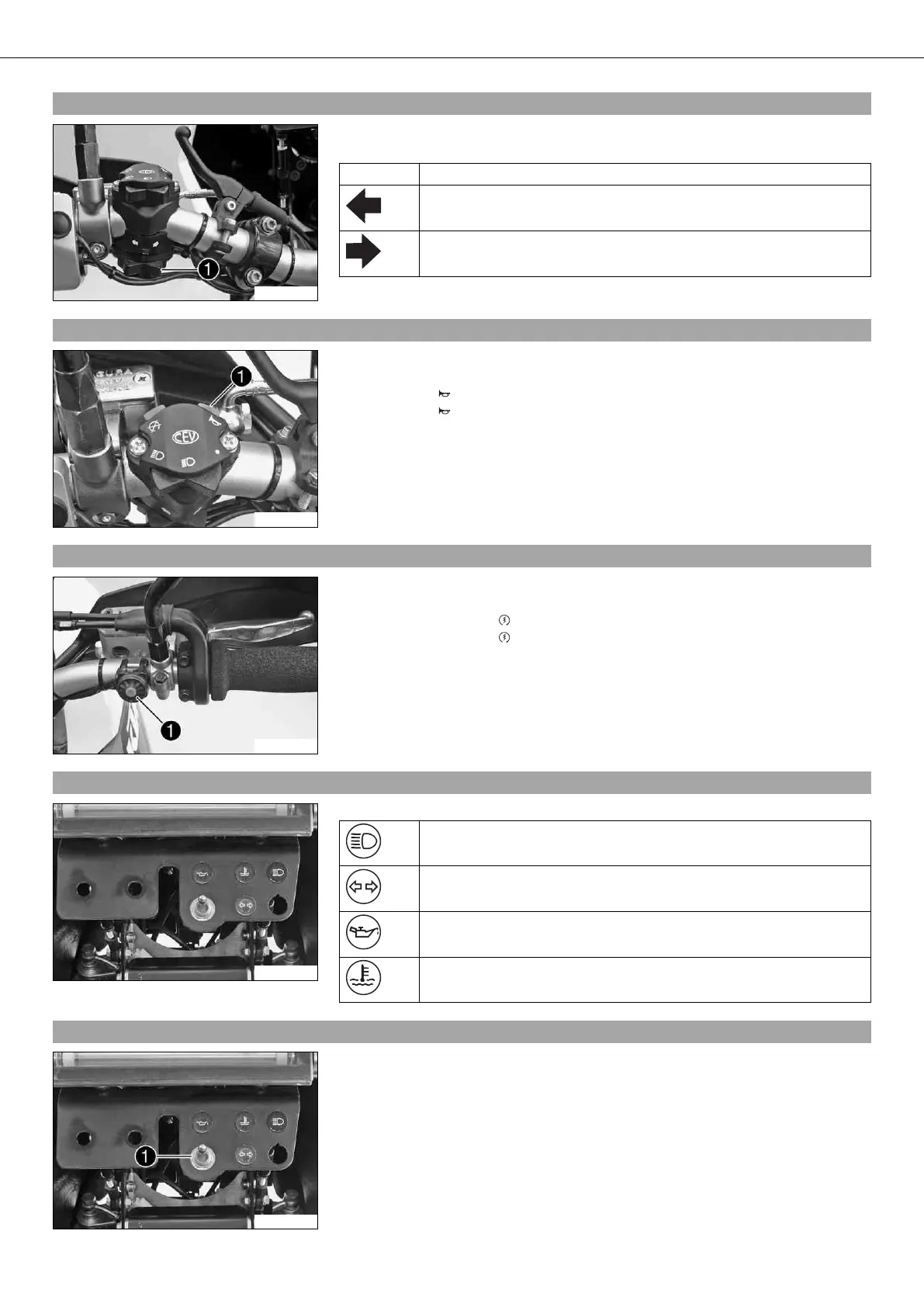

CONTROLS 11
4.6Turn signal switch
601294-10
The turn signal switch is fitted on the left side of the handlebar.
Possible states
Turn signal off – Turn signal switch is in the central position.
Turn signal, left, on – Turn signal switch turned to the left.
Turn signal, right, on – Turn signal switch turned to the right.
4.7Horn button
601292-11
The horn button is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – The horn is operated in this position.
4.8Electric starter button
601301-10
The electric starter button is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
4.9Indicator lamp overview
601298-01
Possible states
High beam indicator lamp lights up blue – High beam is switched on.
Turn signal indicator light flashes green – Turn signal is switched on.
The oil pressure warning lamp lights up red – The oil pressure is too
low.
The temperature warning lamp lights up red – The coolant temperature
has reached a critical value.
4.10Ignition switch
601298-10
The ignition switch is located to the left of the indicator lamp on the instrument
support.
Possible states
• Ignition off – Ignition switch flipped up. In this position, the ignition circuit is
interrupted, a running engine stops, and a non-running engine will not start.
• Ignition on – Ignition switch flipped down. In this position, the ignition circuit is
closed, and the engine can be started.
