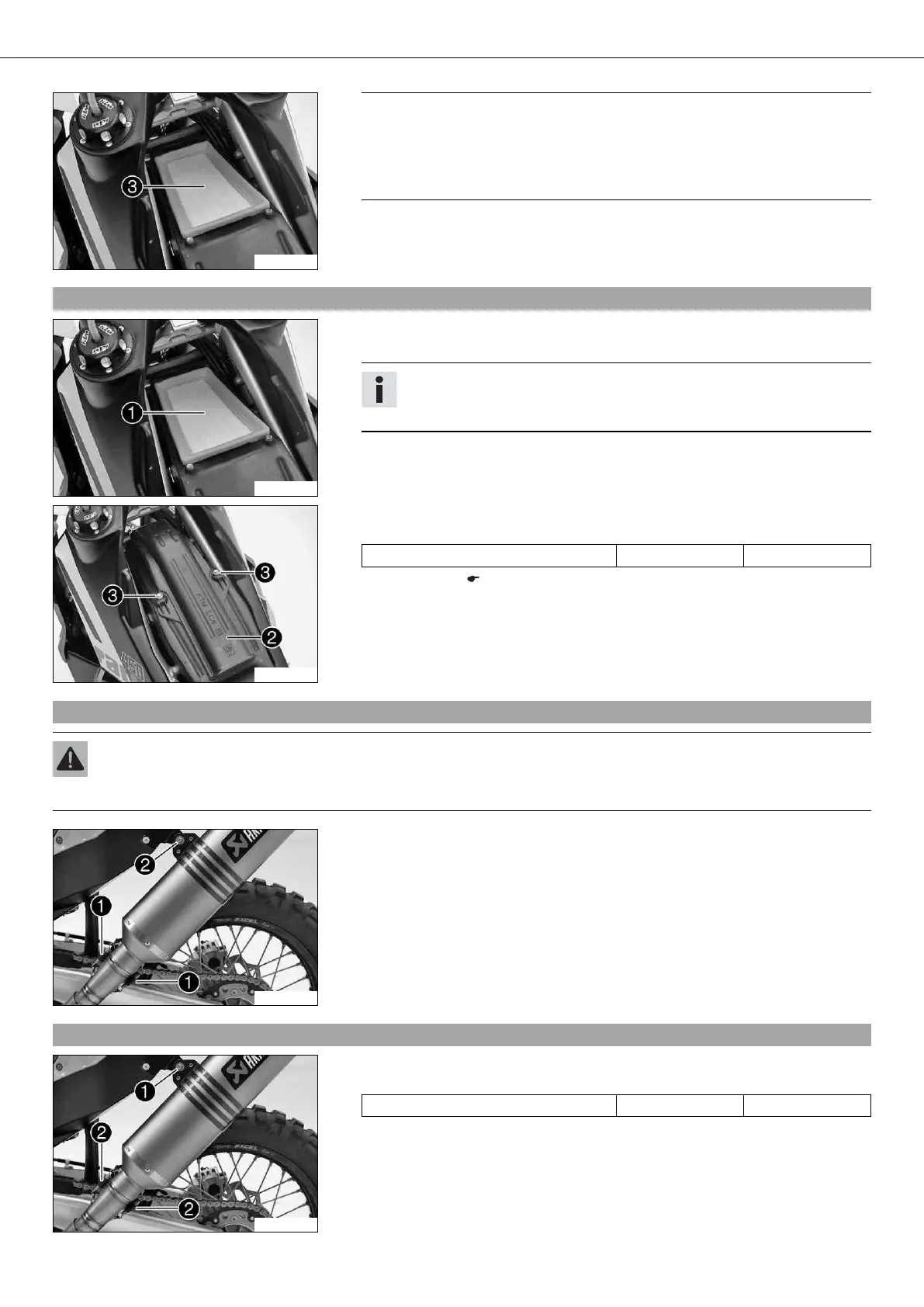

KTM 450 Rally Replica User Manual

SERVICE WORK ON THE CHASSIS 45
601350-11
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the
engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the
engine and result in increased wear.
– Remove air filter .
9.17Installing the air filter x
601350-10
– Clean the air filter box.
– Mount air filter .
Info
The air filter must lie flush against the air filter box along the entire sealing
surface.
– Hook air filter box lid  into the front of the air filter box and swing down.
601349-11
– Mount and tighten screws .
Guideline
Screw, air filter box top M6 2 Nm (1.5 lbf ft)
– Mount the seat. ( p. 44)
9.18Removing the main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
601351-10
– Detach springs .
– Remove screw  and take off the main silencer.
9.19Installing the main silencer
601351-11
– Mount the main silencer. Mount and tighten screw .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Attach springs .

KTM 450 Rally Replica Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	449.3 cc
Cooling	Liquid cooled
Fuel System	Keihin EFI, throttle body 44 mm
Transmission	6-speed
Starter	Electric starter
Bore x Stroke	95 mm x 63.4 mm
Compression Ratio	12.75:1
ABS	No
Seat Height	960 mm
Dry Weight	139 kg
Frame	Chromoly steel central-tube frame
Front Suspension	WP XACT PRO 48 mm, closed cartridge
Rear Suspension	WP XACT PRO with Trax technology
Front Brake	300 mm
Rear Brake	Single disc, 240 mm
