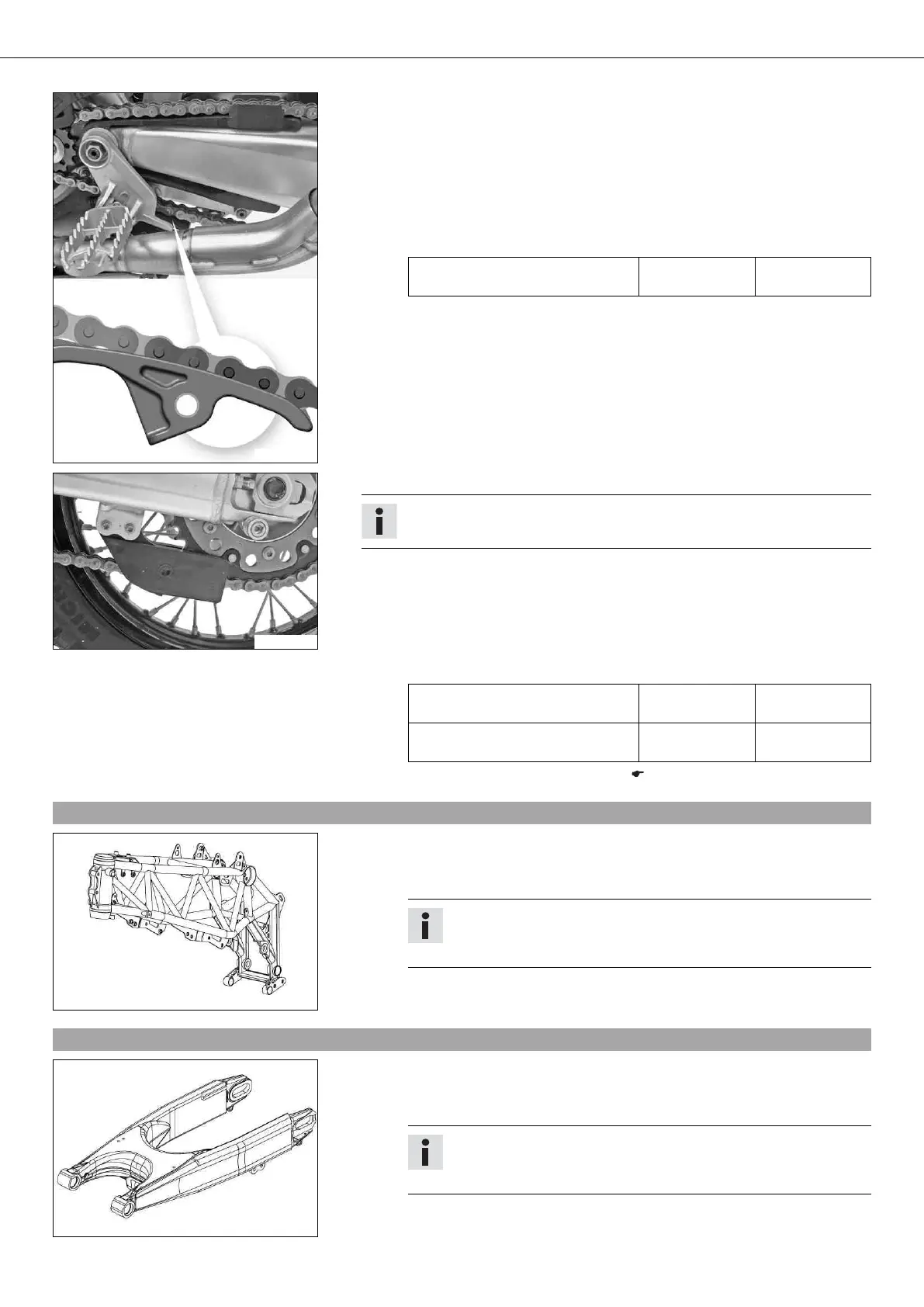

SERVICE WORK ON THE CHASSIS 51
601359-10
– Check the chain sliding piece for wear.
» If the bottom edge of the chain bolt is in line with or below the chain sliding
piece:
–
Change the chain sliding piece. x
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
601360-01
– Check the chain guide for wear.
Info
Wear is visible on the front of the chain guide.
» If the chain guide is worn:
–
Change the chain guide. x
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
– Remove the motorcycle from the lift stand. ( p. 37)
9.30Checking the frame x
601609-01
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a mechanical impact:
–
Change the frame. x
Info
A frame that has been damaged due to a mechanical impact must
always be changed. Repair of the frame is not authorized by KTM.
9.31Checking the swingarm x
601608-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or deformation:
–
Change the swingarm. x
Info
A damaged swingarm must always be changed. Repair of the
swingarm is not authorized by KTM.
