MAINTENANCE ON CHASSIS AND ENGINE 107
9.31Adjusting basic position of hand brake lever
100052-10
– Check the free travel of the hand brake lever. ( p. 106)

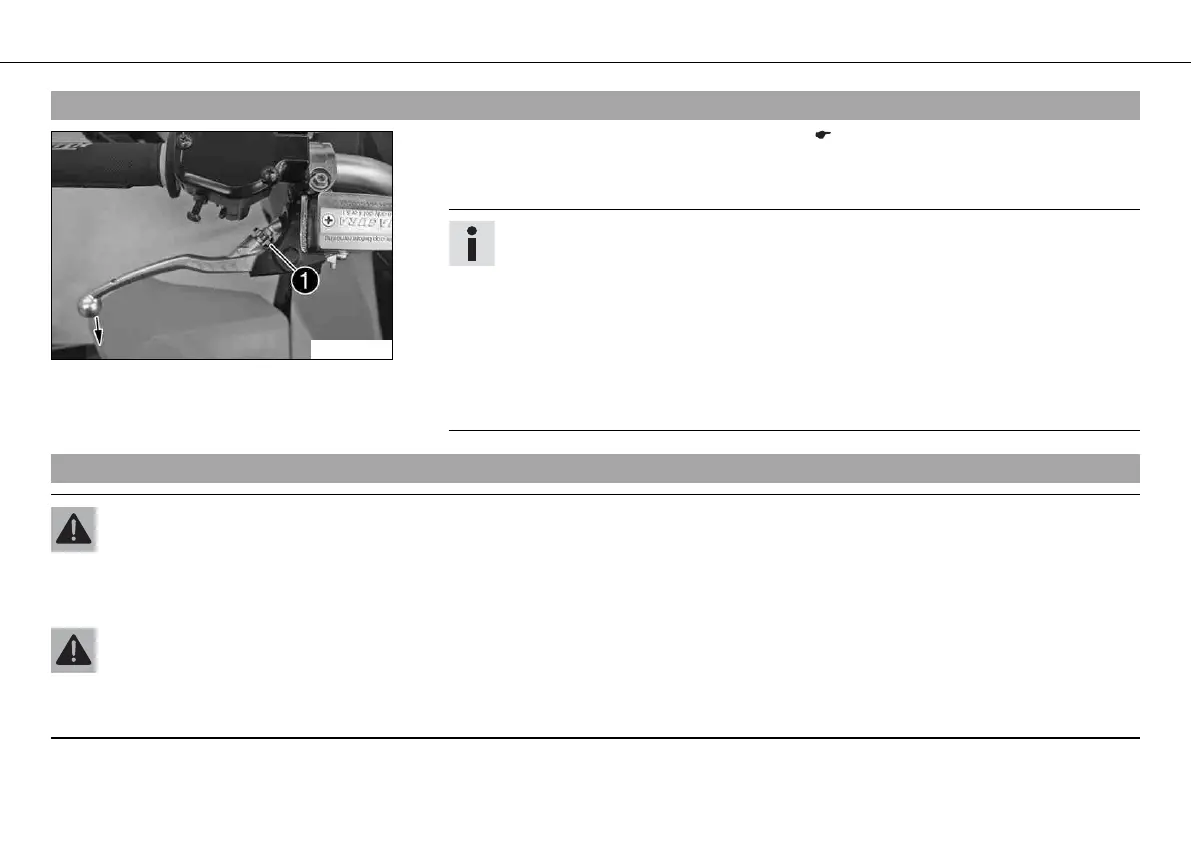

– Adjust the basic setting of the hand brake lever to your hand size by turning adjusting
screw .
Info
Pull the brake lever forward and turn the adjusting screw.
Turn the adjusting screw clockwise to increase the distance between the hand
brake lever and the handlebar.
Turn the adjusting screw counterclockwise to decrease the distance between the
hand brake lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply any force.
Do not make any adjustments while riding!
9.32Checking front brake fluid level
Warning
Danger of accidents Brake system failure.
– If the brake fluid level falls below the bottom of the viewer, this indicates a leakage in the brake system or worn-out brake lin-
ings. Check the brake system and not continue riding. (Your authorized KTM workshop will be glad to help.)
Warning
Danger of accidents Reduced braking effect caused by old brake fluid.
– Change the brake fluid of the front and rear brakes according to the service schedule. (Your authorized KTM workshop will be
glad to help.)
