MAINTENANCE ON CHASSIS AND ENGINE 151

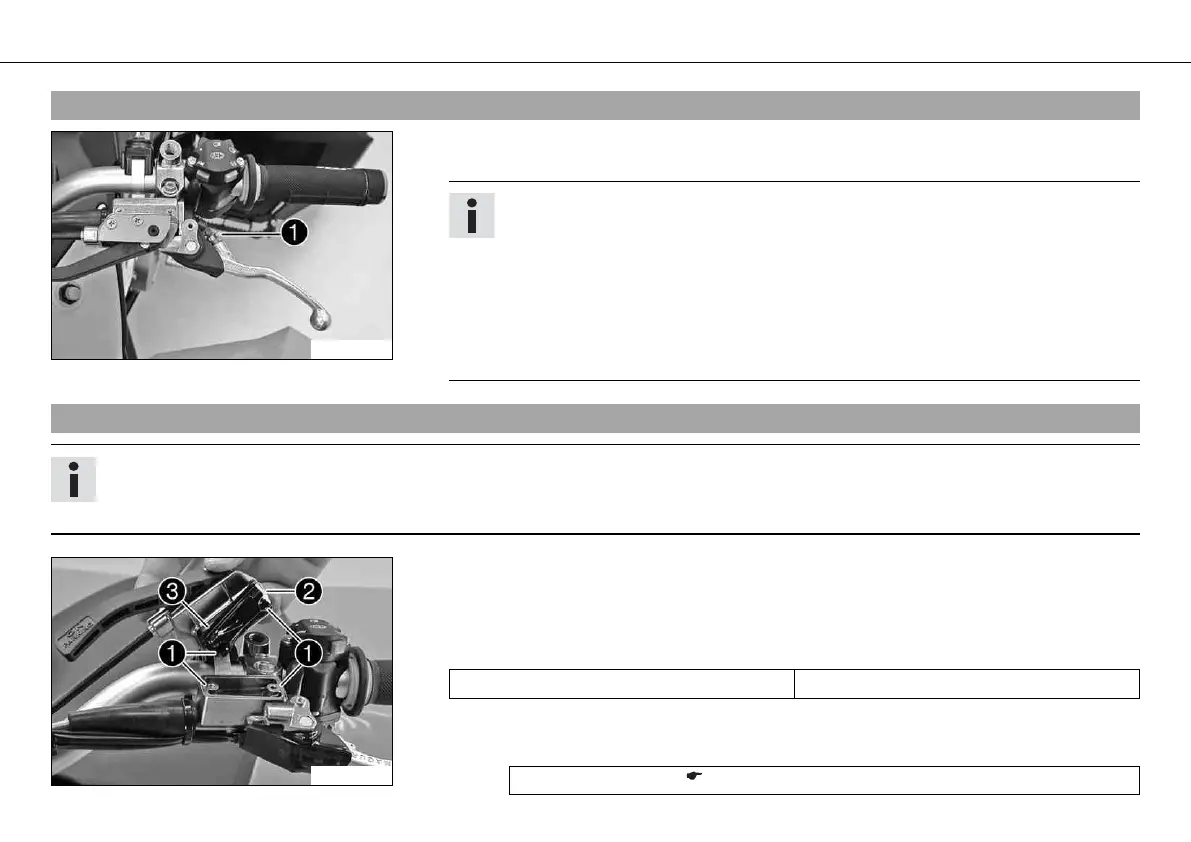

9.72Adjusting basic position of clutch lever
601065-10
– Adjust the basic setting of the clutch lever to your hand size by turning adjusting
screw .
Info
Turn the adjusting screw counterclockwise to increase the distance between the
clutch lever and the handlebar.
Turn the adjusting screw clockwise to decrease the distance between the clutch
lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply any force.
Do not make any adjustments while riding!
9.73Checking fluid level of hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
601066-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws .
– Remove cover with membrane .
– Check the fluid level.
Fluid level under top level of container 4 mm (0.16 in)
» If the coolant level does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 198)
