MAINTENANCE ON CHASSIS AND ENGINE 141

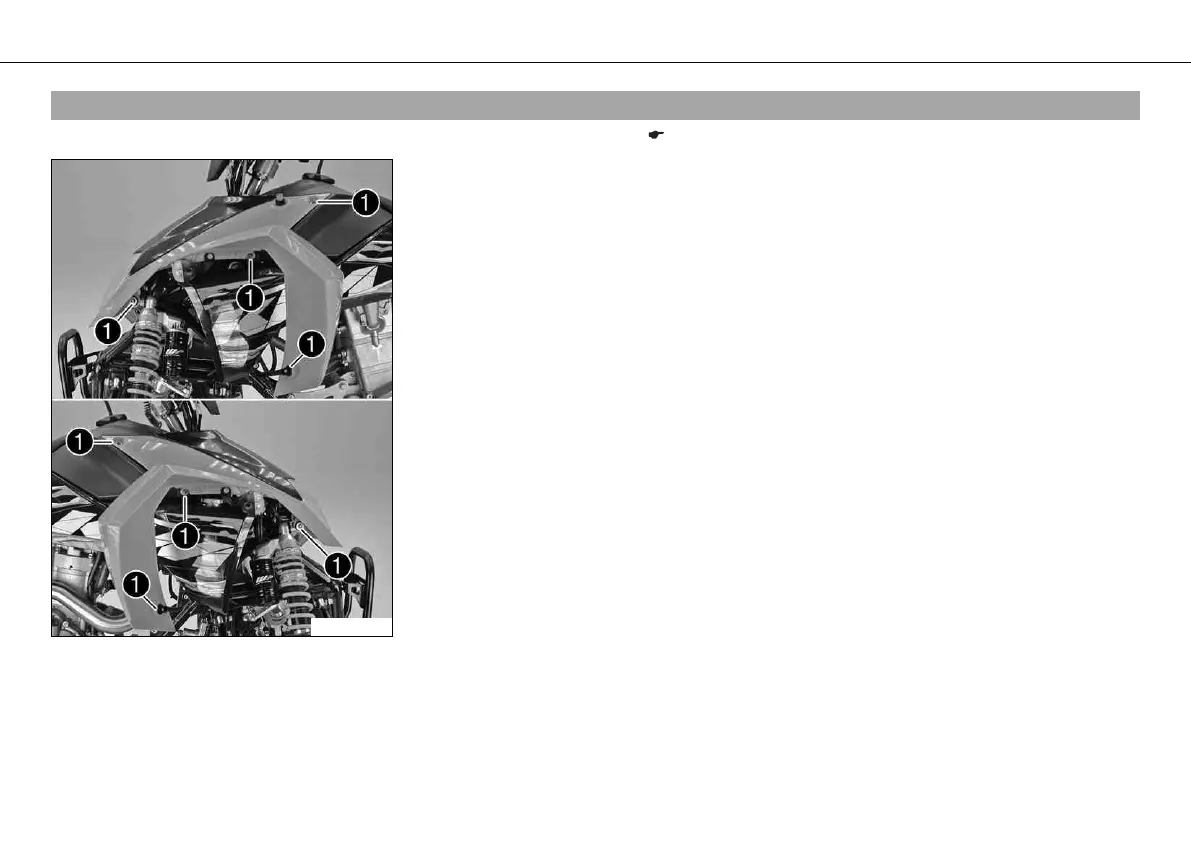

9.63Removing the front trim

– Remove the front cover. ( p. 140)

601063-10

– Remove screws .

– Raise the front trim and disconnect the plug-in connectors from the head light and the

emergency OFF switch with the rip cord.

– Remove the front trim.
