5.5 Leakage Current
Specifications
DC 50Ω, EXT DC 50Ω : ±0.5 mV
DC 1MΩ, EXT DC 1MΩ : ±1.0 mV
The leakage current is tested by measuring the voltage across the input channel.
5.5.1 Channel Leakage Current
a. DC 50Ω

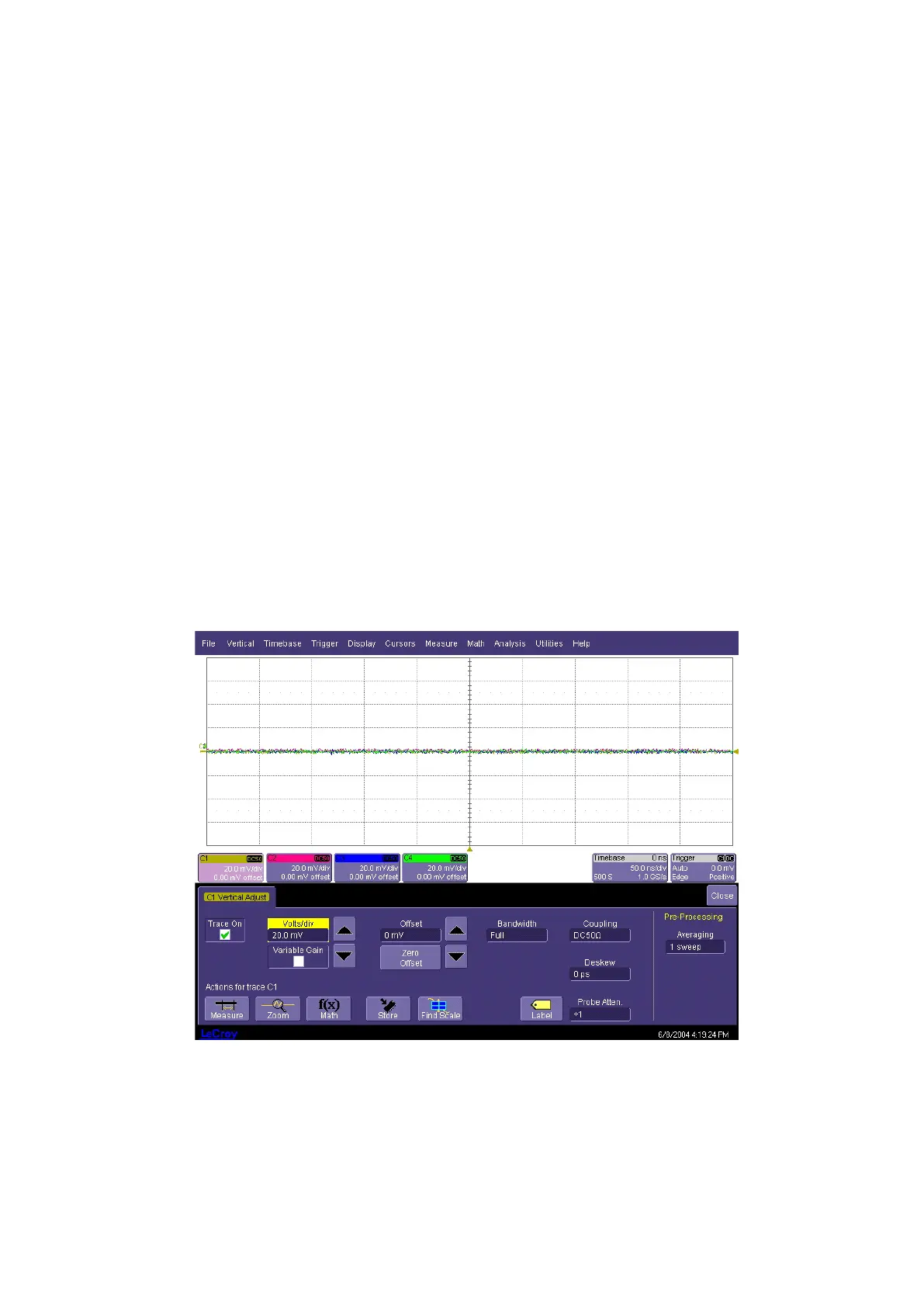

 Recall Leakage - 50 ohm x1.lss or configure the DSO :
Panel Setups : Recall FROM DEFAULT SETUP
Channels Trace ON Channel 1, Channel 2, Channel 3 & Channel 4
Input Coupling : DC 50Ω on all 4 Channels
Input gain : 20 mV/div. on all 4 Channels
Trigger mode : Auto
Time base : 50 nsec/div.
Rev. D Sept 2007 Performance Verification 5-9
