LeCroy WaveSurfer 400 Series User Manual

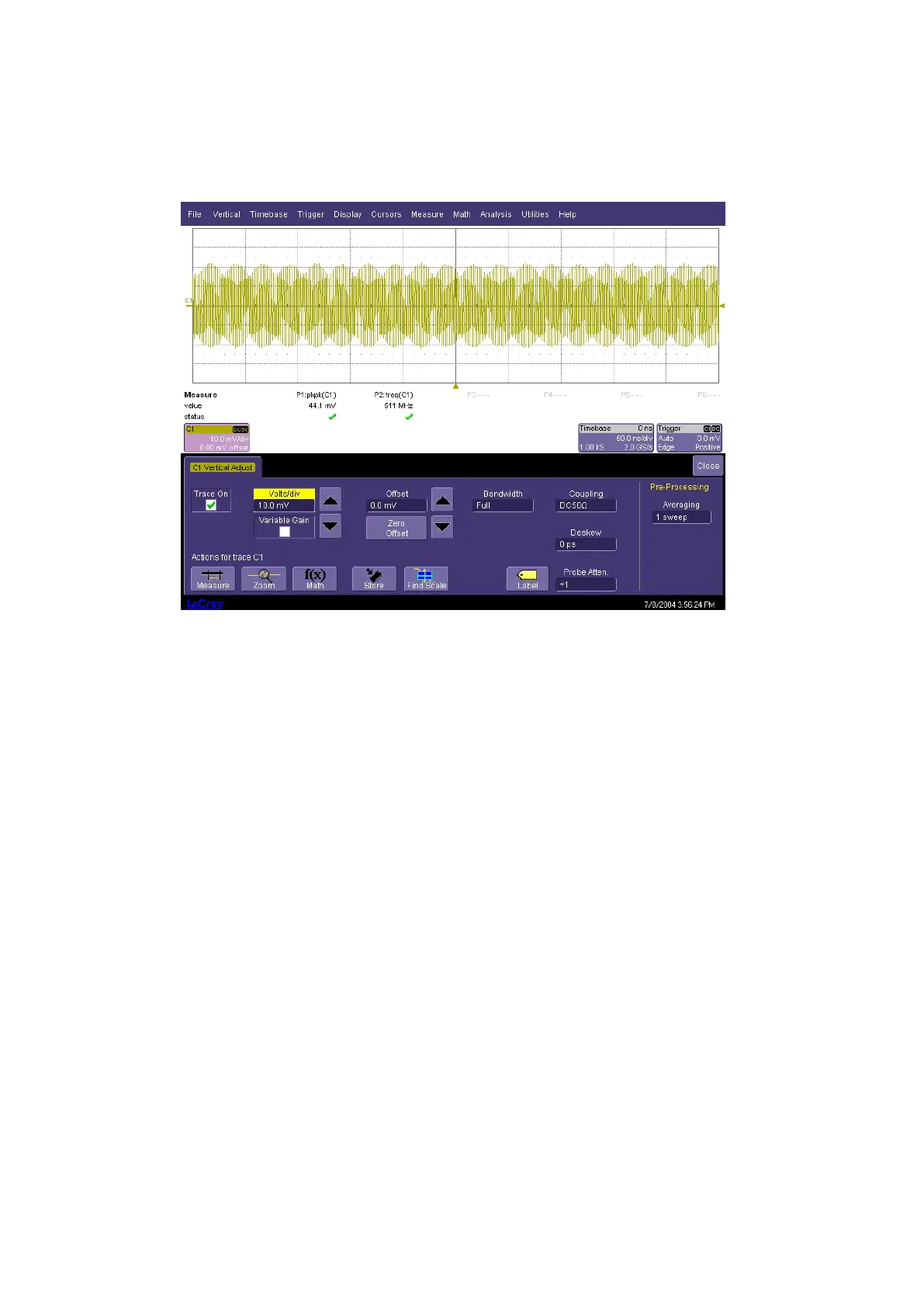

 Calculate the ratio to 10 MHz for each channel, pk-pk
500.1/pk-pk10 (for WaveSurfer
45X)
, pk-pk350.1/pk-pk10 (for WaveSurfer 43X), or pk-pk200.1/pk-pk10 (for
WaveSurfer 42X)
and compare the results to the limits in the test record.
 Repeat the above steps for V/div setting of 50 mV, 100 mV, and 500 mV, using
the appropriate Bandwidth - CHx vvmv.lss (where x is channel and yy is V/div
setting) panel setup and recording your results in Tables 10 through 12. Use the
power setting and attenuators as shown in the tables.
Rev. D Sept 2007 Performance Verification 5-27
