LeCroy WaveSurfer 400 Series User Manual

5-30 Performance Verification Rev. D Sept 2007
Sine Wave
Generator

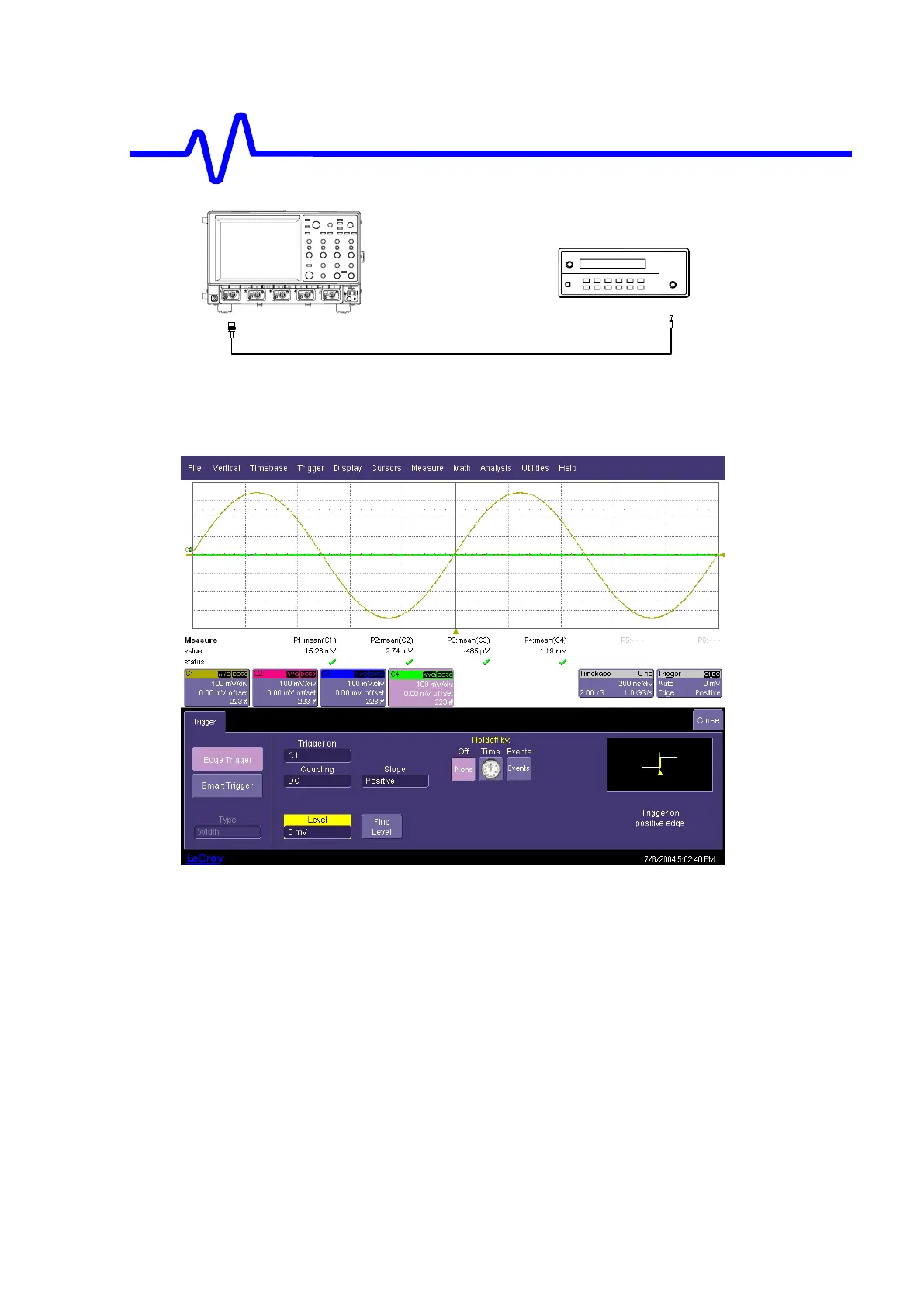

Figure 5-5 Channel Trigger Equipment Setup
 Press Clear Sweeps,
 Acquire 10 sweeps and record in Table 13 the level readout displayed below
100 mV in the icon 1, at top left.
 Compare the test results to the corresponding limit in the test record.
 Set Trigger Slope 1 : Neg
 Acquire 10 sweeps and record in Table 13 the level readout displayed below
100 mV in the icon 1, at top left.
