ATTENTION! The device has no built-in Infrared receiver and transmitter. For the complete usage attach
an IR emitter unit to the IR OUT and an IR detector unit to the IR IN connectors.
Infra-Red (IR) receiver and transmitter options can be found on this tab. There are three submenus are
available under it: IR codes, Ports, and Clear all IR codes.
IR Codes
can be ordered to each IR codes.

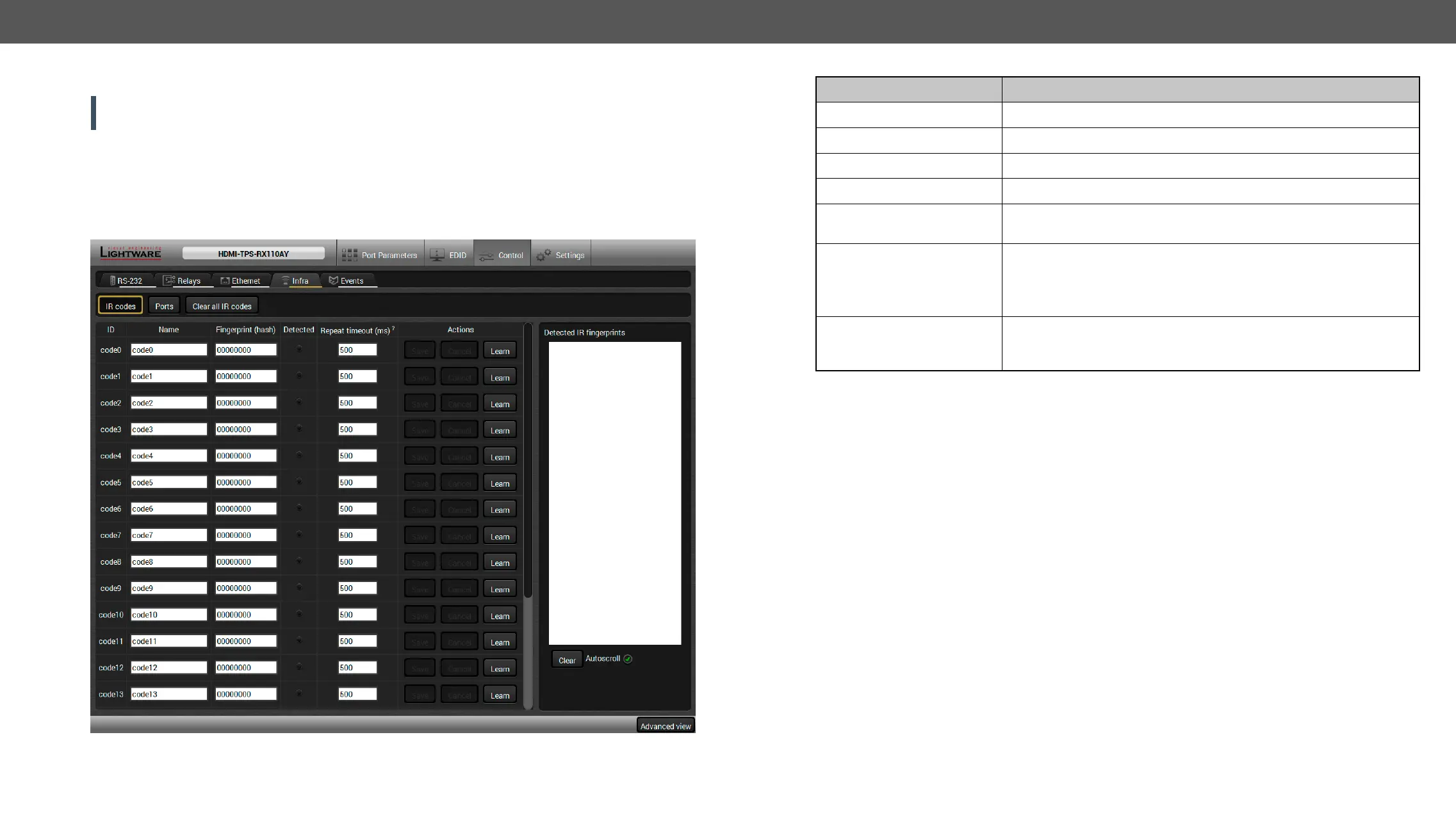

IR codes window in Control menu
Description
ID Code number.
Name You can give an unique name for the desired code.
Fingerprint code in pronto hexa format.
Detected Indicator gives feedback about the given IR code is detected currently.
You can set a timeout to avoid the involuntary code recurrence.
Actions
Action buttons for the desired IR code:
Save
Cancel
Learn: learning the detected IR code.
You can check the detected IR codes in this panel. Pushing Clear button
scrolling with the Autoscroll pipe.
Event Manager. For more details about events see Event Manager section.
Learning IR Codes
Step 1. Connect the IR detector unit to the IR IN port of the receiver.
Step 2. Click on the Learn button.
Step 3.
button to learn.
Step 4. OK to continue.
Step 5. Optionally type a unique name for the code in the Name text box. The default name is code#, e.g.
code0.
