8. Firmware Upgrade HDMI-TPS-RX110AY – User's Manual 70
the device from the system. It means user does not have to connect directly to the upgradable device, it can
devices.
There are two types of remote upgrading:
Extended Upgrade
▪
▪ For example, HDMI-TPS-RX110AY extenders can be upgraded via MMX6x2-HT series matrix or a
HDMI-TPS-TX95 extender.
Hosted Upgrade
▪ Basic devices can be upgraded only via an intelligent device via TPS link.
▪ For example, TPS 95 series extenders can be upgraded via MMX6x2-HT series matrix or HDMI-TPS-
RX110AY extenders.
▪ In case of hosted upgrade, the procedure is almost the same as described in Firmware upgrade –
Detailed Instructions. The only difference is that the host device’s name, and IP address appears
beside the name of the device to be upgraded.
ATTENTION! During hosted upgrade the host device turned to bootload mode when the extender is

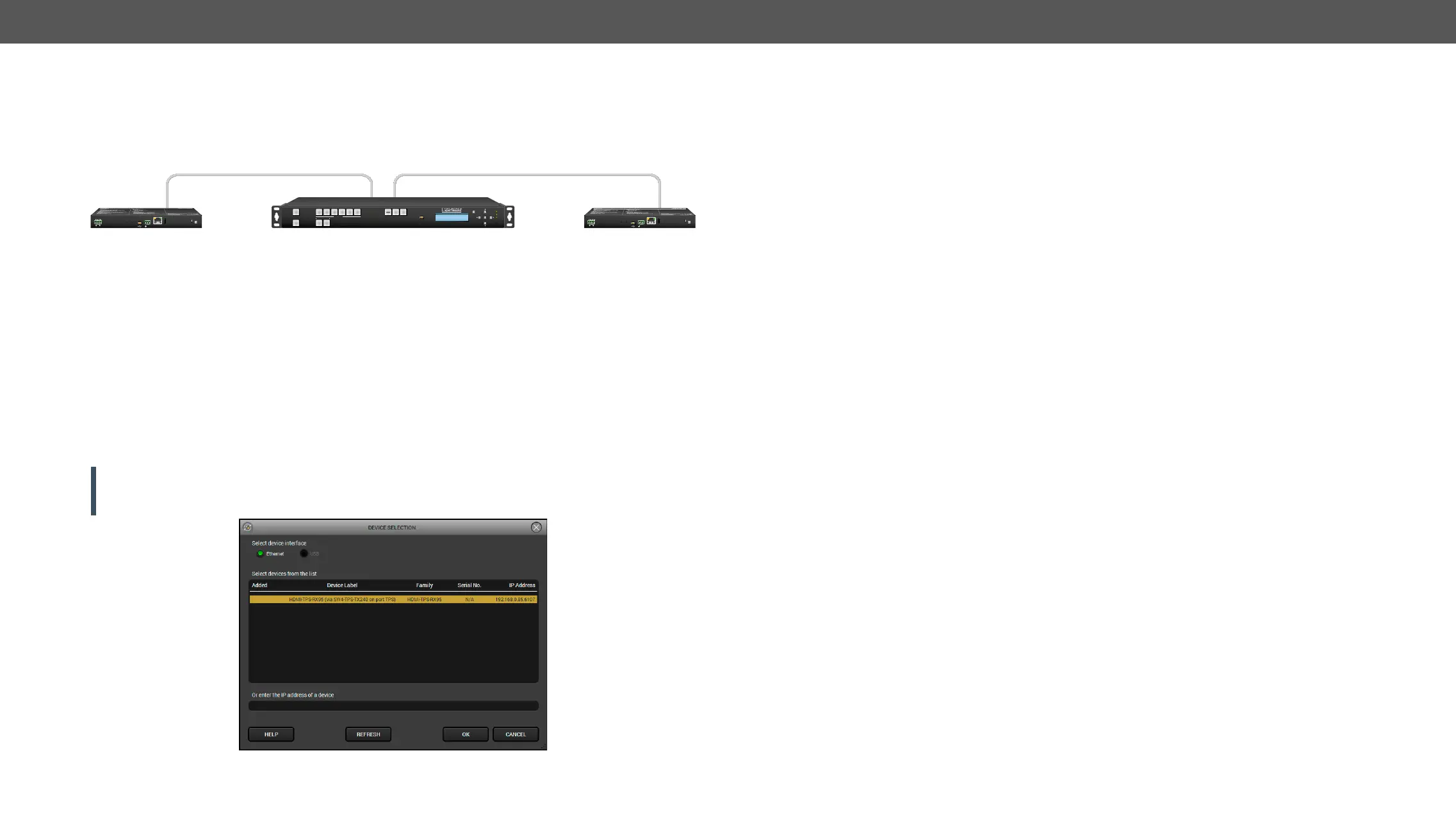

Remote device in device selection window
