Maintenance work on the carrier
7.4 Fuel system
7 - 32 3 302 756 en Maintenance manual
GMK6400
16.11.2018

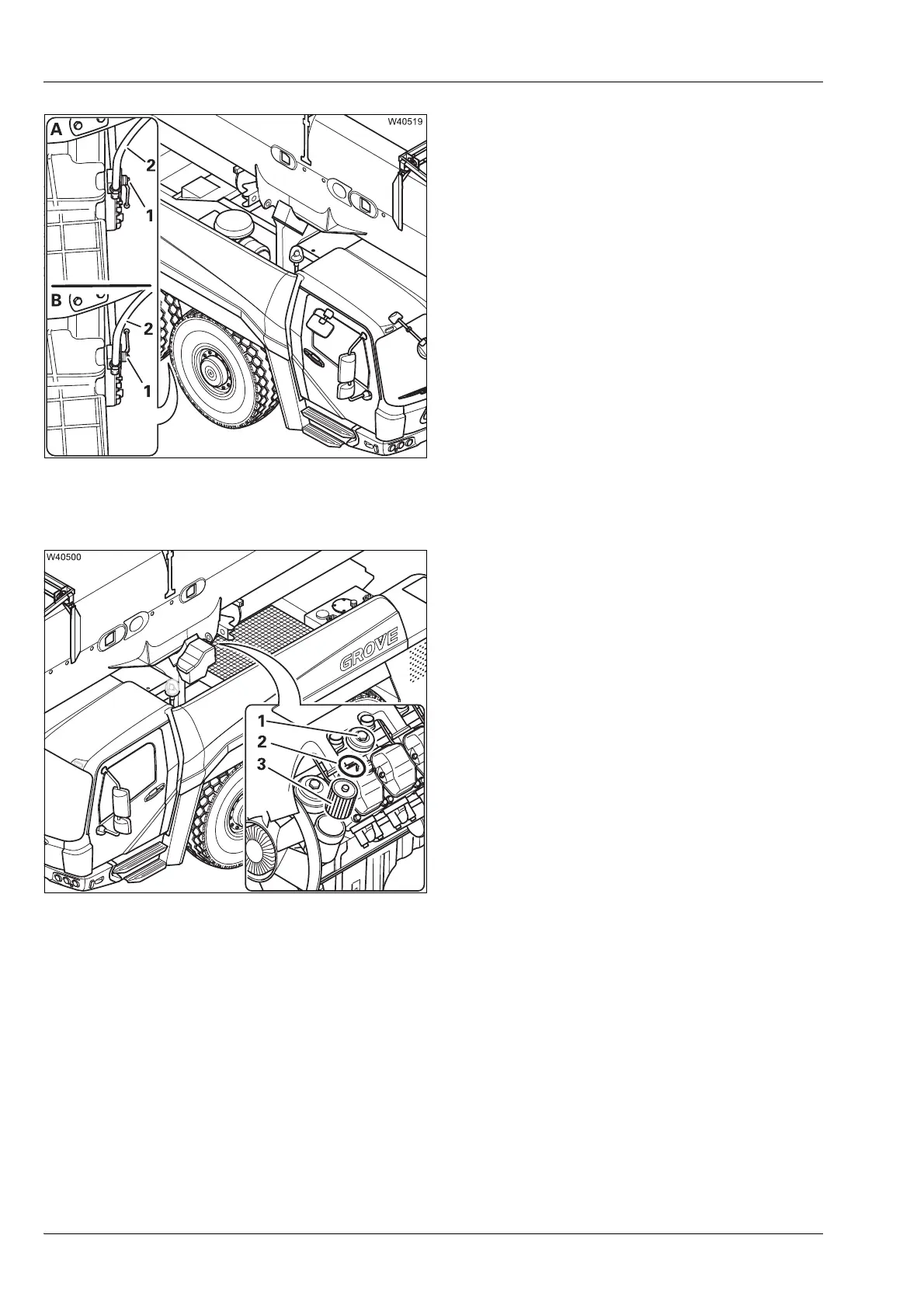

• Place a receptacle underneath the end of the
hose (2).
• (A)– Turn the valve – lever (1) horizontal.
• Let the consumable drain.
• (B)– Turn the valve – lever (1) vertical.
Leave the receptacle under the hose. More
consumable will run out during bleeding.
Changing the filter
• Unscrew the cap (1) and remove the
filter (3).
Let the remaining consumable drain away.
• Remove the cap and unclip the filter by
applying pressure to the sides of its lower
edge.
• Replace the seal (2) (lubricate slightly) and
clip a new filter into the lid.
• Screw the lid and filter into the housing and
tighten it – Torque 25 Nm (18.5 lbf ft).
