Maintenance work on the carrier
7.8 Axle lines
16.11.2018
Maintenance manual 3 302 756 en 7 - 67
GMK6400
7.8.7 Lubricating the drive shafts in the axle lines
H
Check all drive shafts to see if they have grease nipples.
Drive shafts with grease nipples must be serviced, drive shafts without
grease nipples are maintenance-free.
Grease, spare
parts, tools
– Grease gun from the tool set.
Prerequisites – The truck crane must be raised on outriggers or parked over an inspec-
tion pit.
– The engine must not be running and must be secured against unauthor-
ised use; à p. 2 - 3.
– The wheels must be turned as far as they will go, so that the lubricating
nipples on the sides of the final drives are more easily accessible.
Lubrication

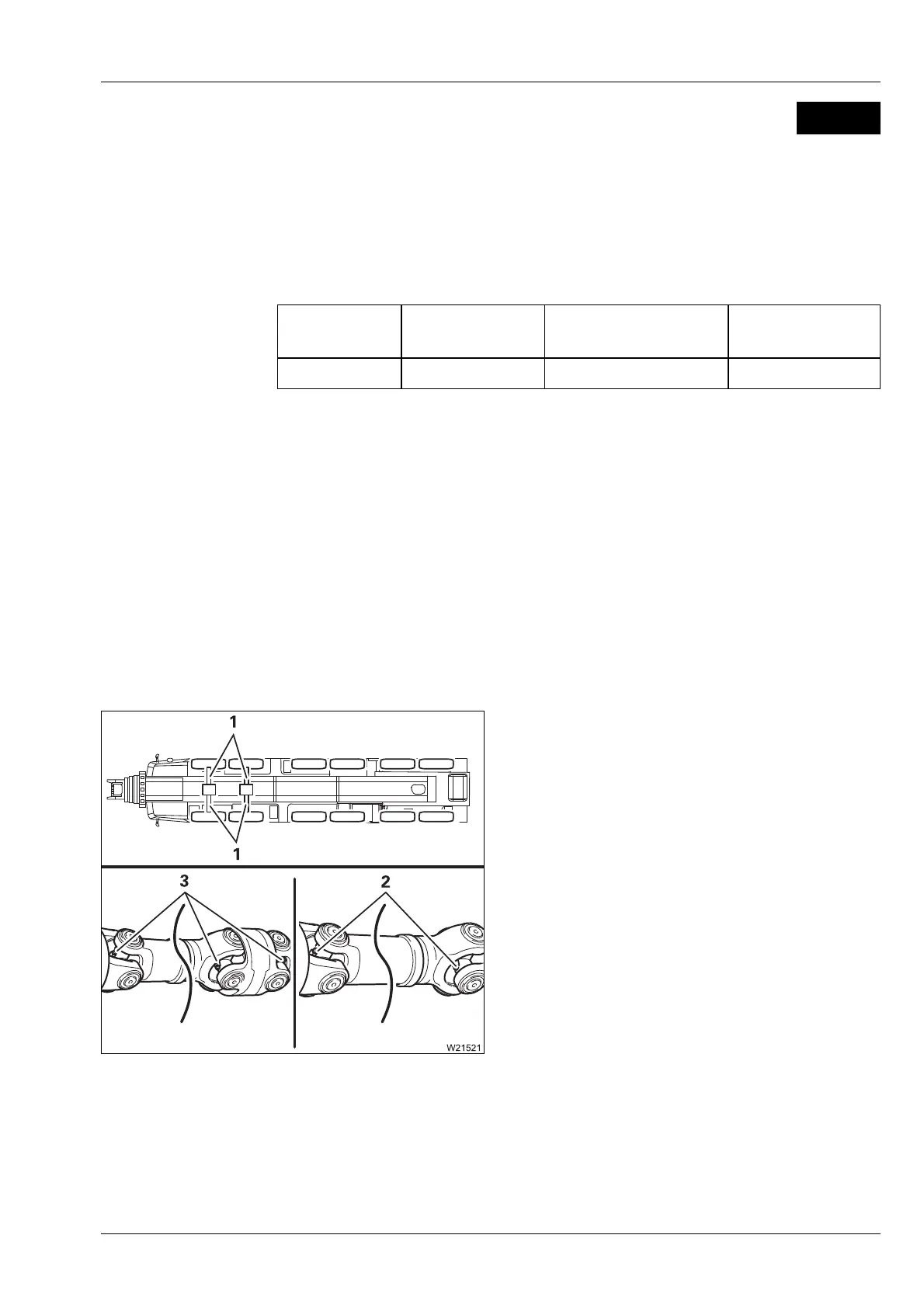

• Check which drive shafts (1) have lubricat-
ing nipples (2) and (3).
• Clean the lubricating nipples (2) and (3).
• Inject grease into the grease nipples until
grease escapes from the bearing points.
Do
not inject grease with excessive force,
otherwise the lip seals may be damaged.
• Remove any grease that has escaped.
M 1
Lubricating
grease
Designation
to DIN 51502
Specifications
Classification
GROVE part no.
Grease KP - 1K - 50 DIN 51825 03233369
