Maintenance work on the carrier
7.13 Compressed air system
16.11.2018
Maintenance manual 3 302 756 en 7 - 85
GMK6400
7.13 Compressed air system

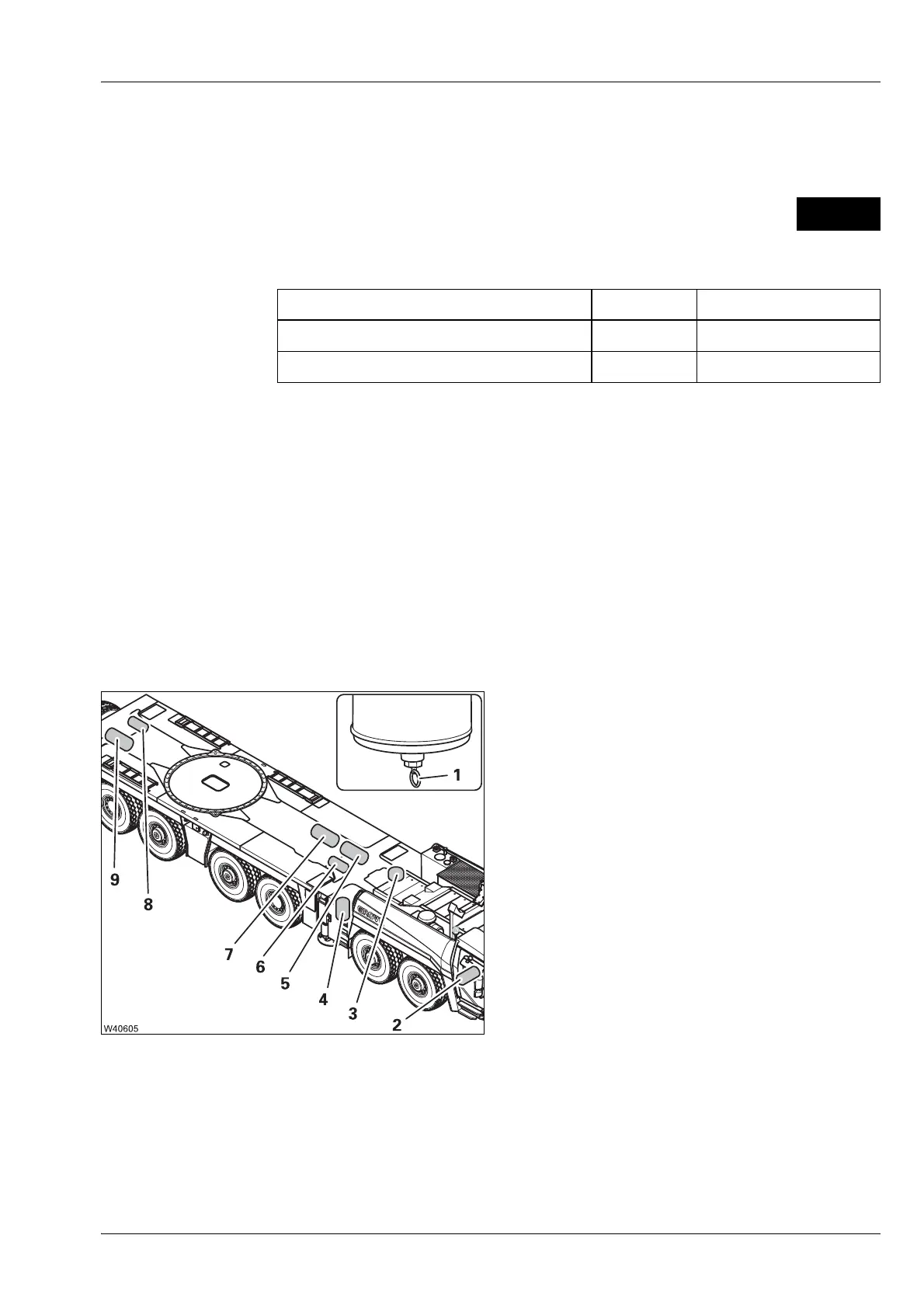

7.13.1 Draining water from the compressed air system
Spare parts
and
tools
Prerequisites – The truck crane must be raised on outriggers or parked over an inspection
pit.
– The compressed-air supply must be completely full; à Operating manual.
– The engine must not be running and must be secured against unauthor-
ised use; à p. 2 - 3.
Draining water
from the com
-
pressed air system
• Actuate the valves (1) on the air reser-
voirs (2) to (9).
The air reservoir (4) is present only with the
AdBlue system additional equipment;
à p. 7 - 1.
If a great deal of water escapes
• Have the compressed air drier checked or
replaced by
Manitowoc Crane Care or an
authorised GROVE dealer or your qualified
repair crew.
W
Designation Quantity GROVE part no.
Valve 8 01570750
Gasket 22 x 27 Cu DIN 7603 8 00117142
