8.6 Pump transfer case
8 - 36 3 302 756 en Maintenance manual
GMK6400
16.11.2018
8.6.3 Checking the oil level
Spare parts
and
tools
Prerequisites – The truck crane is supported and levelled with an outrigger span of at
least 8.70 x 2.71 m (28.5
x 8.9 ft).
Checking the
oil
level
Preparation
• Start the engine from the crane cab.
• Raise and lower the telescopic boom several times for about 3 minutes in
the permissible working area.
This brings the gear oil into circulation in the gear oil circuit directly
before the oil level check.
• Switch the engine off.
Checks

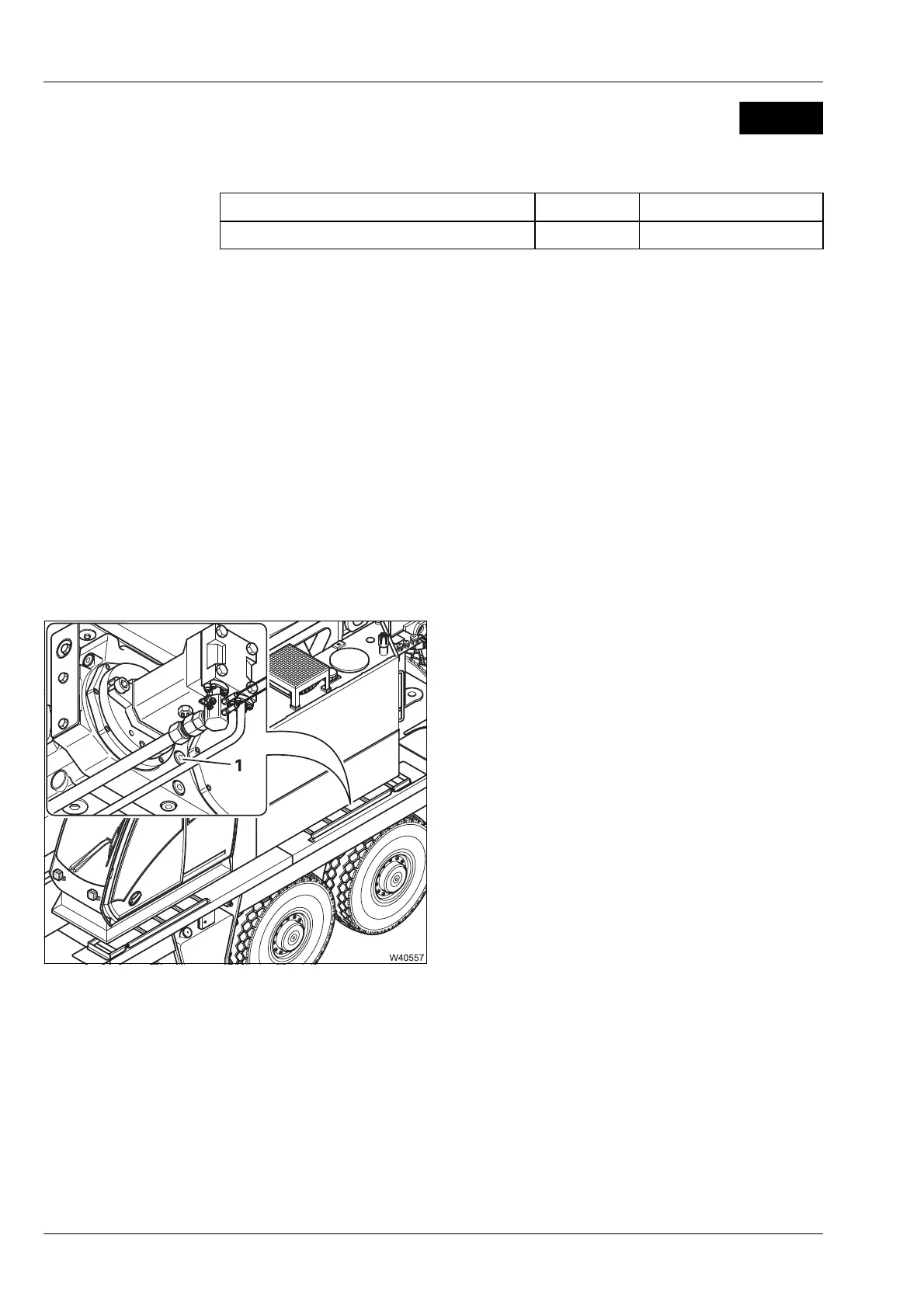

• Screw the plug out of the opening (1).
• Check whether the oil reaches the lower
edge of the opening (1).
• If the oil level is too low, fill it with oil via this
opening (1).
• Fit a new gasket and tighten the screw.
M 1
Designation Quantity GROVE part no.
Gasket 21 x 26 Cu DIN 7603 1 00117141
