Maintenance work on the carrier
7.6 Transmission
16.11.2018
Maintenance manual 3 302 756 en 7 - 43
GMK6400
7.6.2 Checking the transmission oil level
Spare parts
and
tools
– Receptacle, about 5 l (1.5 gal); à p. 2 - 4.
– Torque wrench for a torque of 60 Nm (44.2 lbf ft).
Prerequisites – The Intarder has not been actuated before checking the oil level (lever on
the steering column).
– The truck crane must be raised on outriggers or parked over an inspec-
tion pit.
– The truck crane must be level.
– The transmission oil has cooled down to a temperature below 40 °C
(104
°F).
– The truck crane is not running and is secured against unauthorised use;
à p. 2 - 3.
Oil level type

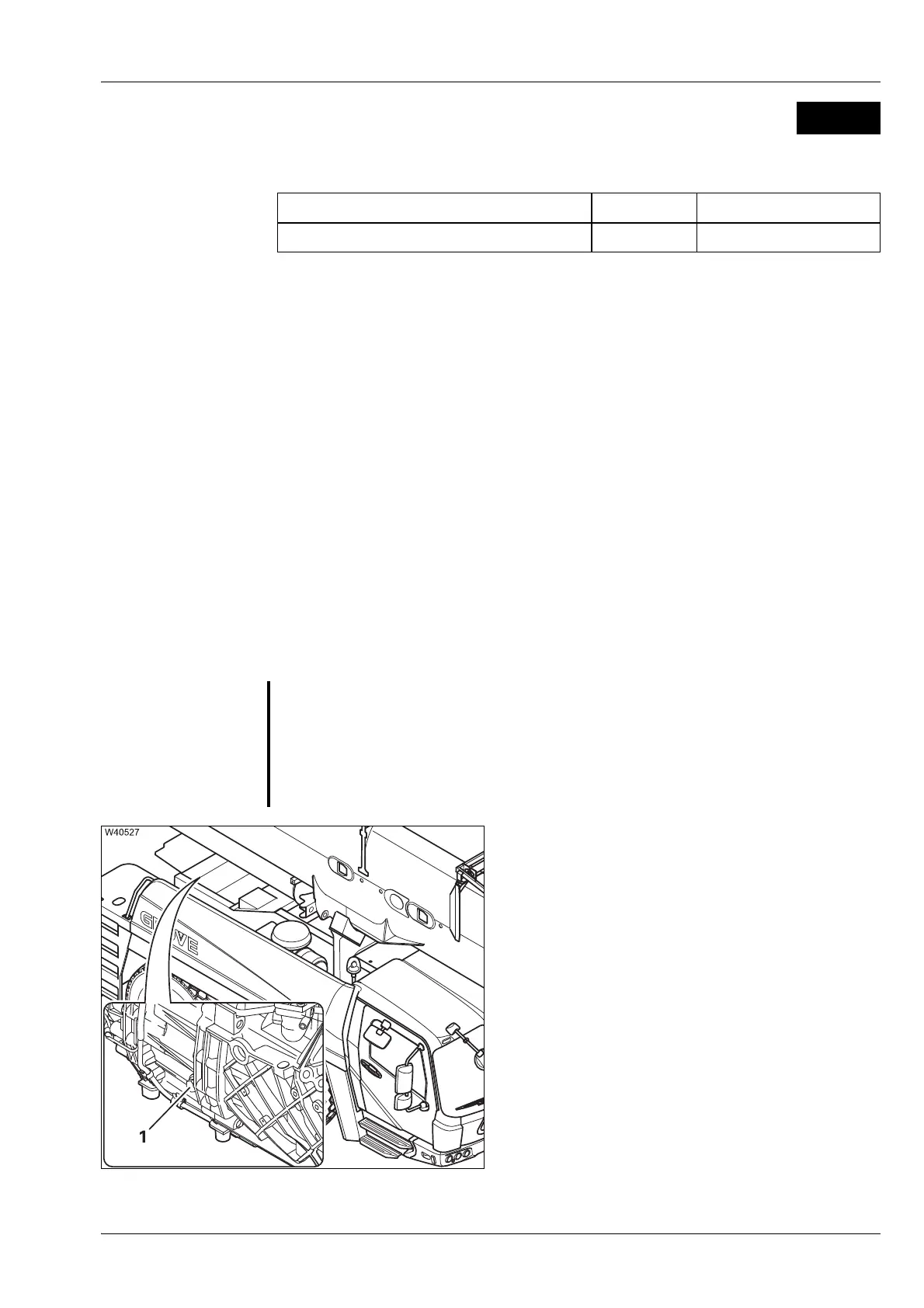

• Unscrew the screw (1).
• Check the oil level – it must reach to the
lower edge of the opening.
• Replace the seal and tighten the drain plug –
torque 60 Nm (44.2 lbf ft).
If the oil level is too low
• Top up the oil; à p. 7 - 45.
Designation Quantity GROVE part no.
O-ring 21 x 2 1 04155708
S
Risk of damage to the transmission!
If the oil level is too low or too high, this can lead to malfunctions and
transmission damage.
Check the oil level at the correct intervals. Do not actuate the Intarder im-
mediately before you check the oil level. The oil level in the housing cannot
be correctly adjusted in this case.
