Operations Parameter Monitoring (Numerics)

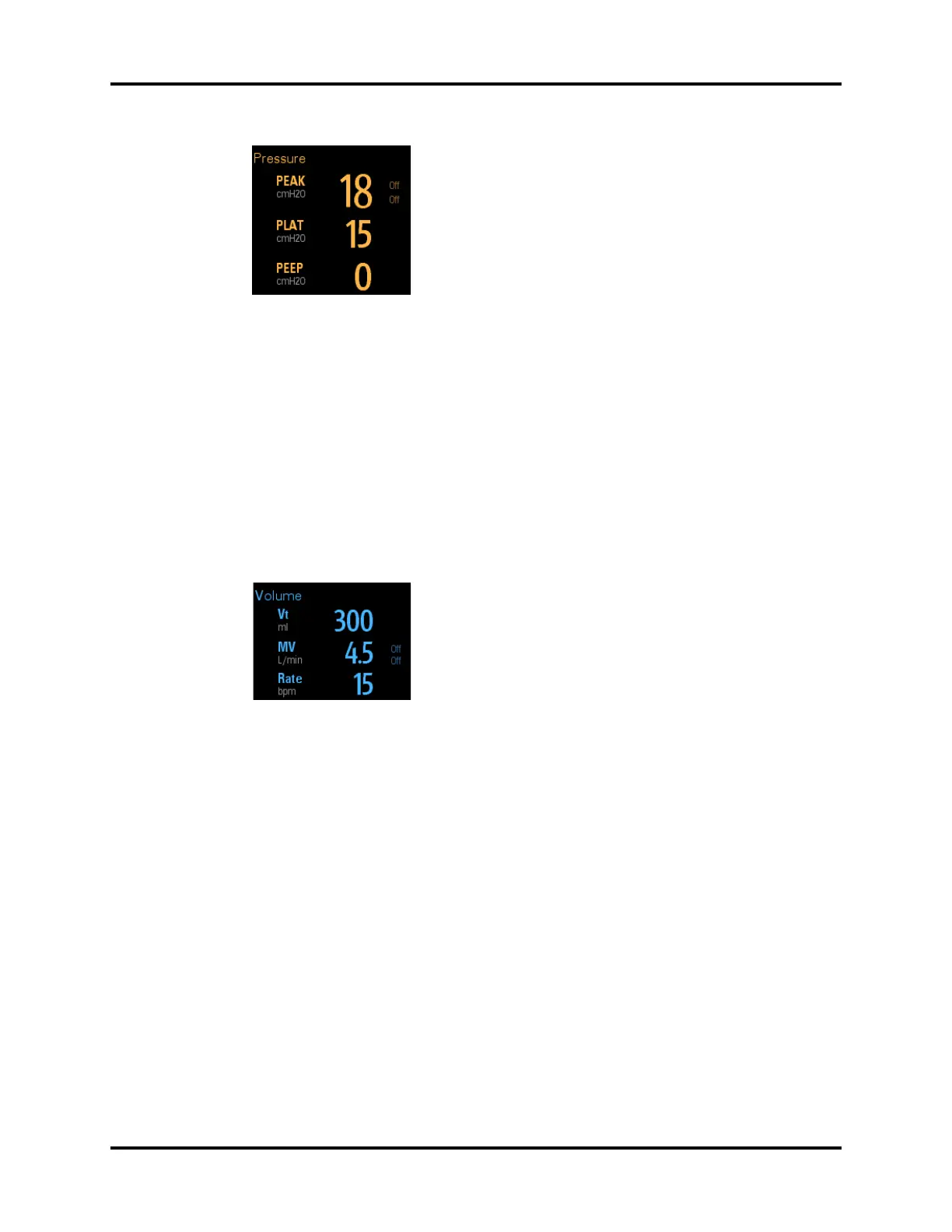

FIGURE 5-18 Pressure Parameter Group
5.9.2 Volume
The Volume parameter group consists of three(3) parameters:
• Tidal Volume (V
T
)
• Minute Volume (MV)
• Respiratory Rate (Rate)
If the parameter data is out of range, it displays as “– – –”.
NOTE: The high alarm limit for Minute Volume (MV) displays to the top right of
the reading. The low alarm limit for Minute Volume (MV) displays to the
bottom right of the reading.
FIGURE 5-19 Volume Parameter Group
5.9.3 Gas
The gas monitored parameter group consists of the following parameters:
• Fraction of inspired carbon dioxide and End-tidal carbon dioxide (FiCO
2
and EtCO
2
)
• Fraction of inspired oxygen and End-tidal oxygen (FiO
2
and EtO
2
)
• Fraction of inspired nitrous oxide and End-tidal nitrous oxide (FiN
2
O and EtN
2
O)
• Fraction of inspired anesthetic agent and End-tidal anesthetic agent (FiAA and EtAA, AA
stands for anesthetic agent)
• Minimum alveolar concentration (MAC)
•Age
If the parameter data is out of range, it displays as “– – –”.
NOTE: The high alarm limit is displayed to the top right of the reading. The low
alarm limit is displayed to the bottom right of the reading.
