A7™ Operating Instructions 046-004667-00 3 - 5
System Interface System Information Header

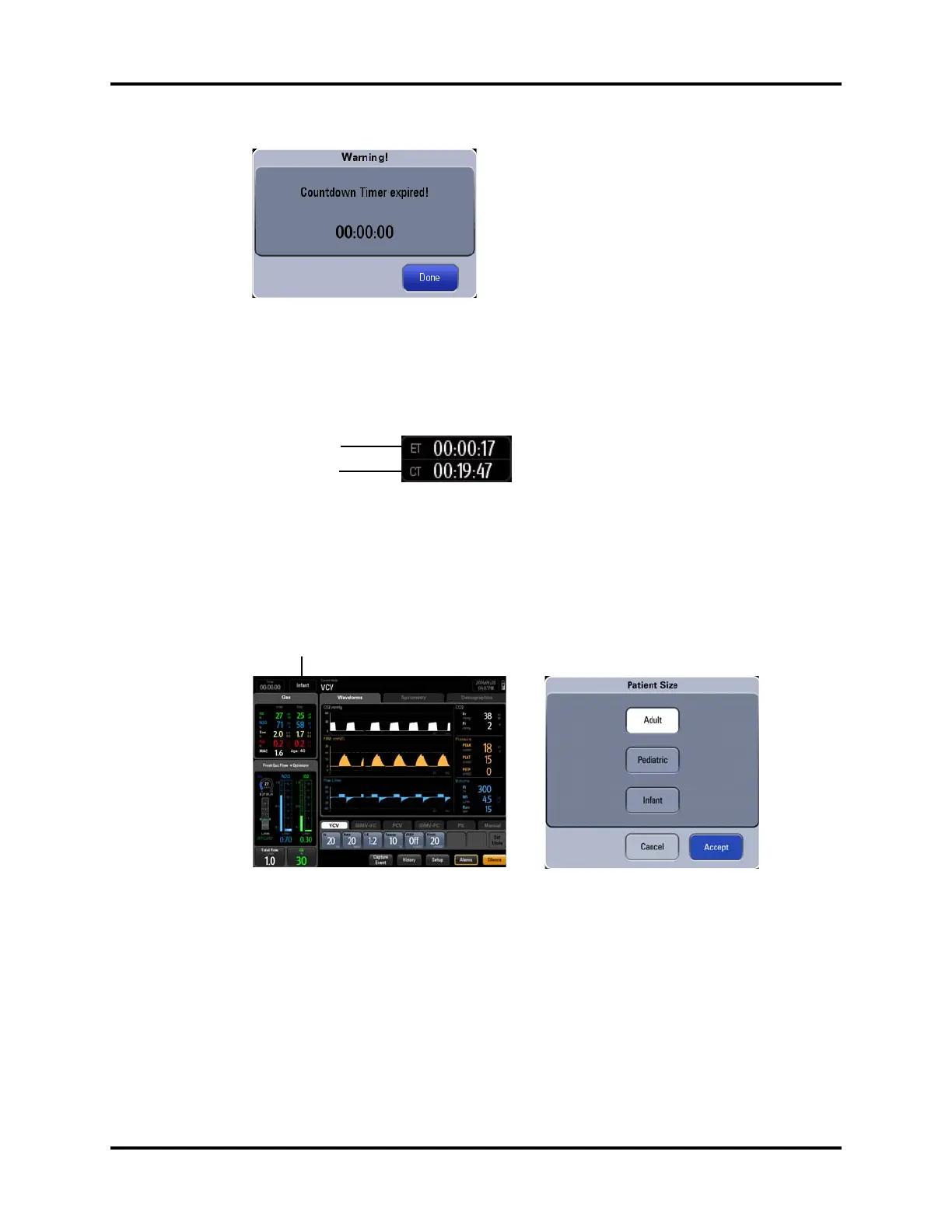

FIGURE 3-5 Countdown Timer Expired
Elapsed and Countdown Timer
Turn on both the elapsed and countdown timer, the figure below displays on the screen (see
FIGURE 3-6).
FIGURE 3-6 Elapsed and Countdown Timer Screen
3.2.2 Patient Size
Displays the currently selected patient size (Adult, Pediatric, or Infant). Select to change the patient
size when the A7 is in Standby mode, Manual mode or Monitor mode (available with the AG
module) (see FIGURE 3-7).
FIGURE 3-7 Patient Size Menu
3.2.3 Alarm and Prompt Messages
Displays physiological alarms, technical alarms, and prompt messages. The most recent highest
priority alarm is displayed at the top.
The remaining alarms are displayed in the lower area and grouped by priority. The most recent of
these alarms are displayed first.
Select this area to display a list of all Active Alarms. See ‘‘Alarms and Messages’’ on page 6-1 for tables
that list the individual messages and their associated priority levels. High priority messages are red.
Medium priority messages are yellow. Low priority messages are
cyan. Prompt messages are white
(see FIGURE 3-8).
Elapsed Timer
Countdown Timer
Patient Size
To Next Page
