S
tr
ucture and
Asse
mbly/D
isassembly
9-7
4.

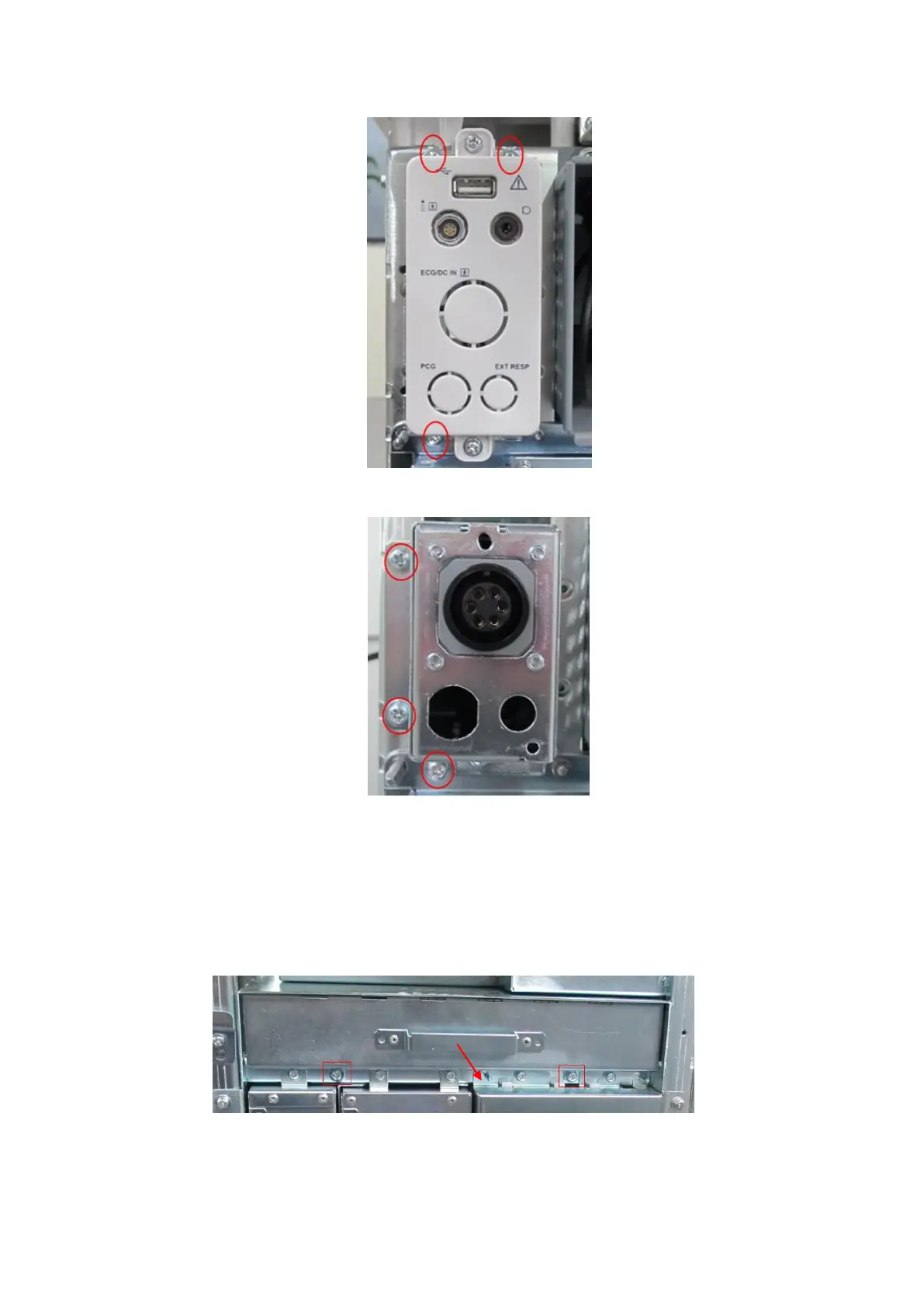

Unscrew three
M4 X
8 screws fixin
g ECG ass
embly
, and pull ECG as
sembly
out.
9.3.4
Outlet Fan
The disasse
mbly t
ool: cross-hea
ded screwdriv
er (M3,
M4),
an
ti-electrostatic glove
1.
Follow step 1
in Cha
pter 9.3.2
to remove le
ft side
p
anel.
2.
Unscrew
two
M4
X
8
screws
fixing
the
frame
of
the
f
an.
Hold
the
metal
handle
to
pull
the
fan
assembly
out.
3.
Unscrew 12 scr
ews fixin
g t
he fan.
154
