3-20 System Installation

NOTE:

Please do not switch [Disable Wifi]/[Enable Wifi] frequently. If [Start]/[Stop] button become

available after frequent switching or the DC-80A can no longer search any other hotspots,

please click [Disable Wifi] again and then click [Enable Wifi] to see if it works.

3.5.6 Network Configuration

◼ TCP/IP setting

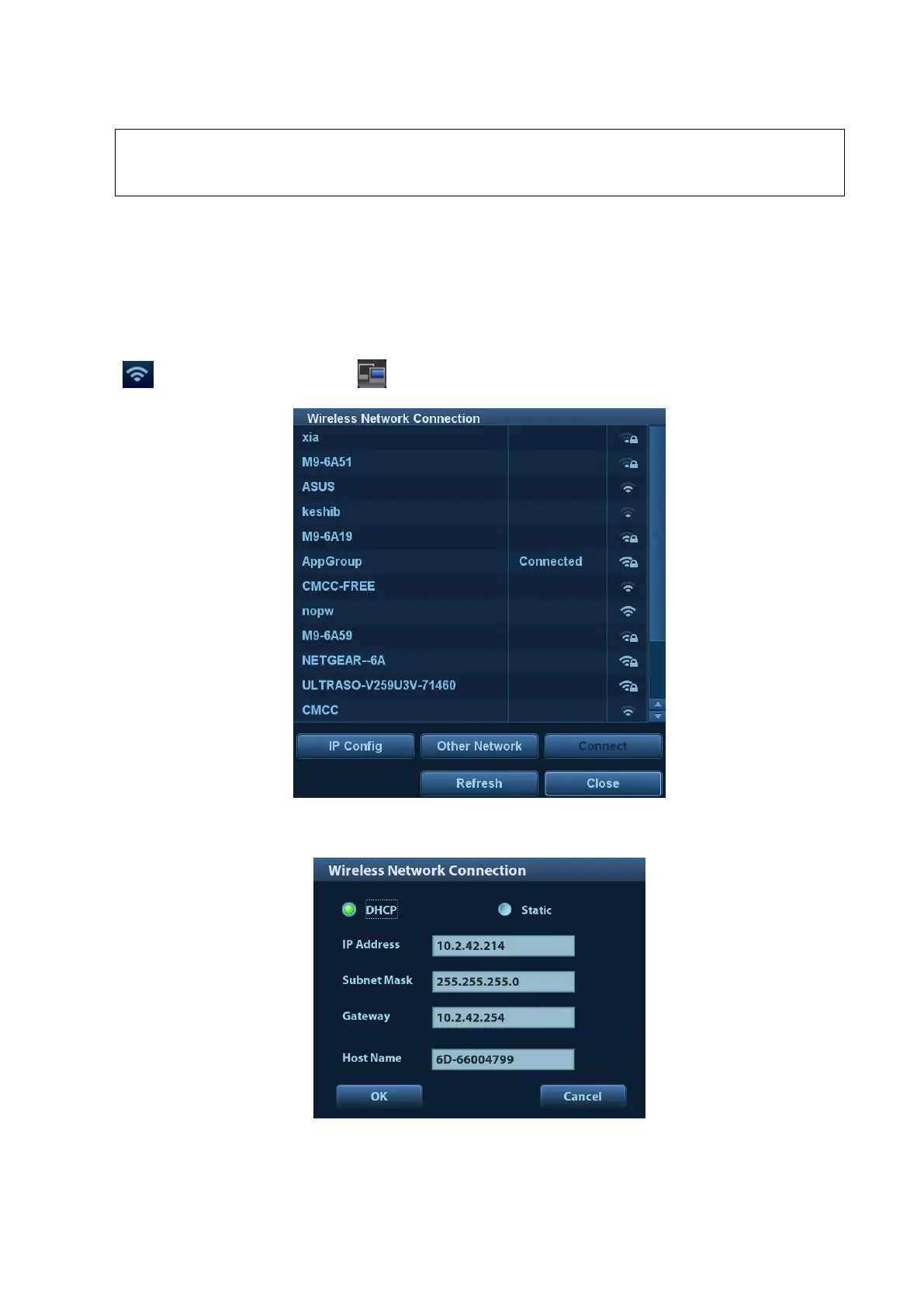

Click the network icon in the bottom-right corner of the screen (including wireless connection icon

and wired connection icon ) to enter TCP/IP setting:

a) Click [IP Config] to open the page:

b) Select “DHCP”, and then click [OK].
