Optional Installation/Assembly 10-11
10.2.6 Magnetic Transmitter Trolley Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), inner hex spanner (M6).

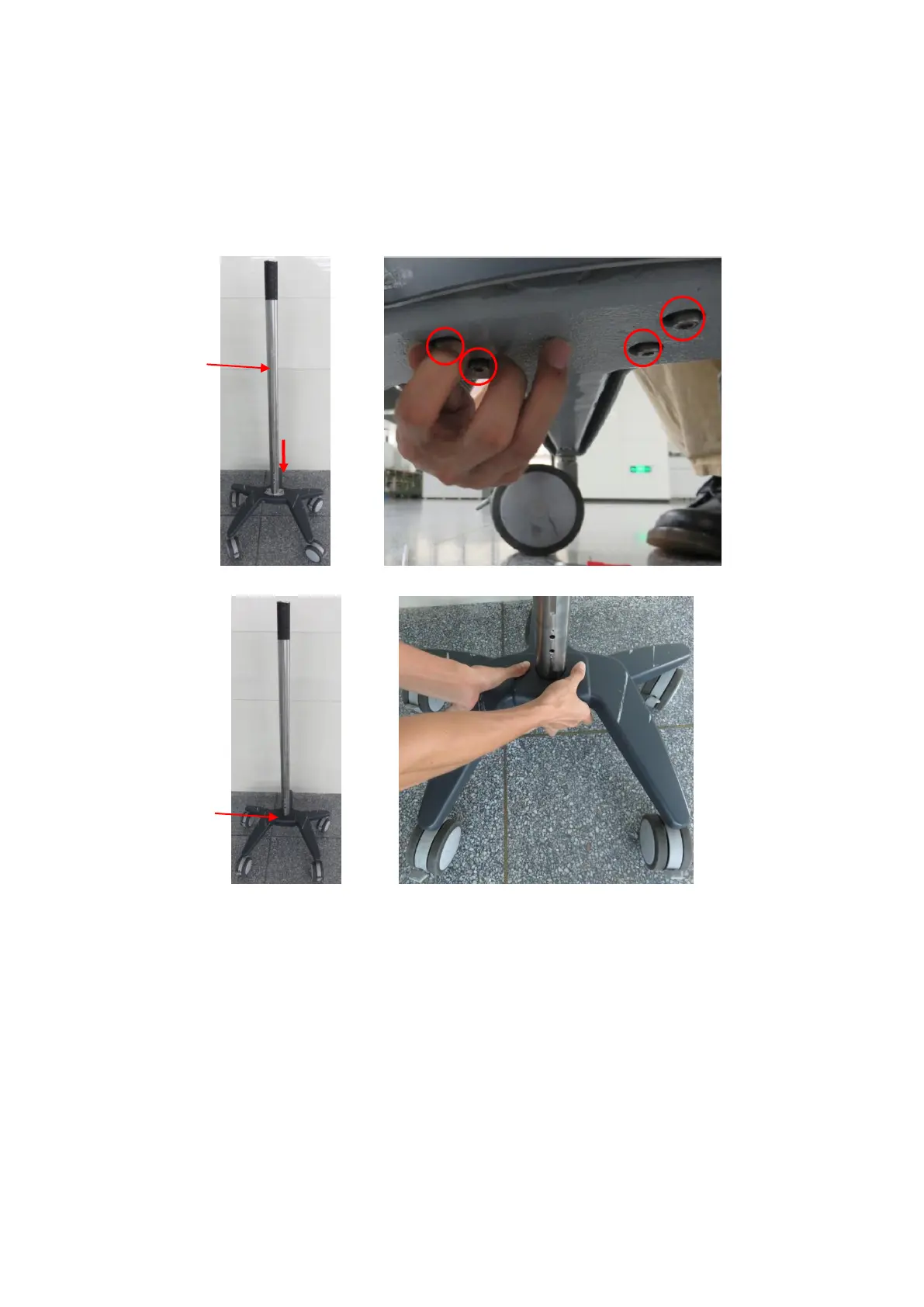

1. Lay the column onto the base assembly. Hold the column with one hand and use the other
hand to screw the M6X40 (*4) screws(with flash/ elastic washer) into the Endeavour base
assembly tightly with M6 inner hex spanner.
2. Cover the column with protective shield downwards.
3. Tighten screws M4X12 (*2) with cross-headed screwdriver (M3, M4) to fix the connector
assembly onto the column.
