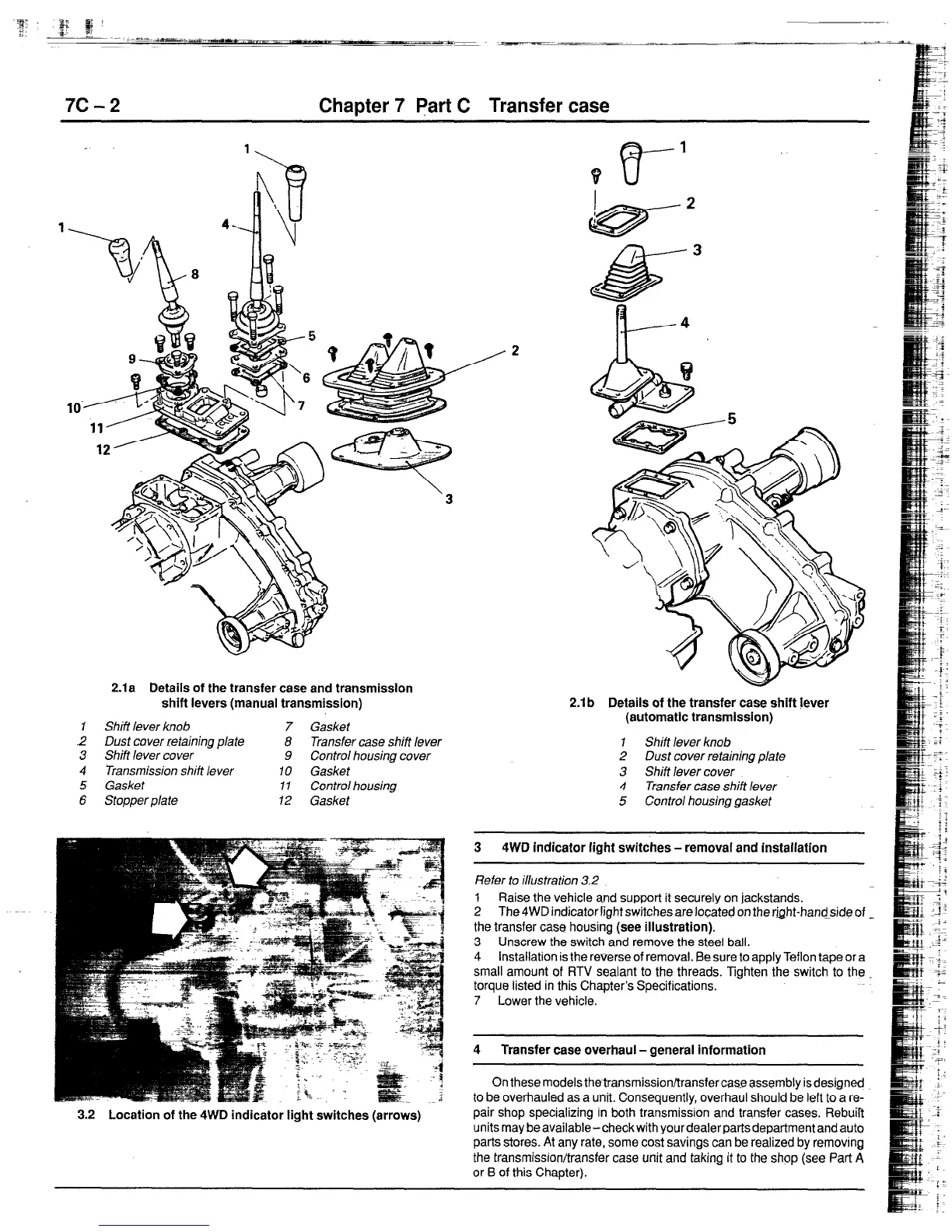

7C-2 Chapter 7 qart C Transfer case
10;
2.la Details of the transfer case and transmission
shift levers (manual transmission)
1 Shift Iever knob 7 Gasket
.2 Dust cover retaining plate 8 Transfer case shift lever
3 Shift lever cover 9 Controi housing cover
4 Transmission shift lever 10 Gasket
5 Gasket 11 Control housing
6 Stopper plate 72 Gasket
3.2 Location of the 4WD indicator light switches (arrows)
2.1 b Details of the transfer case shift fever
(automatic transmission)
1
Shift lever knob
2 Dust cover retaining plate
3 Shift lever cover
4 Transfer case shift /ever
5 Control housing gasket
3
4WD
indicator light switches - removal and installation
Refer to illustration 3.2
1 Raise the vehicle and support it securely on jackstands.
2 The4WD indicator Bght switches are located on the night-handside of I
the transfer case housing
(see illustration).
3 Unscrew the switch and remove the steel ball.
4 Installation is the reverse of removal. Se sure to apply Teflon tape or a
small amount of RTV sealant to the threads. Tighten the switch to the
torque listed in this Chapter’s Specifications.
7 Lower the vehicle.
4 Transfer case overhaul -general information
On these models the~transmission/transfer case assembly is designed
to be overhauled as a unit. Consequently, overhaul should be left to a re-
pair shop specializing in both transmission and transfer cases. FiebuiR
units may be available-check with your dealer parts department and auto
parts stores. At any rate, some cost savings can be realized by removing
the transmission/transfer case unit and taking it to the shop (see Part A
or 6 of this Chapter).
