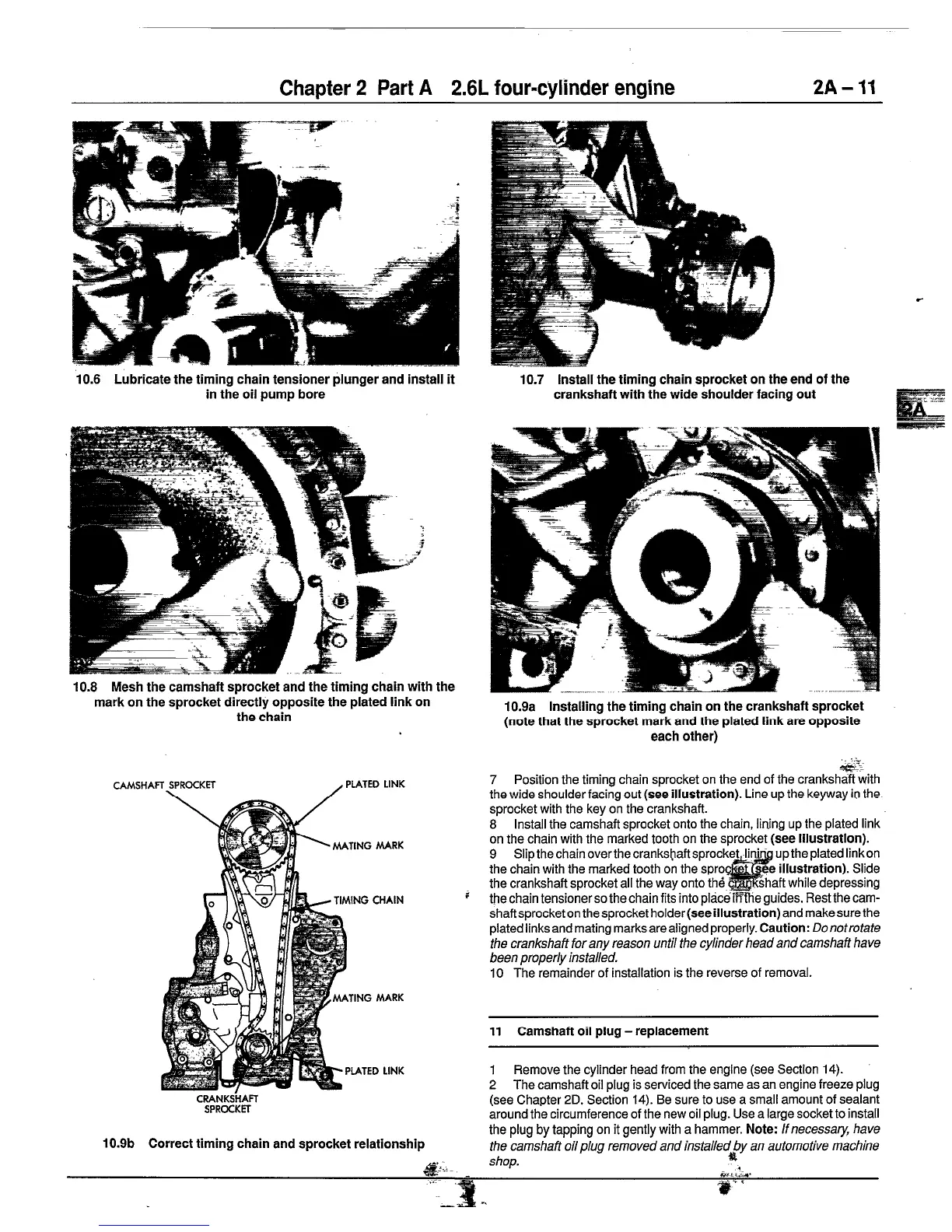

Chapter 2 Part A 2.6L four-cylinder engine
ZA-II
10.6 Lubricate the timing chain tensioner plunger and install it 10.7 install the timing chain sprocket on the end of the
in the oil pump bore crankshaft with the wide shoulder facing out
10.8 Mesh the camshaft sprocket and the timing chain with the
mark on the sprocket directly opposite the plated link on
the chain
CAMSHAFT SPROCKET
\
/
PLATED LINK
lO.Qb
lO.Qa Installing the timing chain on the crankshaft sprocket
(note that the sprocket mark and the plated link are opposite
each other)
SC&:
7 Position the timing chain sprocket on the end of the crankshaft with
the wide shoulder facing out (see illustration). Line up the keyway in the
sprocket with the key on the crankshaft.
8 Install the camshaft sprocket onto the chain, lining up the plated link
on the chain with the marked tooth on the sprocket (see illustration).
9 Slipthechainoverthecrankshaftsproc up the plated linkon
the chain with the marked tooth on the spro
illustration). Slide
the crankshaft sprocket all the way onto the
ft while depressing
MATING MARK
ING CHAIN
MATING MARK
I
tt-ie chain tensioner so the chain fits into place fitthe guides. l-test the cam-
shaft sprocket on the sprocket holder(see illustration) and make sure the
plated links and mating marksarealigned properly. Caution: Donorrotate
the crankshaft for any reason until the cylinder head and camshaft have
been properly installed.
10 The remainder of installation is the reverse of removal.
11 Camshaft oil plug-replacement
CRANKShAFT
SPROCKET
-PLATED LINK
b
1 Remove the cylinder head from the engine (see Section 14).
2 The camshaft oil plug is serviced the same as an engine freeze plug
(see Chapter 2D, Section 14). Be sure to use a small amount of sealant
around the circumference of the new oil plug. Use a large socket to install
Correct timing chain and sprocket relationship
the plug by tapping on it gently with a hammer. Note: If necessary have
the camshaft oil plug removed and installed$y an automotive machine
$& _
shop.
&.>.
