Mitsubishi S6R2 Series User Manual

6-19
Chapter 6 INSPECTION AND REPAIR OF BASIC ENGINE

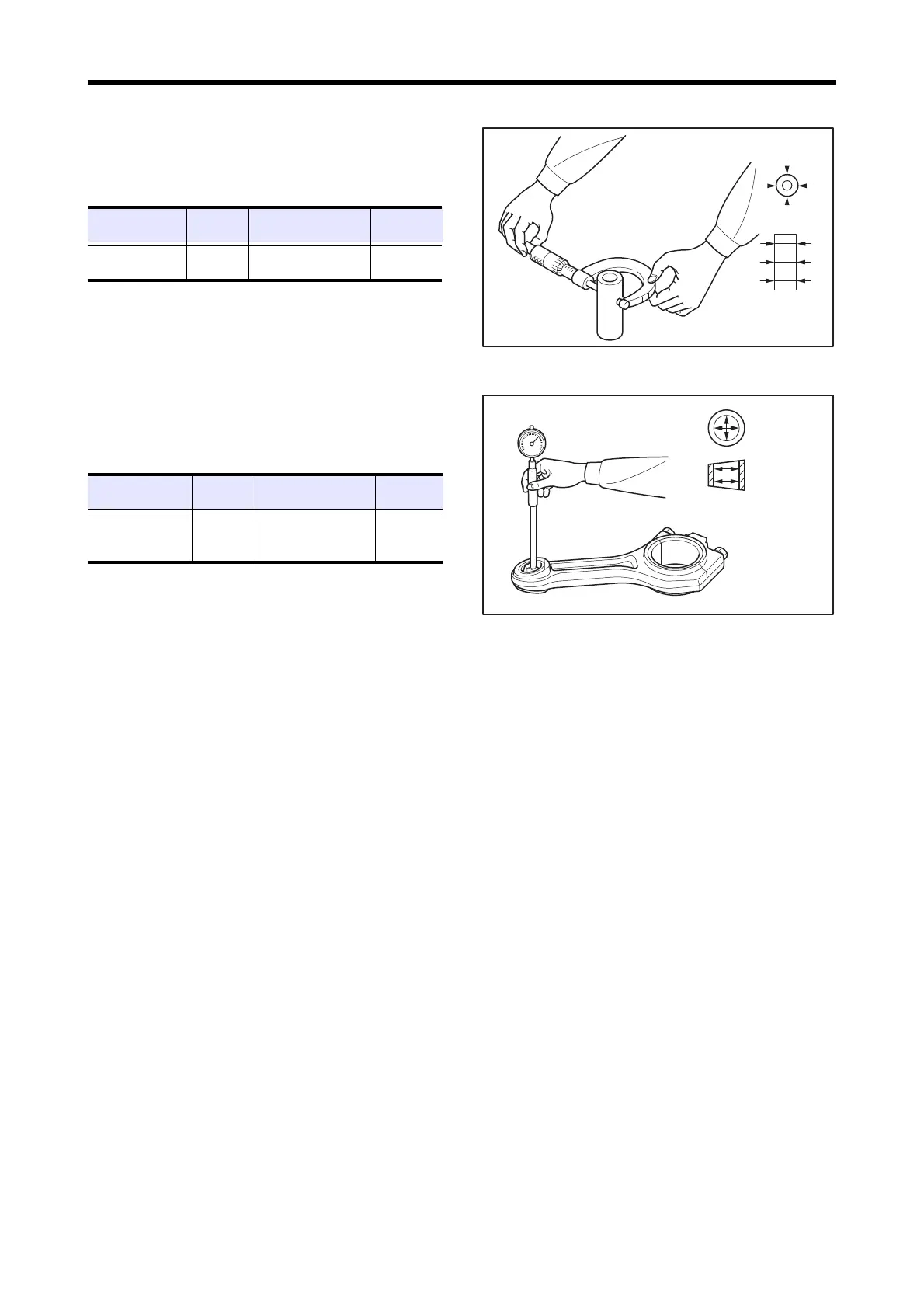

4.8 Piston Pin Outside Diameter - Measure
Measure the piston pin outside diameter.
If the value exceeds the limit, replace the piston pin with a
new one.
Piston Pin Outside Diameter - Measure
4.9 Connecting Rod Bushing Inside Diameter - Measure
Measure the inside diameter of the connecting rod bushing.
If the value exceed the limit, replace the connecting rod
bushing with a new one.
Connecting Rod Bushing Inside Diameter - Measure
Item
Nominal
value
Standard value Limit value
Piston pin outside
diameter
ø70 mm
[2.76 in.]
69.987 to 70.000 mm
[2.7554 to 2.7559 in.]
69.970 mm
[2.7547 in.]
Measurement
direction
Measurement
point
Item
Nominal
value
Standard value
Limit
value
Inside diameter of
connecting rod
bushing
ø70 mm
[2.76 in.]
70.020 to 70.040 mm
[2.7567 to 2.7575 in.]
70.070 mm
[2.7587 in.]
Measurement
direction
Measurement
point
