Chapter 13 ADJUSTMENT AND OPERATION
Chapter 13 ADJUSTMENT AND OPERATION
1. Engine - Adjust

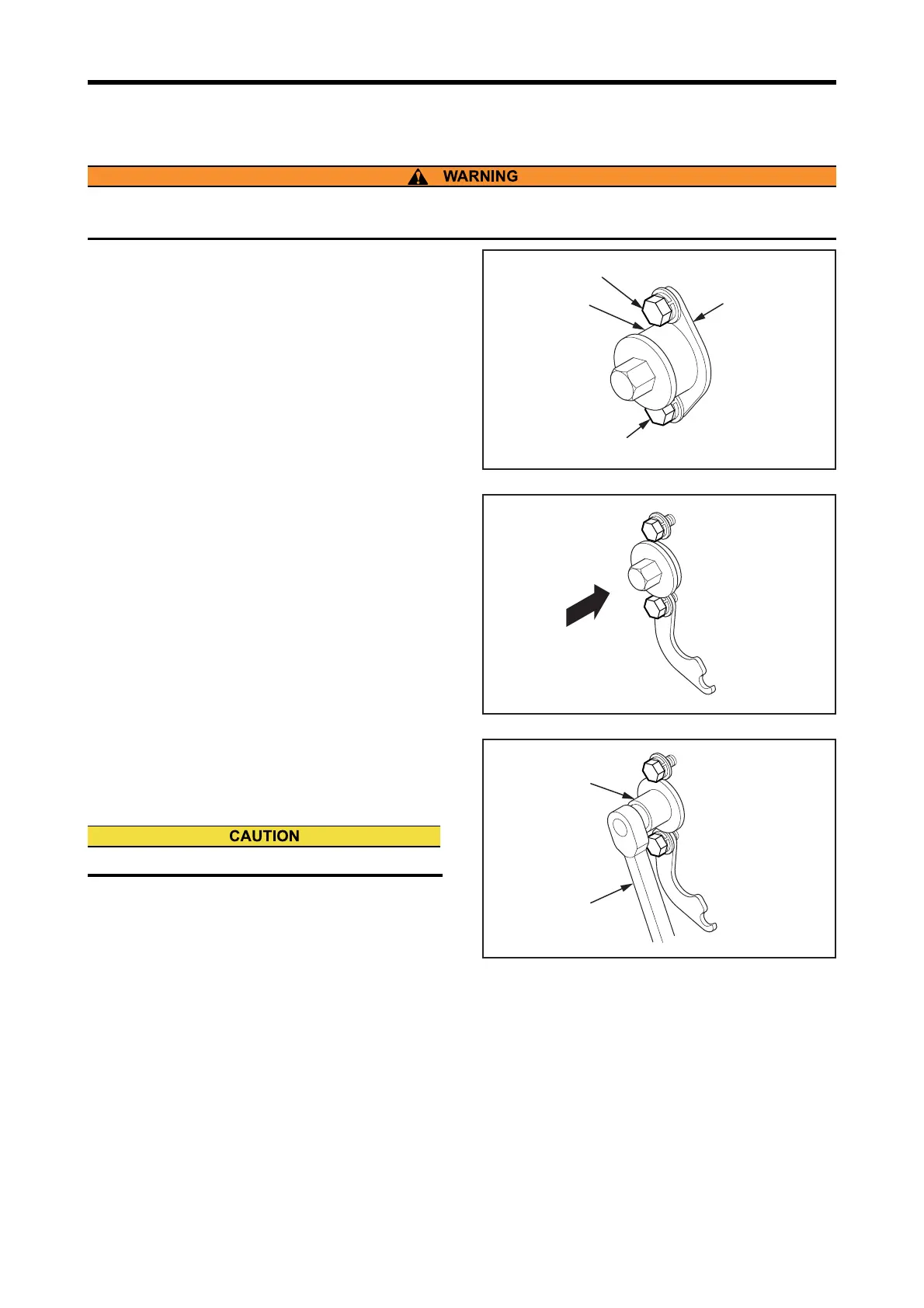

1.1 Turning Gear - Use
(1) Loosen two bolts, and remove the plate from slot of
shaft.
Turning Gear - Use (for Engine Running)
(2) Push-in the shaft all the way so that it engages with ring
gear.
Turning Gear - Use (Push-in)
(3) Using a socket and ratchet handle, rotate the shaft for
turning crankshaft.
(4) After the turning, pull-out the shaft, insert the plate into
slot of shaft, and tighten the bolts.
Turning Gear - Use (for Turning)
Before starting the engine, make sure that the turning gear is in the engine running position. If the engine is started
with the turning gear engaged (pushed-in position), it will result in personal injury as well as damage to ring gear.
Bolt
Bolt
Plate
Shaft
Make sure that the plate is firmly fitted in slot of shaft.
Socket
Ratchet handle
