Chapter 7 ASSEMBLY OF BASIC ENGINE

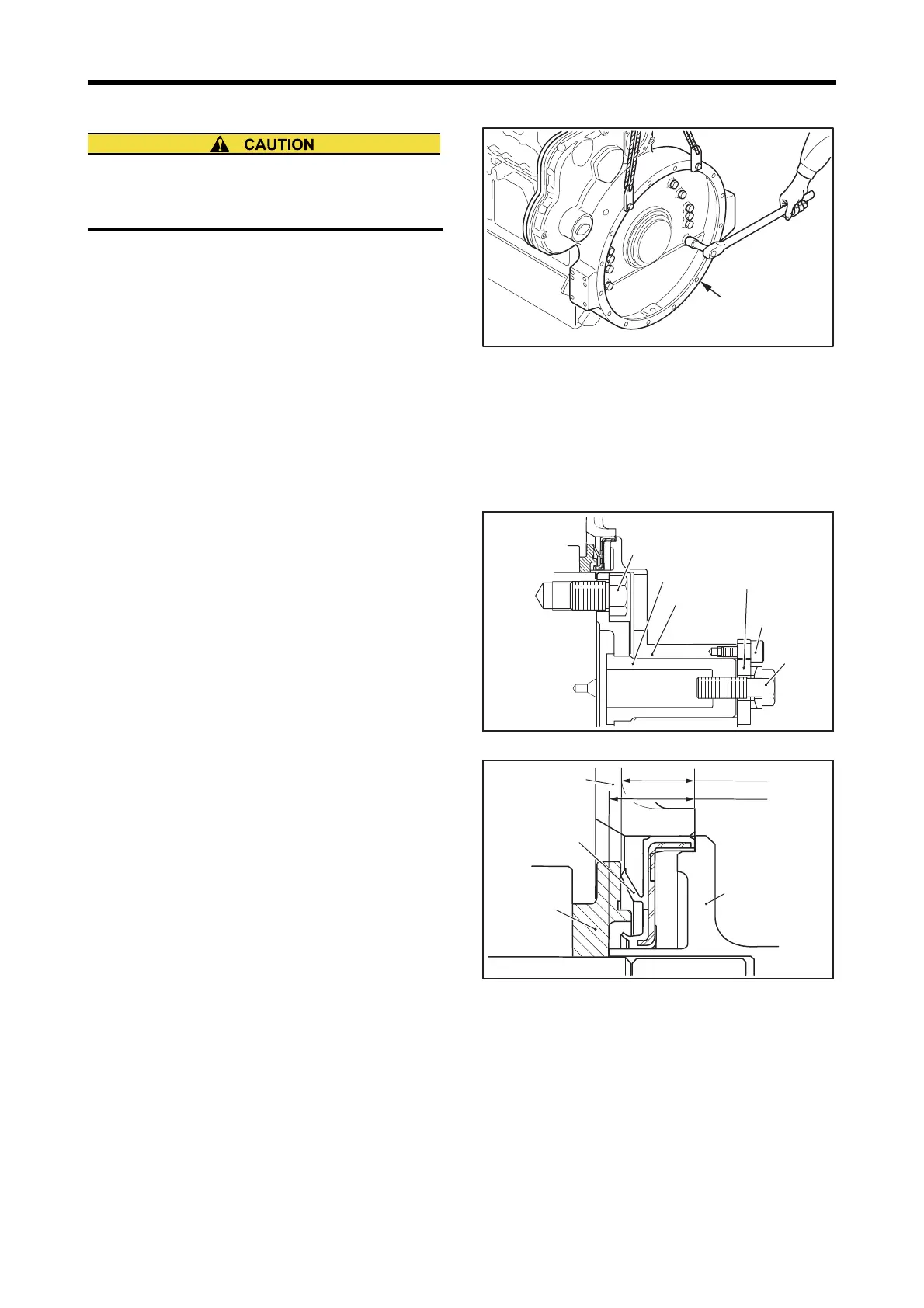

4.10 Timing Gear Case - Install
(1) Apply sealant (ThreeBond 1211) to the rare plate pack-
ing mating surface, and install the packing.
(2) Apply sealant (ThreeBond 1211) to the packing mating
surface to timing gear case.
(3) Set the eye bolt to timing gear case, align it with the
dowel pins, and install the timing gear case.
(4) Tighten the bolts to the specified torque.
(5) Cut off excessive packing carefully from the bottom of
crankcase.
Timing Gear Case - Install
4.11 Rear Oil Seal - Install
Use the rear seal installer assembly to install the rear oil
seal.
(1) Apply clean engine oil evenly to the oil seal lip.
Note: Pay attention to the installing side of oil seal, and be
careful not to damage the oil seal.
(2) Install the guide flange to the crankshaft rear end face,
and fix it with insert bolts.
(3) Set the oil seal to insert and install it to the guide flange.
(4) Tighten the bolt on the guide flange to insert the oil seal
into timing gear case.
(5) Remove the installer assembly.
Rear Oil Seal - Install (1)
Rear Oil Seal - Install (2)
Be careful not to drop or bump the timing gear case. It
will result in personnel injury as well as damage of the
timing gear case.
255 ± 12.8 N·m
{26 ± 1.3 kgf·m}
[188 ± 9.4 lbf·ft]
Timing gear case
Bolt
Socket bolt
Insert bolt
Guide flange
Insert
Swing washer
Rear seal installer assembly
P/N:37591-06010
Timing gear case
Oil seal
Slinger
Rear seal installer
assembly
P/N:37591-06010
15.5 mm [0.61 in.]
17.5 ± 0.2 mm
[0.689± 0.008 in.]
To Next Page
