Chapter 9 LUBRICATION SYSTEM

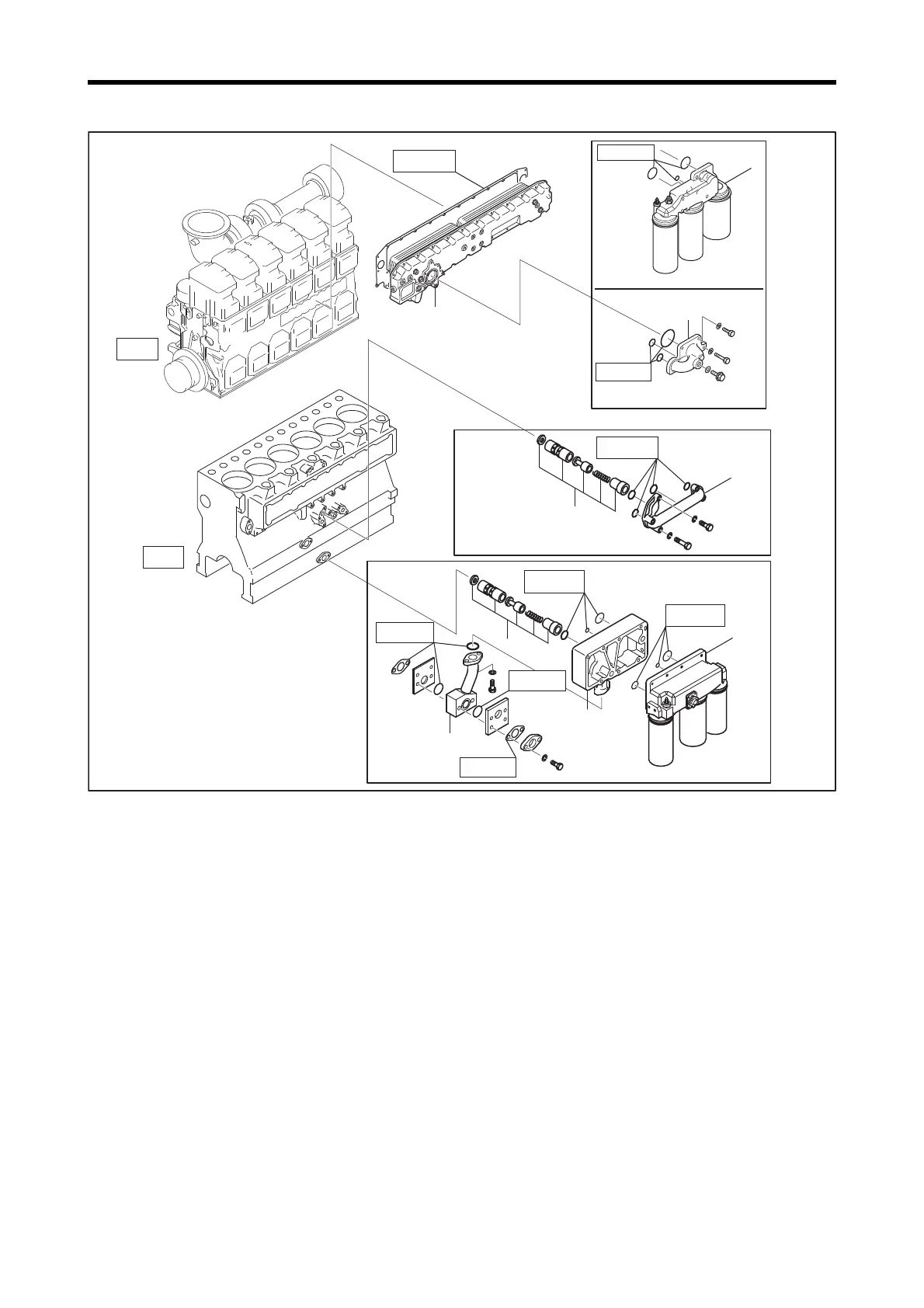

1.2 Lubrication System - Remove and Inspect (2)
Lubrication System - Remove and Inspect (2)
1
2
1
6
5
3
3
4
2
Right side oil filter spec
(Changeover-type oil filter)
Left side oil filter spec
Left side oil filter spec
Right side oil filter spec
Replace
Replace
Front
Rear
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Removing Sequence
1 Oil filter
2 Relief valve pipe
(Left side oil filter spec)
Oil filter adapter
(Right side oil filter spec)
3 Relief valve
4 Emergency oil pipe
(Right side oil filter spec)
5 Oil cooler cover
(Left side oil filter spec)
6 Oil cooler (Approx 19 kg [42 lb])
