Chapter 12 AIR START SYSTEM

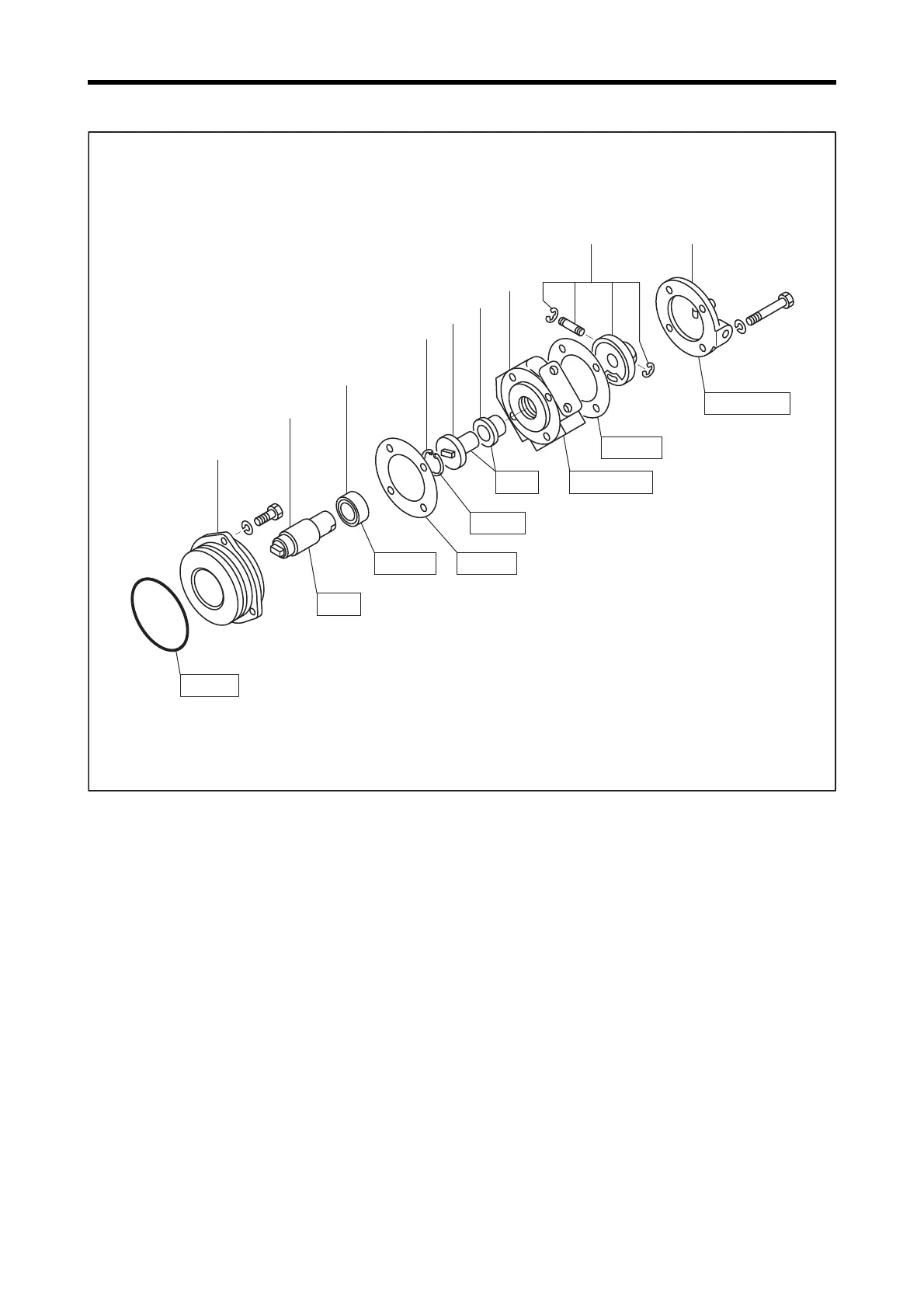

2.6 Distributer Valve - Disassemble and Inspect
Distributer Valve - Disassemble and Inspect
13
4
5
6
7
9
8
2
Replace
Wear
ReplaceRotation
Settling
Wear
Replace
Crack, wear
Crack, wear
Air direct starting spec
Removing Sequence
1 Case cover
2 Distributer spacer
3 Distributer valve, lock pin, E-ring
4 Snap ring
5 Shaft
6 Bushing
7 Distributer valve
8 Ball bearing
9 Drive shaft
