5-11

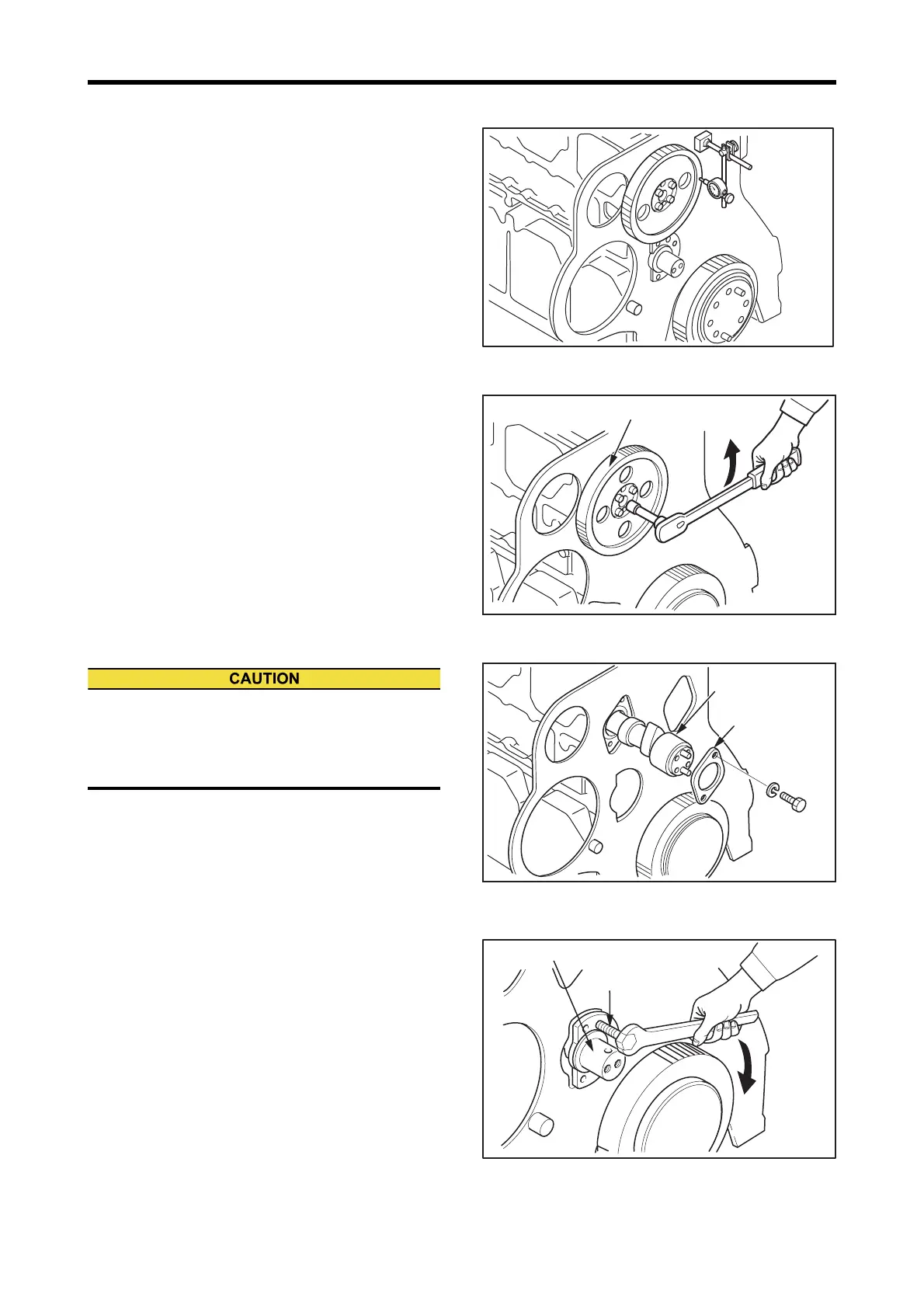

Chapter 5 DISASSEMBLY OF BASIC ENGINE
2.8 Camshaft End Play - Measure
Measure the camshaft end play, and know the current condi-
tion.
For the measurement procedure, refer to "Camshaft End
Play - Measure" of "ASSEMBLY OF BASIC ENGINE."
Camshaft End Play - Measure
2.9 Camshaft Gear - Remove
Remove the camshaft gear from the camshaft.
Camshaft Gear - Remove
2.10 Camshaft - Remove
(1) Remove the thrust plate.
(2) Support the camshaft through the side cover opening,
remove the camshaft from the crankcase.
Note: Before removing camshaft, remove the oil seal case,
oil seal and coupling from the cam shaft front end.
Camshaft - Remove
2.11 Idler Shaft - Remove
Screw two jack bolts evenly into the jack bolt holes, and
remove the idler shaft.
Idler Shaft - Remove
Camshaft gear
Support the camshaft with a wood stick or the like
through the side cover. Remove the camshaft paying
attention not to damage the crank case and camshaft
bushing.
Camshaft
Thrust plate
Jack bolt
(M10 × 1.25 mm)
Idler shaft
To Next Page
