5-15
Chapter 5 DISASSEMBLY OF BASIC ENGINE

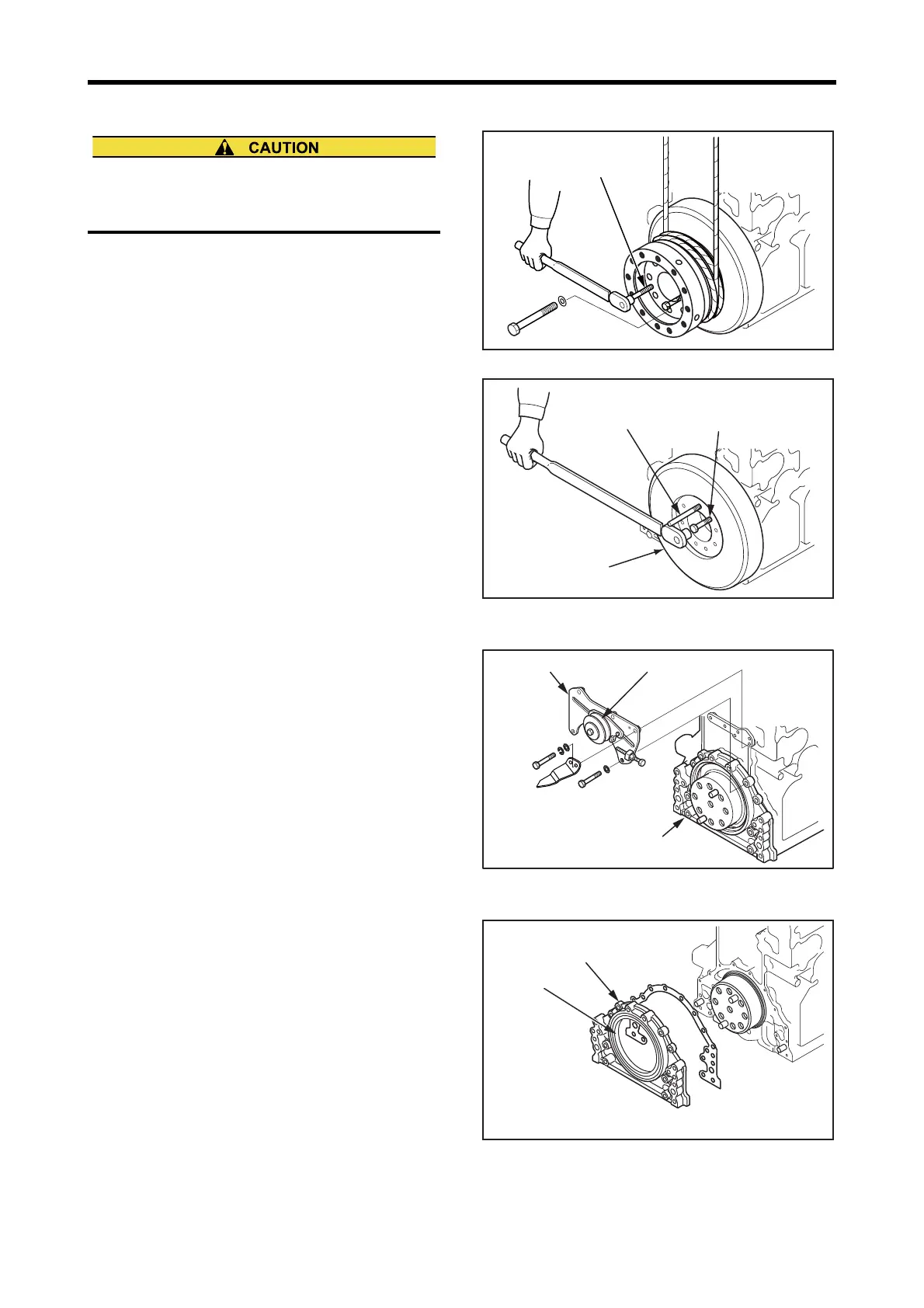

3.3 Front Pulley, Damper and Crankshaft Pulley - Remove
(1) Install the guide bolt to damper mounting thread on the
crankshaft.
(2) Hitch a rope or the like to the groove of front pulley to
support. Screw two jack bolts evenly into the jack bolt
holes, and remove the pulley.
(3) While supporting the damper with a sling, screw two
jack bolts evenly into the jack bolt holes, and remove
the damper.
(4) Remove the crankshaft pulley from the crankshaft.
Front Pulley - Remove
Damper - Remove
3.4 Tension Pulley - Remove
Remove the tension pulley and tension plate from the front
cover and bracket.
Tension Pulley - Remove
3.5 Front Cover - Remove
(1) Remove the front cover from the crankcase.
(2) Remove the oil seal from the front cover.
Front Cover - Remove
Be careful not to drop or bump the damper. It can,
not only cause damage to parts, but also lead to per-
sonnel injury.
Jack bolt
(M10×1.25 mm)
Damper
Jack bolt
P/N:64362-68500
(M12×1.25 mm)
Guide bolt
Tension pulley
Tension plate
Front cover
Front cover
Oil seal
