Chapter 12 AIR START SYSTEM
2. Air Start System - Disassemble, Inspect and Assemble
2.1 Magnetic Valve - Disassemble and Inspect

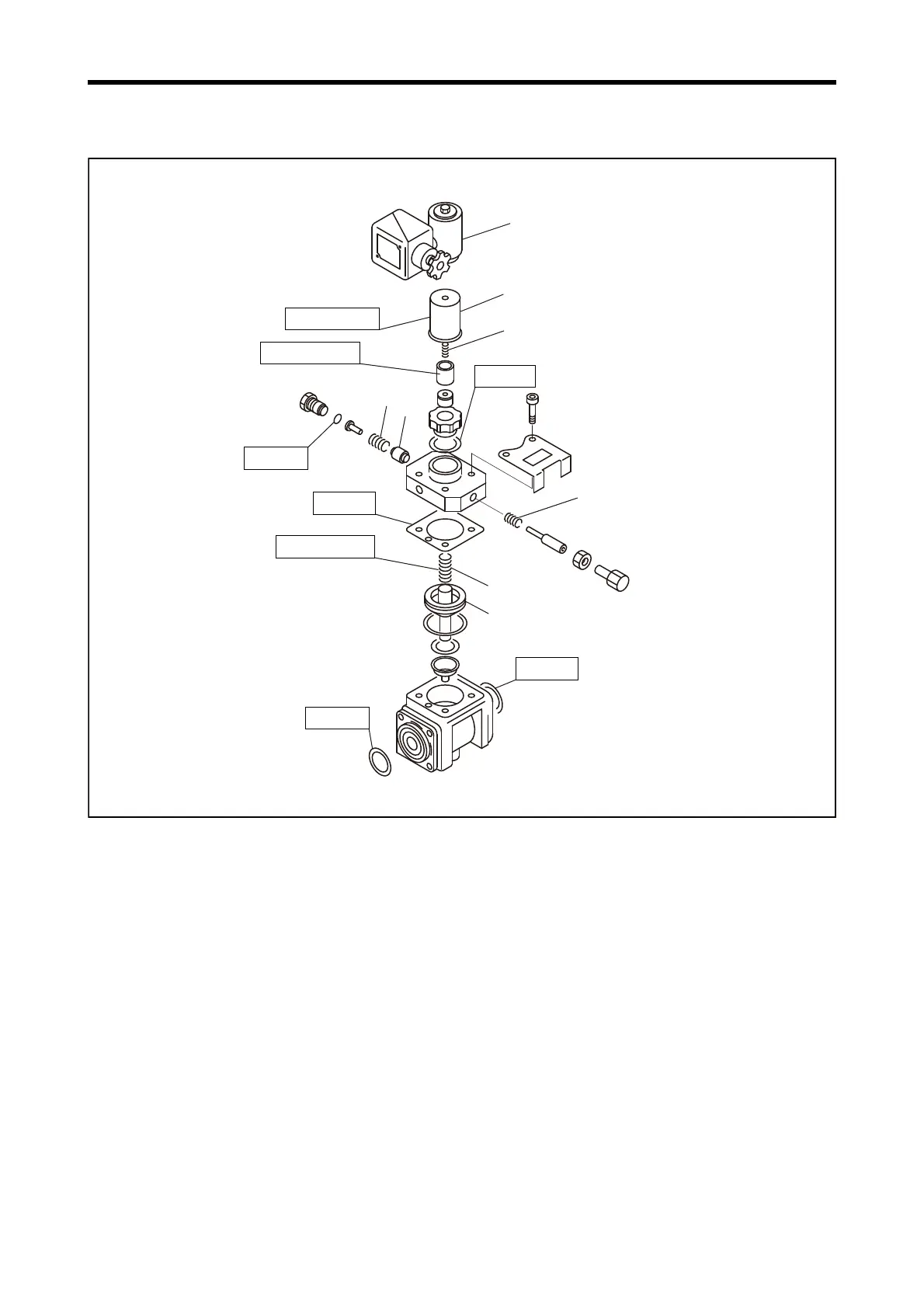

Magnetic Valve - Disassemble and Inspect
1
2
3
8
6
7
4
5
Replace
Replace
Replace
Replace
Settling, crack
Disconnection
Replace
Settling, crack
Air direct starting or air starter moter starting spec
Removing Sequence
1 Magnetic valve
2 Coil
3 Plunger spring
4 Piston spring
5 Piston assembly
6 Valve
7 Return spring
8 Valve spring
