10-13
Chapter 10 COOLING SYSTEM

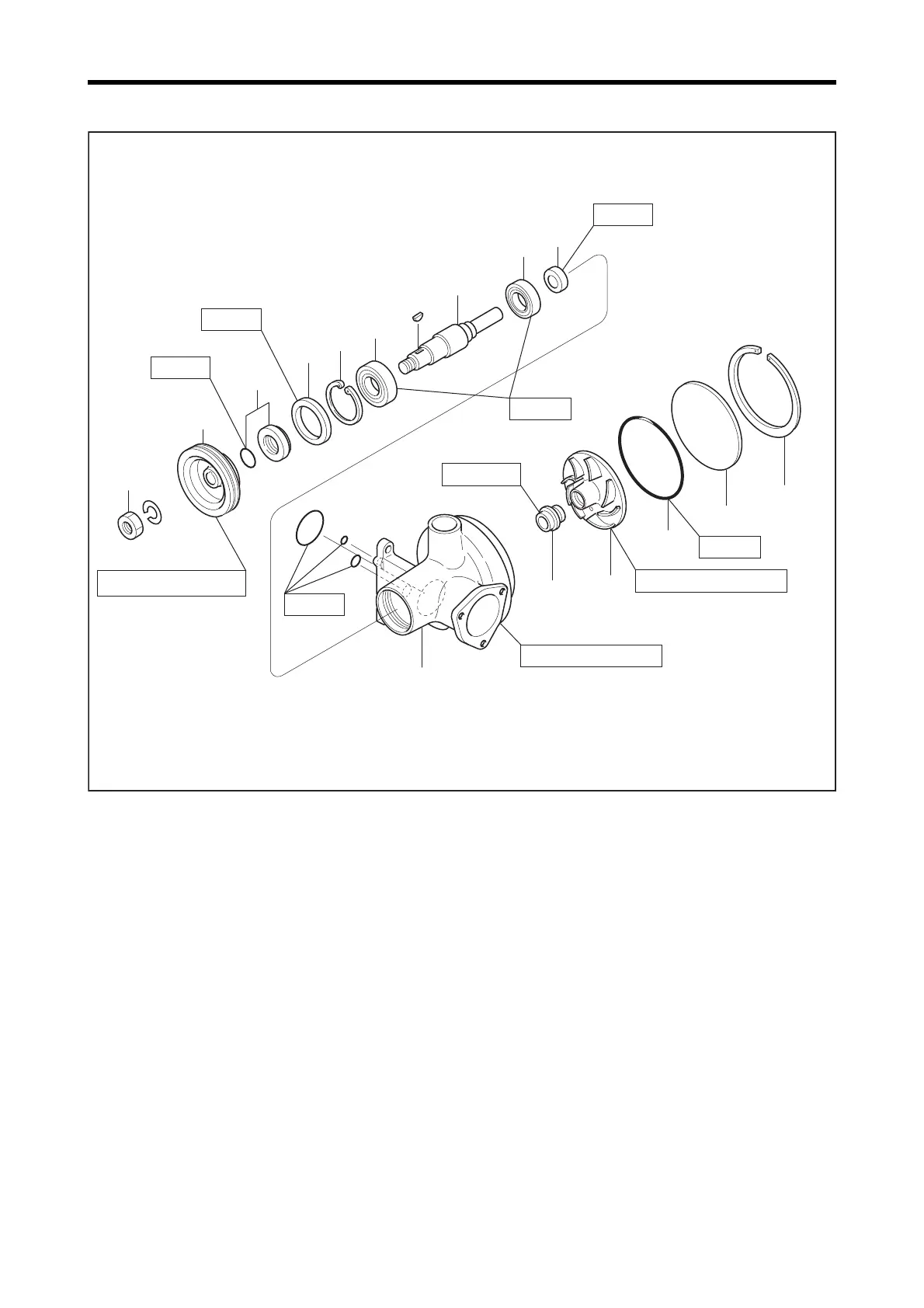

2.5 Water Pump - Disassemble and Inspect
Water Pump - Disassemble and Inspect
Belt groove wear, flaw
Flaw, wear
Rotation
Corrosion, crack, flaw
Corrosion, contact flaw
1
2
3
4
12
15
5
6
7
8
9
10
11
13
14
Replace
Replace
Replace
Replace
Replace
Disassembling Sequence
1 Snap ring
2 Cover
3 O-ring
4 Impeller
5 Nut
6 Water pump pulley
7 Spacer, O-ring
8 Oil seal
9 Snap ring
10 Bearing
11 Water pump shaft
12 Unit seal
13 Bearing
14 Oil seal
15 Pump case (Approx 15 kg [33 lb])
