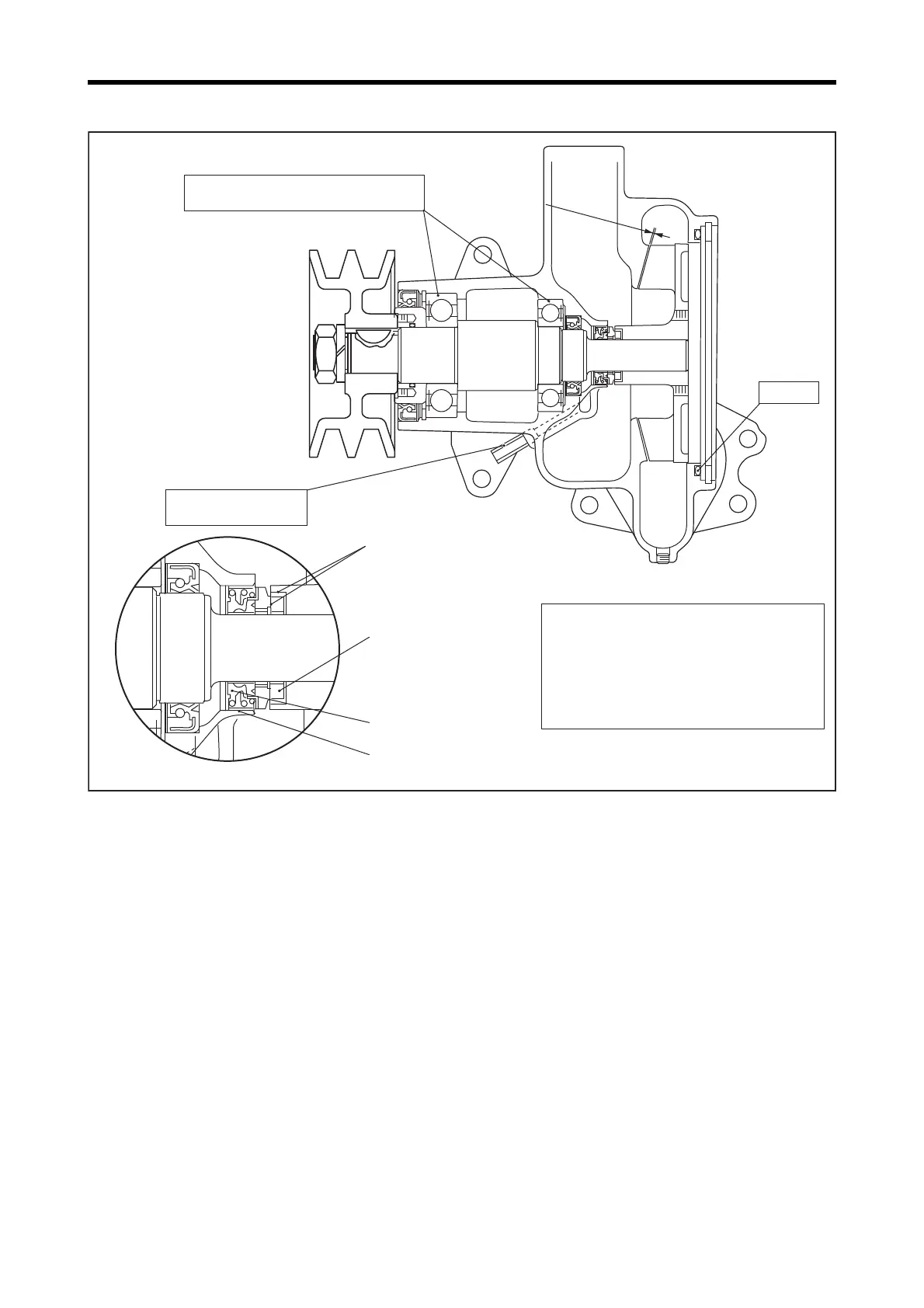

22.5 ± 2.25 N·m
{2.29 ± 0.23 kgf·m}
[16.56 ± 1.66 lbf·ft]
Apply LOCTITE 271
on the screw for pipe.
Replace
Apply LLC to the floating seat and sliding
surface when press-fitting the unit seal
(rotating side) to the impeller.
Apply sealant (ThreeBond 1102) to the
outer circumference of unit seal (fixing side)
Apply engine oil to the oil seal lip, and fit it
with the end of case face.
Orient it so that its shield plate side is
on the oil seal side when installing.
0.72 ± 0.58 mm 0.72 ± 0.58 mm
[0.0283 ± 0.0228 in.][0.0283 ± 0.0228 in.]
0.72 ± 0.58 mm
[0.0283 ± 0.0228 in.]
Unit seal (rotation side)
Unit seal (stationary side)
Application of sealant
Application of LLC
To Next Page
